Description

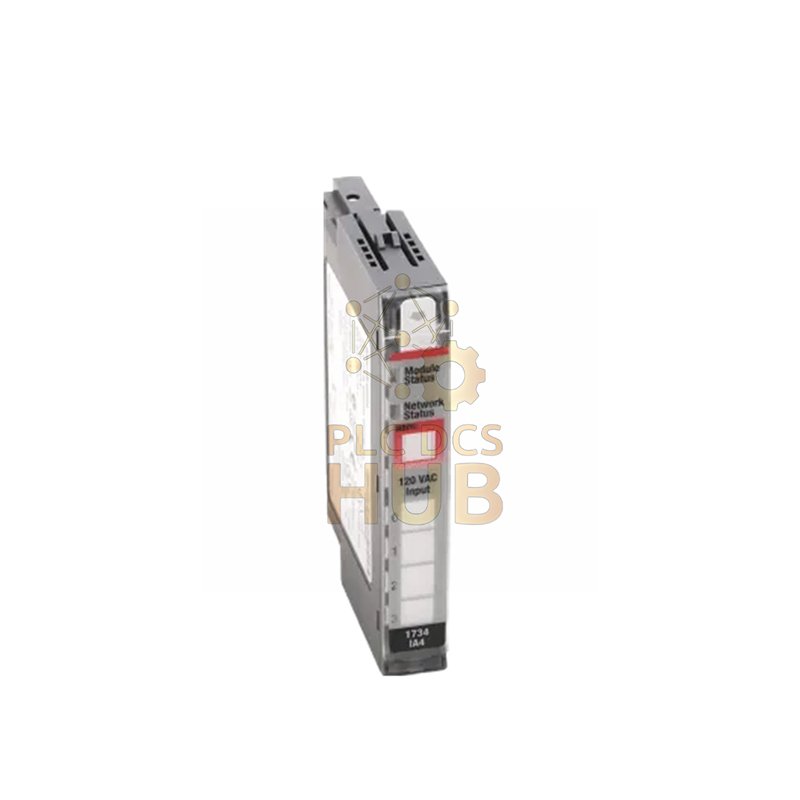

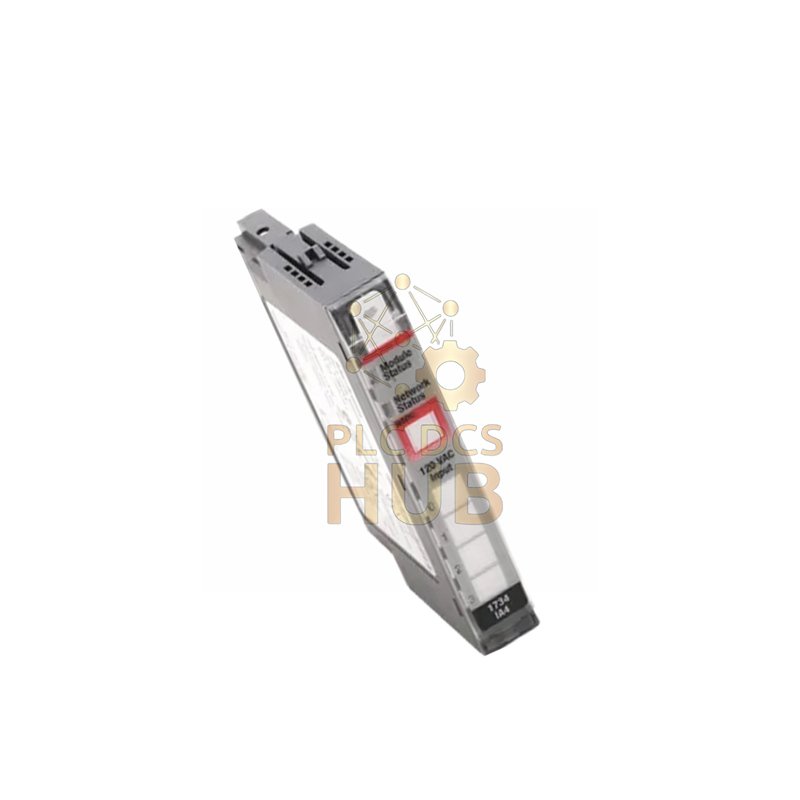

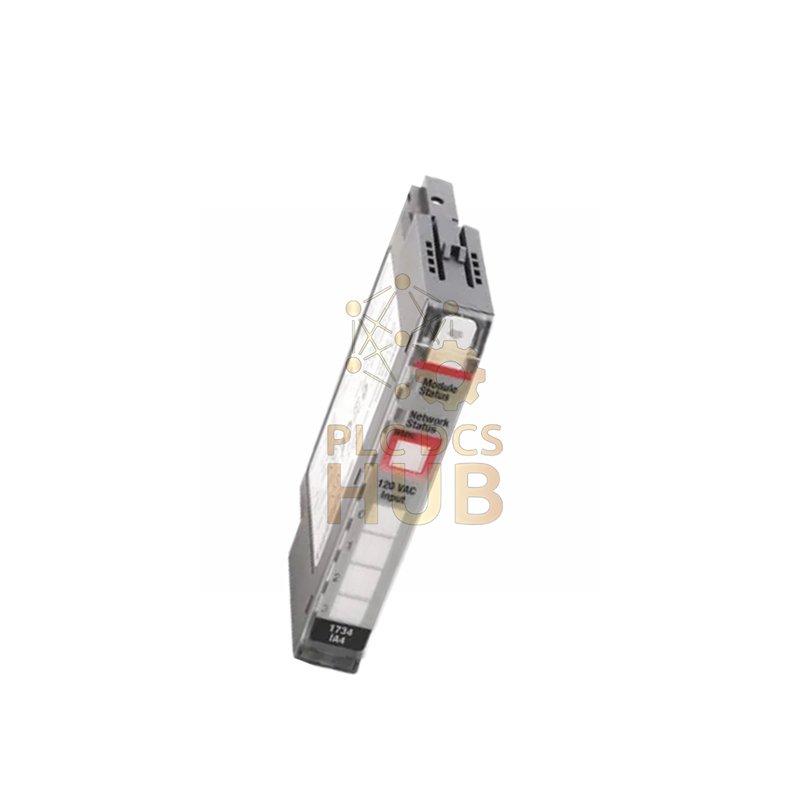

Allen-Bradley 1734-IA4 POINT I/O AC Input Module
Connect high-voltage devices to your control system with the Allen-Bradley 1734-IA4 module. This 120V AC input module is built for the POINT I/O system. It has four input channels. It is perfect for factory automation and machine control.
Technical Specifications
- Brand: Allen-Bradley
- Model: 1734-IA4
- Series: POINT I/O
- Type: 120V AC Input Module
- Number of Inputs: 4 Channels
- Input Voltage: 120V AC Nominal (85-132V AC Range)
- Frequency: 47-63 Hz
- On-State Voltage: 65V AC (Min) – 132V AC (Max)
- Current Draw: 75 mA @ 5V DC
- Power Dissipation: 0.50 W
- Weight: 30.9 g (1.09 oz)
- Dimensions: 2.21″ x 0.47″ x 2.97″
- Wiring Base: 1734-TB, 1734-TBS, 1734-TOP, 1734-TOPS
Installation Guide
Snap the module onto a compatible terminal base. Connect your 120V AC field devices to the terminals. Apply power. The status LEDs will show the input state.
- Need the full wiring diagram and setup guide? Download the complete manual here.
FAQ
What voltage does the 1734-IA4 module use?
It uses 120V AC for its input signals.
How many devices can I connect?
You can connect up to four devices, one to each input channel.
What is the minimum voltage to turn an input ON?
The input will turn ON at 65V AC or higher.
Does it need an external power supply?
Yes, it requires an 85-132V AC external supply for the field side.
What do the LED lights mean?
Each channel has a light that turns on when the input signal is active.
Shipping & Warranty
We ship worldwide using FedEx, UPS, and DHL. This product includes a 12-month warranty.
