Description

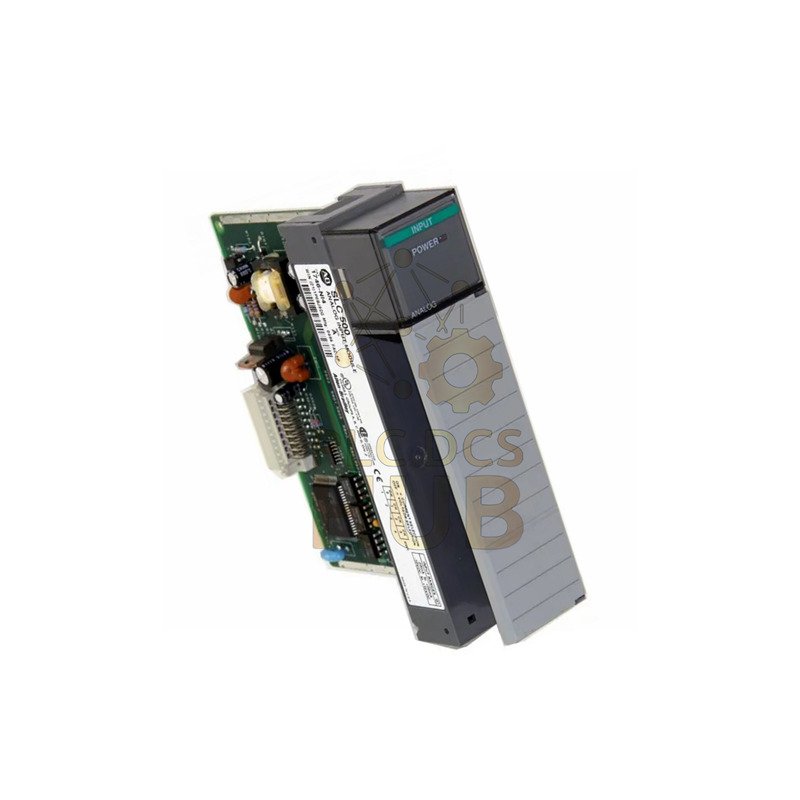

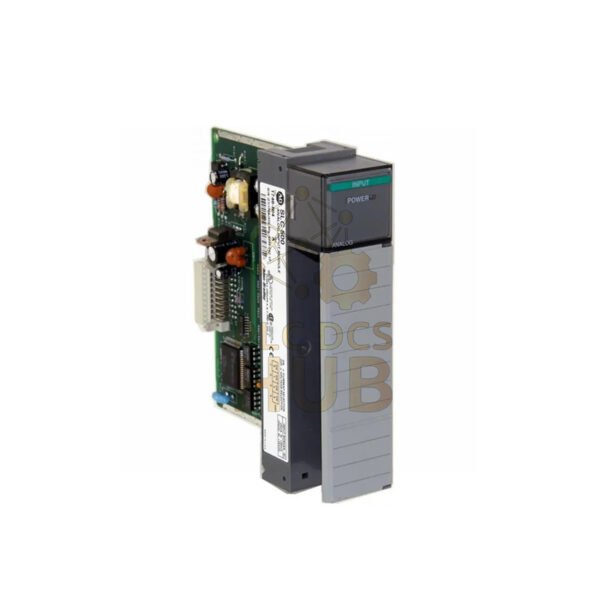

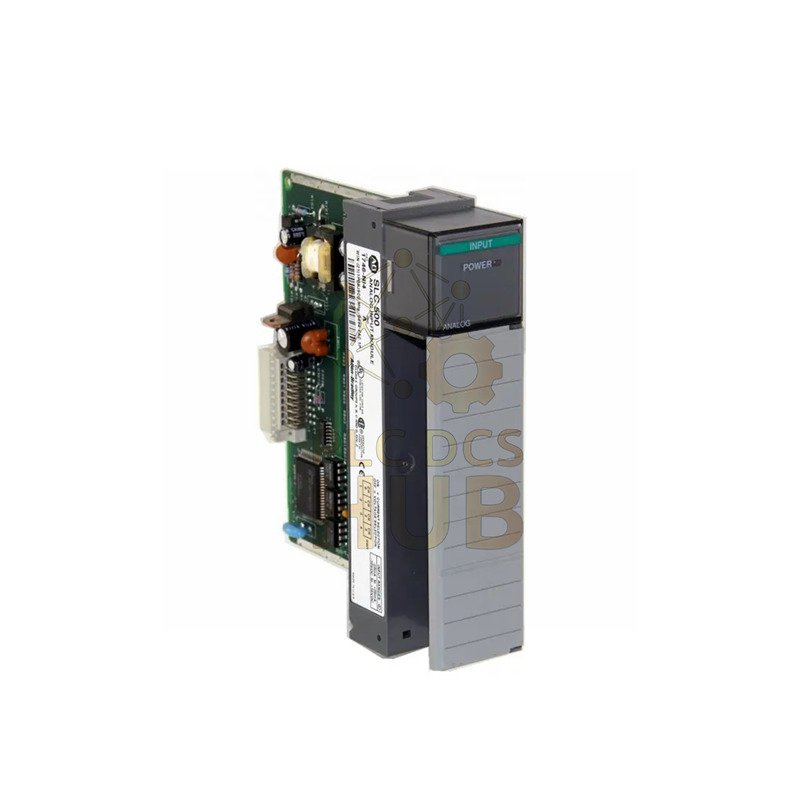

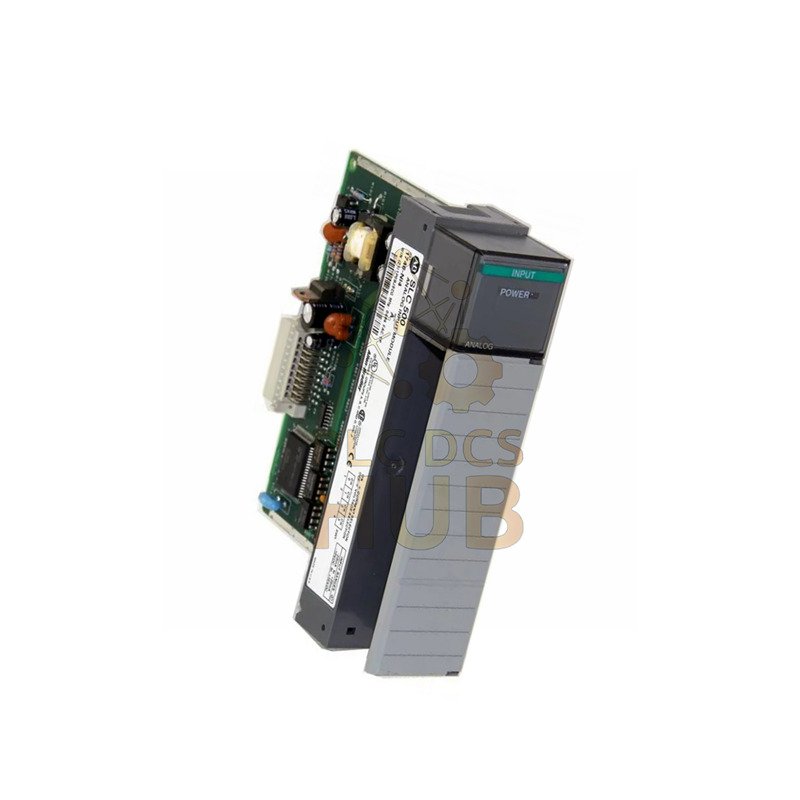

Allen-Bradley 1746-NO8V: 8-Channel Analog Output Module
High-Density Voltage Output Control
The Allen-Bradley 1746-NO8V provides eight precise voltage outputs for your SLC 500 system. It delivers signals for controlling valves, drives, and other devices. This 1746-NO8V module offers excellent accuracy and fast update times. It fits in one slot and supports multiple voltage ranges.
Key Technical Specifications
Brand: Allen-Bradley
Model: 1746-NO8V
Type: 8-Channel Analog Output
Output Ranges: ±10V, ±10.25V, 0-10V, 0-5V, 1-5V DC
Resolution: 16-bit (320 µV per count)
Accuracy: 0.1% at 25°C / 0.2% at 60°C
Update Time: 540 µs (all 8 channels)
Step Response: 1 ms (0-95% full scale)
Max Load Current: 10 mA per channel
Load Impedance: ≥1 kΩ
Output Impedance: <1 Ω
Isolation: 500V DC (field to backplane)
Backplane Power: 5V DC, 120 mA / 24V DC, 160 mA
Operating Temp: 0 to 60°C (32 to 140°F)
Data Formats: Engineering units, PID scaled, proportional counts
Certifications: cUL, CE, Class I Div 2
12 Month Warranty
We guarantee this 1746-NO8V module for one full year. It covers any material or workmanship defects. We provide quick repair or replacement service. We ship worldwide using FedEx, UPS, and DHL.
Download Installation Guide
- Learn wiring for eight output channels.
- Understand jumper settings for power source.
- Get configuration steps for all voltage ranges.
- Find programming examples for process control.
Download SLC 500 Hardware Manual Here
Important Technical Questions
- What is the difference between voltage ranges?
You can choose ±10V for bipolar control, 0-10V for unipolar, or 1-5V for live zero signals. - How do I select the power source?
Use jumper J4 to choose between backplane power (RACK) or external 24V DC power (EXT). - Can I set different ranges per channel?
Yes. Each channel can be independently configured for any of the five voltage ranges. - What is the over-range capability?
It can output up to ±10.25V, providing 2.5% over-range for special applications. - How does it handle fault conditions?
You can set output behavior on faults: reset to zero, hold last value, or jump to a preset value.
