Description

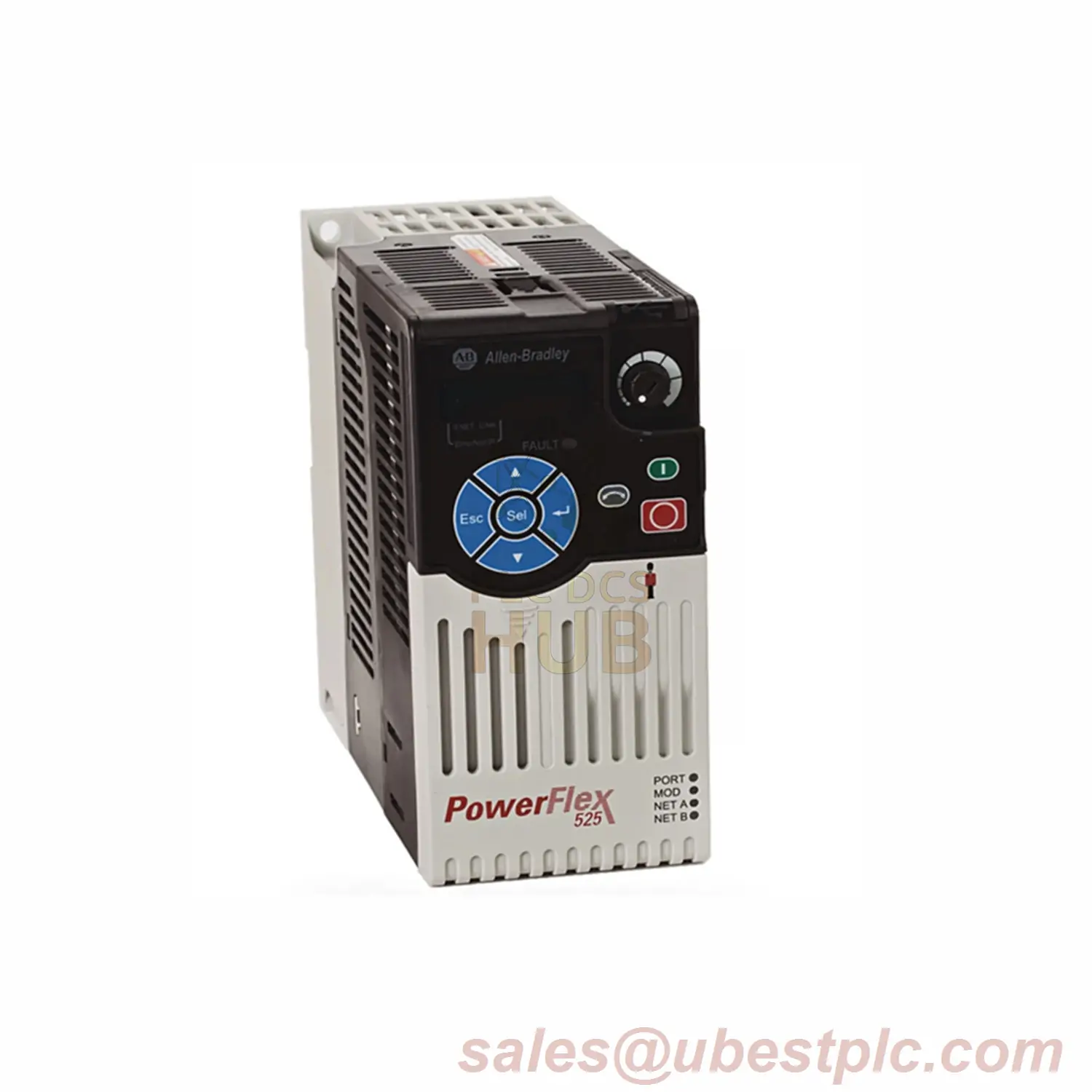

Allen-Bradley 25B-E6P6N104 PowerFlex 525 Drive – 5HP, 600V, 6.6A
Boost your motor control with the 25B-E6P6N104 – a high-performance AC drive for pumps, fans, and conveyors. Download the manual here for full setup details.
Key Features
- Power: 5HP (3.7kW) heavy-duty operation
- Voltage: 600V AC input, 0-575V AC output
- Current: 6.6A max output
- Control: Sensorless vector, V/Hz, PM motor control
- Safety: Safe-Torque Off (STO) built-in
- Mounting: Panel mount (Frame B)
Technical Specs
| Brand | Allen-Bradley |
| Model | 25B-E6P6N104 |
| Input Voltage | 446-660V AC, 3-phase |
| Output Frequency | 0-500Hz |
| Overload Capacity | 150% for 60 sec, 200% for 3 sec |
| Communication | EtherNet/IP, RS485, USB |
| Operating Temp | -10°C to 50°C (14°F to 122°F) |
Why Choose the 25B-E6P6N104?
- Works with Permanent Magnet motors to save energy
- 7 digital inputs and 2 analog inputs for easy setup
- Fits CompactLogix and ControlLogix systems
- Zero stacking design saves space
FAQ
1. Can this drive work with single-phase power?
No, the 25B-E6P6N104 needs 3-phase power (446-660V AC).
2. How do I reset a fault on the drive?
Use the HIM module or software to clear faults.
3. What cables work with the RS485 port?
Use shielded twisted-pair cables for best results.
4. Can I add an EMC filter later?
Yes, but you must install it externally.
5. Does it support encoder feedback?
Yes, with an optional encoder card.
Warranty & Shipping
12-month warranty included. Ships fast via FedEx, UPS, or DHL.
