Description

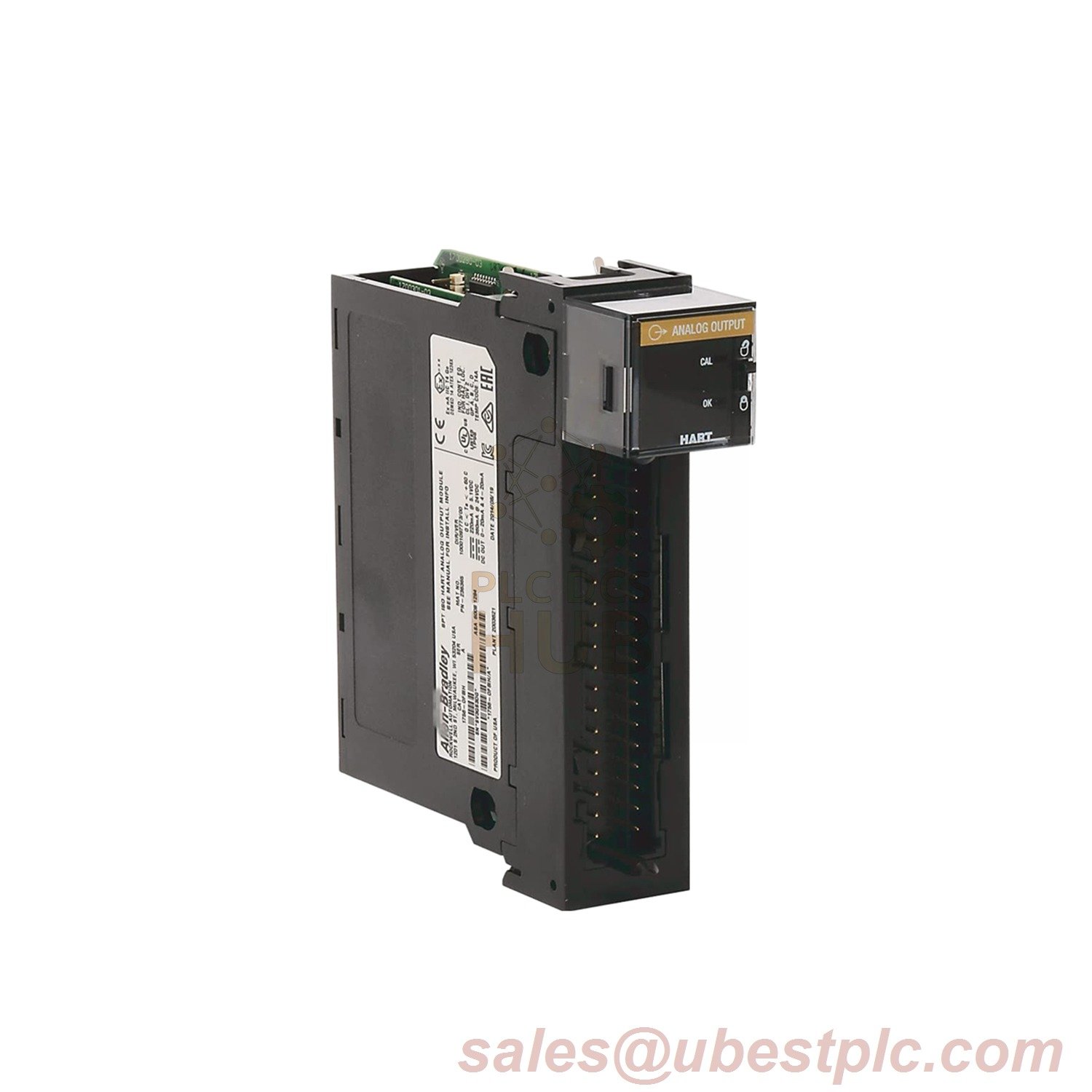

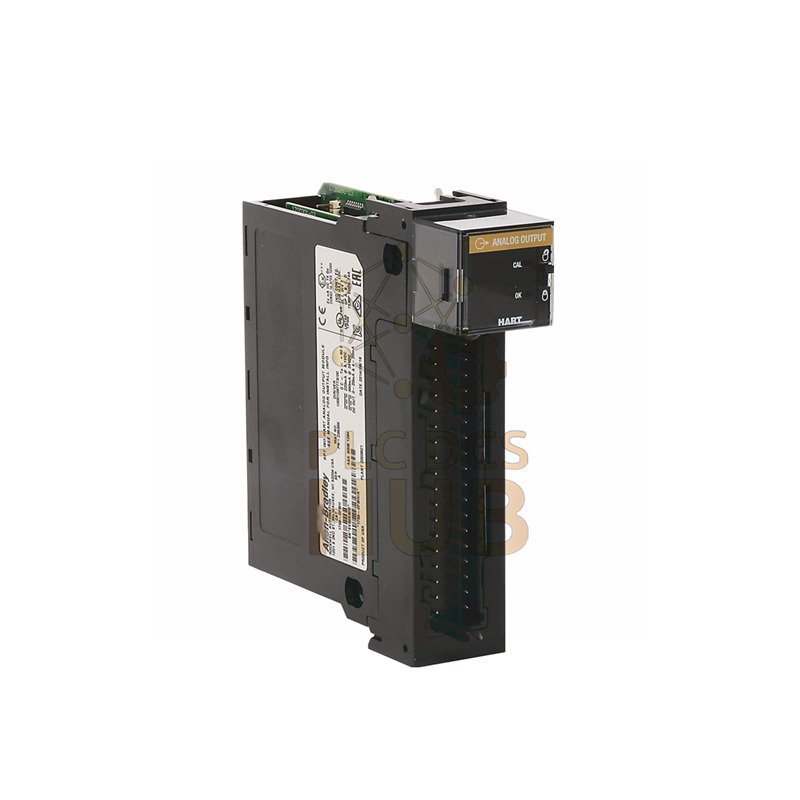

Allen-Bradley 1756-OF8K ControlLogix Analog Output Module

Upgrade your control system with the Allen-Bradley 1756-OF8K. This versatile 1756-OF8K module provides eight analog outputs for precise process control. It offers both voltage and current signals with high resolution and stability.

Technical Specifications

Brand: Allen-Bradley
Model: 1756-OF8K
Series: ControlLogix
Type: Analog Output Module
Channels: 8 outputs
Voltage Output: -10.4 to +10.4V
Current Output: 0-21mA
Resolution: 15 bits
Accuracy: High stability over temperature
Response Time: Fast output response
Sample Rate: 1ms floating point values
CIPSync Enabled: Precision time protocol support
Terminal Blocks: 1756-TBNH, 1756-TBS6H
Operating Temp: 0 to 60°C
Protection: Conformal coated
LED Indicators: Channel status and fault

Professional Questions Answered

• What signals can this module output?
  It provides both voltage (-10.4 to +10.4V) and current (0-21mA) output signals.
• What is the advantage of conformal coating?
  The coating protects against moisture, dust, and chemicals in harsh industrial environments.
• Does this module require calibration?
  No, it maintains high accuracy without needing field calibration.
• What is CIPSync support?
  It allows precise timestamping for synchronized operations across your control system.
• Can I use this in motion control applications?
  Yes, the fast 1ms sample rate and high resolution make it suitable for precise motion control.

Package & Support

• One 1756-OF8K analog output module
• 12-month performance warranty
• International shipping via FedEx, UPS, DHL

Resources & Documentation

• Installation instructions
• Configuration guide
• Application examples
• Download complete technical manual here
