Description

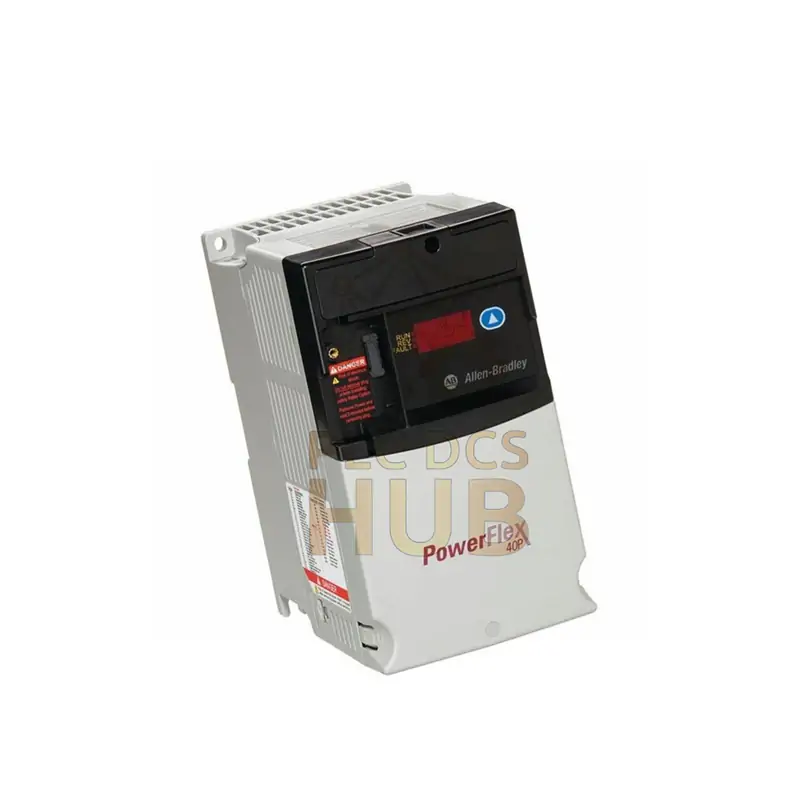

Allen-Bradley 22D-B017F104 PowerFlex 40P Drive – 5HP Motor Control
Perfect for industrial automation: The 22D-B017F104 controls 3-phase motors up to 5HP with precision speed adjustment. Works with 240V power systems.
Key Features
- Controls 5HP motors (17.5A output)
- Works with 240V AC 3-phase power
- Compact Frame Size B design
- Easy-to-read display with fault reset
- Built-in motor protection
Technical Details
- Input: 180-264V AC, 50/60Hz
- Output: 17.5A, 0-500Hz
- Size: 180x100x144mm (7.1×3.9×5.7in)
- Weight: 2.3kg (5.1lbs)
- Protection: IP20 (NEMA Open)
- Temperature: -10°C to 50°C
- Overload: 150% for 1 minute
What’s in the Box
- 22D-B017F104 drive unit
- Installation guide
- Mounting hardware
Warranty
We provide 12-month coverage for defects. Contact us for support.
Shipping
Fast delivery via FedEx, UPS or DHL.
Expert FAQs
- Can this drive work with single-phase power?
No, it needs 3-phase power input. - What motors work with this drive?
3-phase induction motors up to 5HP. - How do I reset faults?
Use the reset button on the display. - Is braking resistor included?
No, you need to buy it separately. - Can I mount this outdoors?
No, IP20 rating is for indoor use only.
Compare Similar Models
- 22D-D024F104 – Higher 24A capacity
- 22D-D024H204 – NEMA 4X waterproof version
