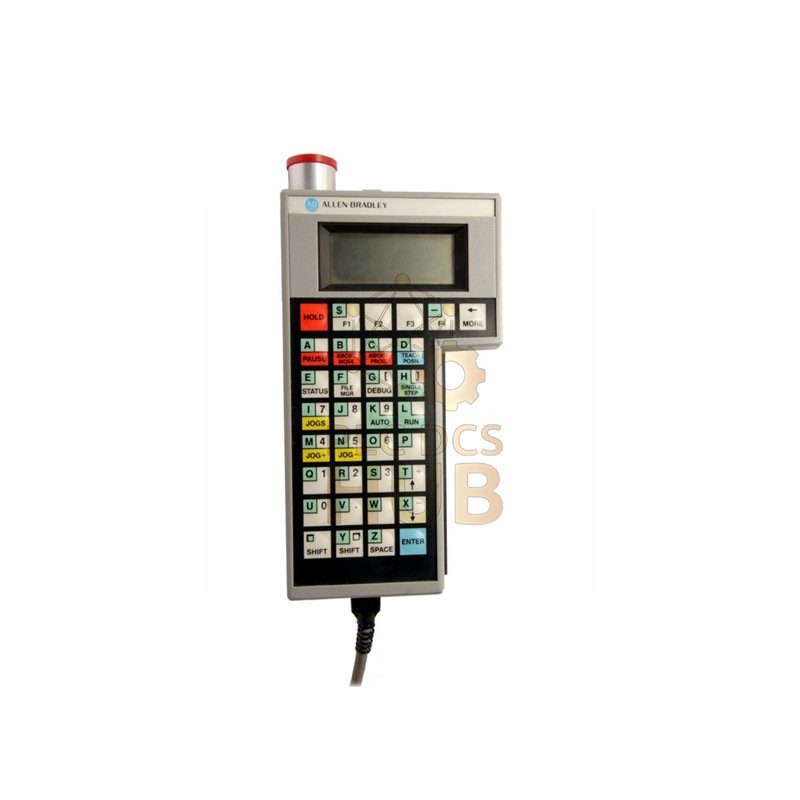

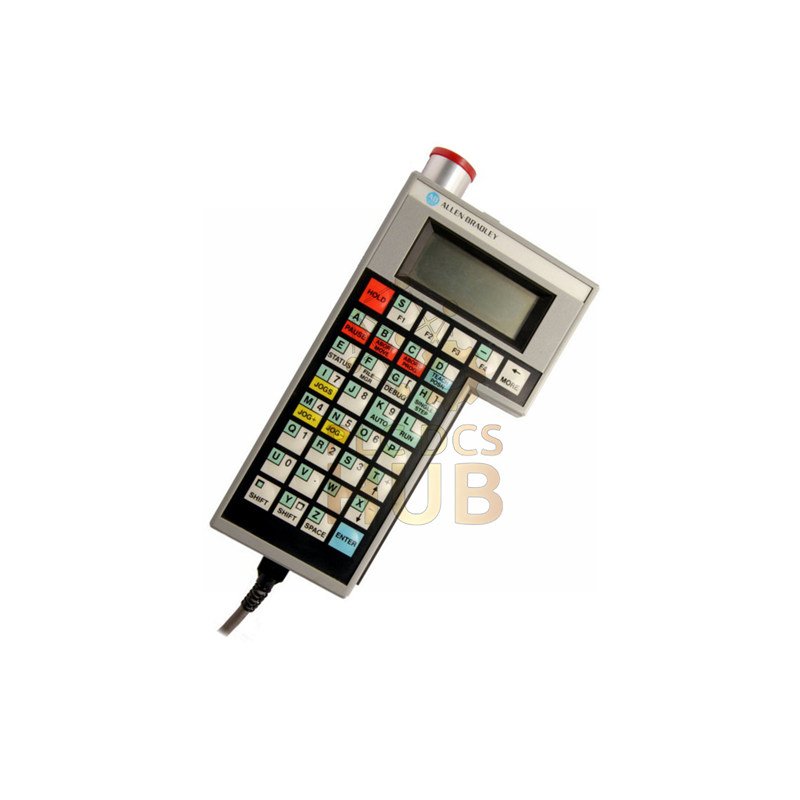

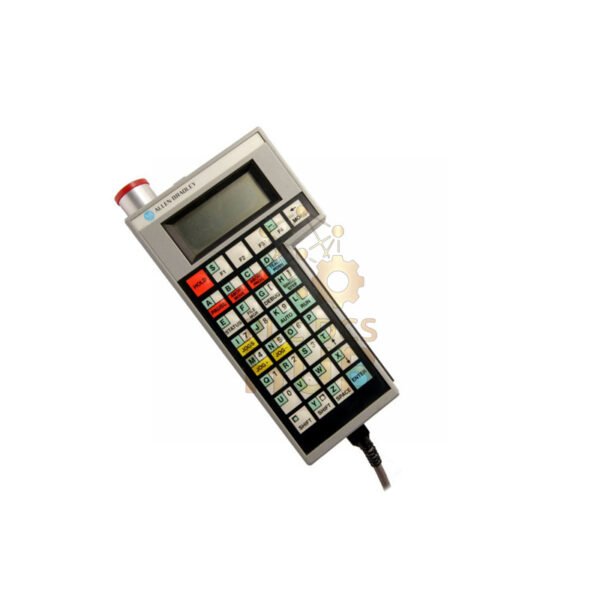

Allen-Bradley 1771-HD Handheld Programming Terminal
The Allen-Bradley 1771-HD is a portable programming tool for PLC-5 control systems. This handheld terminal lets technicians program and troubleshoot from up to 25 feet away. It features a clear display and easy-to-use keys for efficient operation.
Technical Specifications
Brand: Allen-Bradley
Model: 1771-HD
Series: PLC-5
Type: Handheld Teach Pendant
Display: 4 lines x 16 characters
Cable Length: 25 feet (8 meters)
Connector Type: 9-pin RS-232
Power Requirements: 120V AC / 240V AC
Update Rate: 2 ms per axis
Operating Temperature: 0 to 60°C
Humidity Range: 5-95% non-condensing
Input Frequency: 250 kHz max
Output Signal: ±10V DC analog
Dimensions: 3.5 x 6.5 x 2.0 inches
Weight: Lightweight, portable design
How It Works
The 1771-HD connects to your PLC-5 controller using a long RS-232 cable. This lets you work safely away from machinery while still having full control. You can change system parameters, view status information, and troubleshoot issues directly from the handheld unit.
Warranty & Shipping
We provide a 12-month warranty on this product
We ship worldwide using FedEx, UPS, and DHL
Frequently Asked Questions
- Q: What controllers work with the 1771-HD terminal?
A: It works with PLC-5 systems featuring IMC 120 motion controller modules. - Q: How long is the connection cable?
A: The included cable is 25 feet (8 meters) long for safe remote operation. - Q: What types of keys does the terminal have?
A: It features both hard keys with fixed functions and soft keys that change with each menu. - Q: Can I use this terminal without special training?
A: Basic PLC knowledge is helpful, but the menu system is designed for easy use. - Q: What power voltages does it support?
A: It works with both 120V AC and 240V AC power sources.
Compare With Other Products
The 1771-HD is a programming terminal, while other 1771 modules like the 1771-ID Input Module or 1771-ID01 Digital Input handle different functions in control systems.
