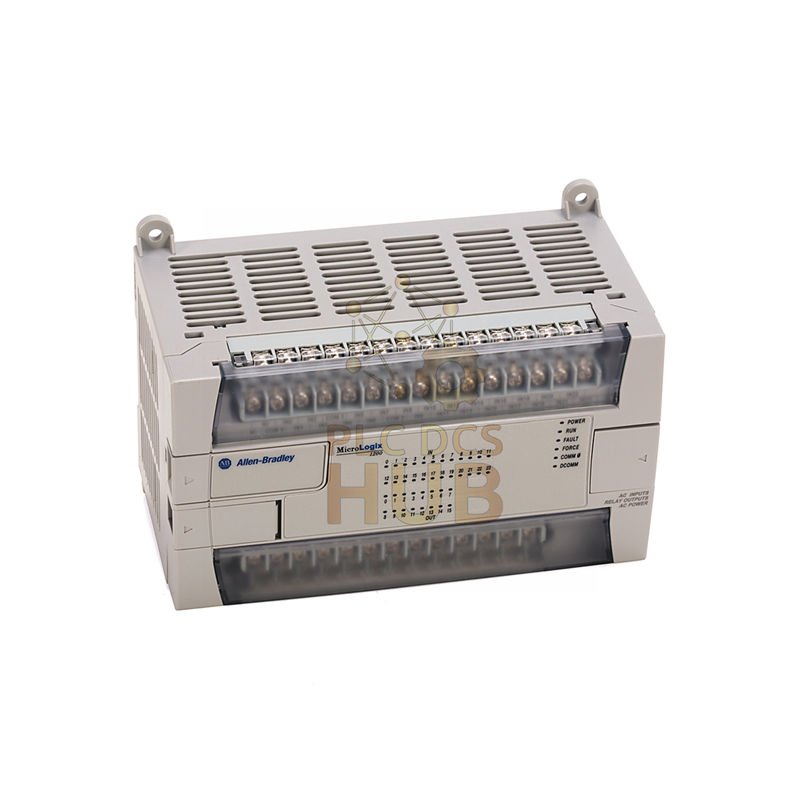

Allen-Bradley 1762-L40BWAR: MicroLogix 1200 Programmable Controller
The Allen-Bradley 1762-L40BWAR from Rockwell Automation is a high-performance MicroLogix 1200 controller with comprehensive I/O capabilities. It combines 24 DC inputs and 16 relay outputs in a compact design for diverse industrial applications.
Technical Specifications
- Brand & Manufacturer: Allen-Bradley / Rockwell Automation
- Model: 1762-L40BWAR
- Series: MicroLogix 1200
- Controller Type: Programmable Logic Controller
- Input Power: 100-240V AC (47-63 Hz)
- Digital Inputs: 20 standard + 4 high-speed @ 24V DC
- Input Response: 0-1 kHz (high-speed inputs 0-3)
- Relay Outputs: 16 channels (Form C contacts)
- Output Rating: 2A @ 240V AC / 2A @ 125V DC
- Communication Ports: 2x 8-pin mini-DIN (programming & communication)
- Protocol Support: DF1, DH-485, ASCII, MODBUS Master/Slave
- Power Consumption: 82 VA maximum
- Sensor Power: 24V DC @ 400 mA maximum
- Mechanical Life: 20,000,000 cycles (relay outputs)
- Operating Temperature: 0°C to 55°C (32°F to 131°F)
- Dimensions: 90 x 160 x 87 mm (3.54 x 6.30 x 3.43 in)
- Certifications: UL 508, CSA C22.2, CE, RCM, EAC
Packaging Contents
- One 1762-L40BWAR MicroLogix 1200 controller
- Comprehensive installation and programming documentation
- Express shipping via FedEx, UPS, or DHL available
- All products include 12-month performance warranty
Frequently Asked Questions
- What is the maximum load for each relay output?
Each relay output handles 2A at 240V AC or 125V DC resistive loads. - Can I use both communication ports at the same time?
Yes, one port can program while the other handles HMI communication. - What types of applications need high-speed inputs?
High-speed counting, rapid event detection, and encoder applications. - Is this controller suitable for hazardous locations?
It carries Class I, Division 2 certification for hazardous areas. - What cable types work with the mini-DIN ports?
Use Allen-Bradley 1761-CBL-PM02 or equivalent serial programming cables.
