Description

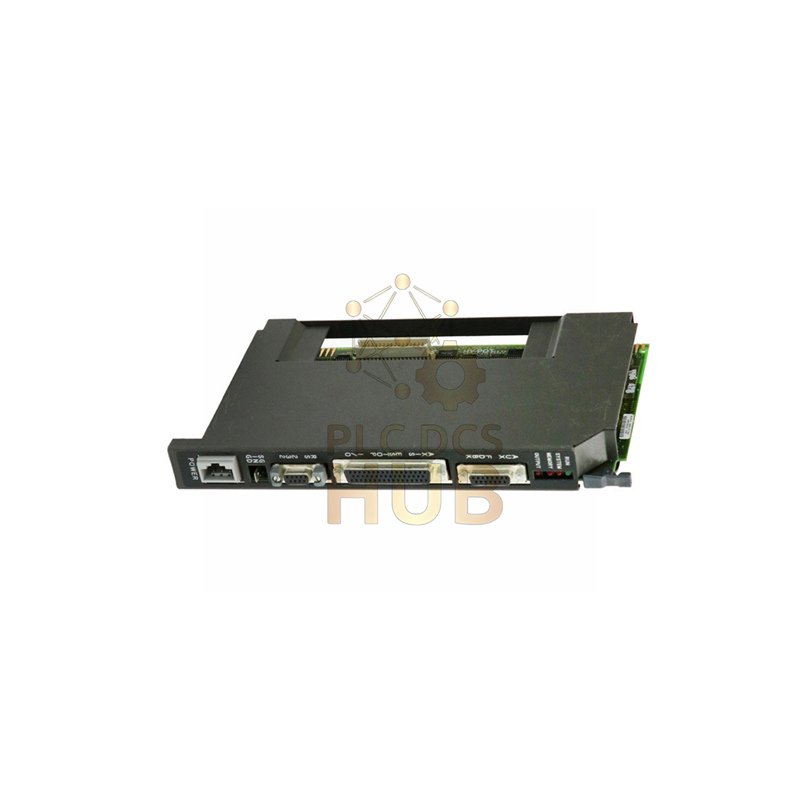

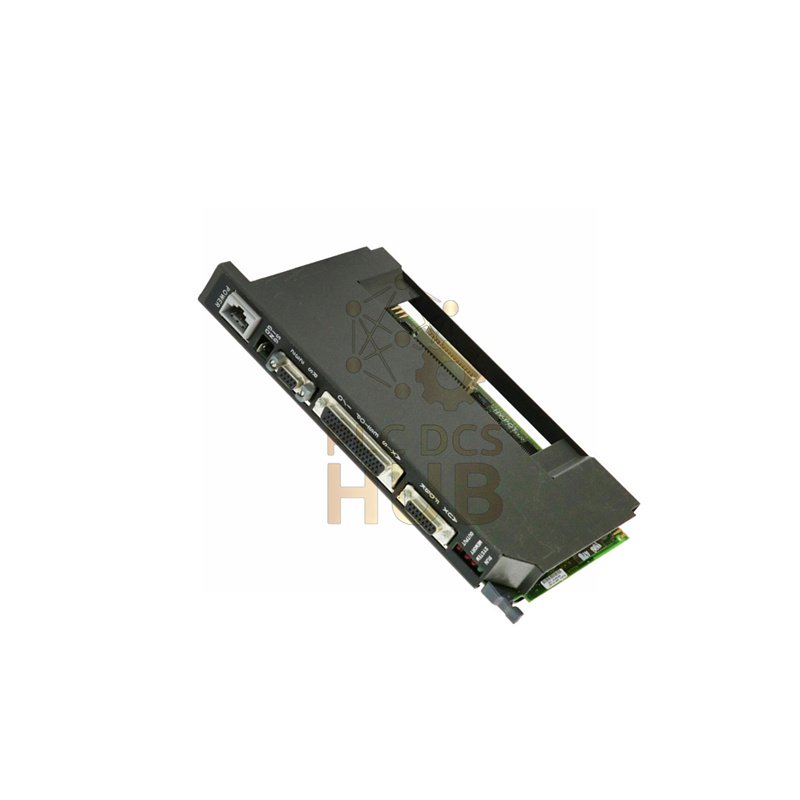

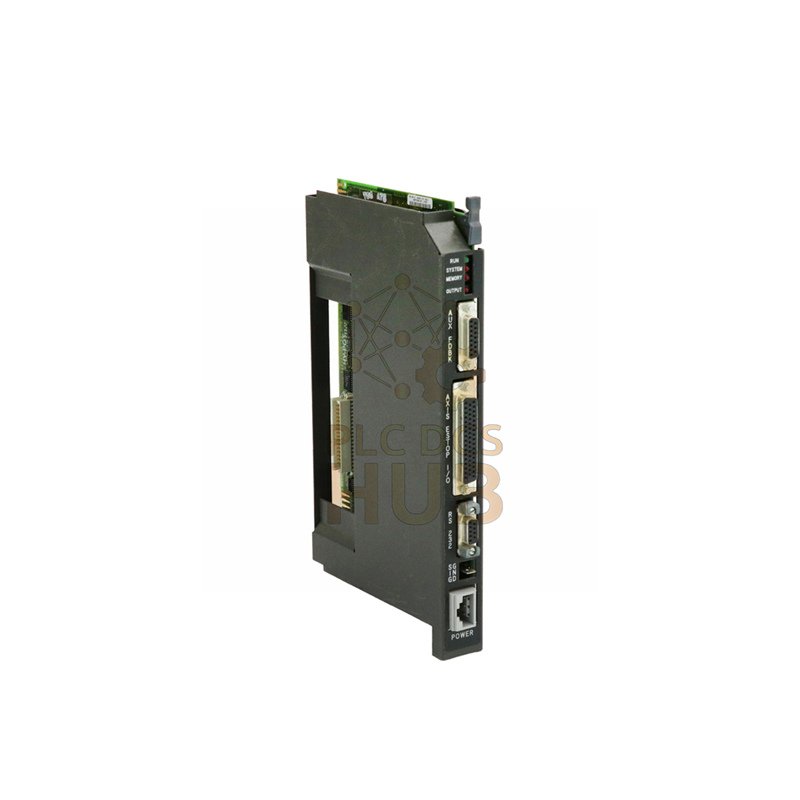

Allen-Bradley 1771-HSN Servo Controller Module
The Allen-Bradley 1771-HSN is a versatile servo controller for PLC-5 motion control systems. This module requires a separate memory cartridge for operation, providing flexibility for different applications. It delivers precise motor control for industrial automation tasks.
Technical Specifications
- Brand: Allen-Bradley
- Model: 1771-HSN
- Series: PLC-5 / IMC 120
- Type: Servo Controller Module
- Memory Required: 1771-HM or 1771-HMA cartridge
- Input Frequency: 250 kHz maximum
- Output Signal: ±10V DC analog
- Update Speed: 2 ms per axis
- Backplane Current: 1.7 Amps
- Fuse Voltage: 120V
- Operating Temp: 0 to 60°C (32 to 140°F)
- Humidity Range: 5-95% non-condensing
- Dimensions: 3.5 x 6.5 x 2.0 inches
- Weight: 2.2 lbs
- Chassis Slots: 1 slot required
- Certifications: UL, CSA
Required Accessories
This module needs these parts to work:
• 1771-HM or 1771-HMA memory cartridge
• Proper power supply unit
• Servo motors and feedback devices
• Connection cables and wiring arms
Warranty & Shipping
We provide a 12-month warranty on this product
We ship worldwide using FedEx, UPS, and DHL
Frequently Asked Questions
- Q: What memory cartridge does it need?
A: It requires either 1771-HM or 1771-HMA memory cartridge for operation. - Q: How many motors can it control?
A: It can control multiple servo motors depending on the configuration. - Q: Is the memory cartridge included?
A: No, the memory cartridge must be purchased separately. - Q: What temperatures can it handle?
A: It operates in temperatures from 0 to 60°C (32 to 140°F). - Q: Can I use existing wiring arms?
A: Yes, it works with 1771-WA and 1771-WB wiring arms for easy installation.
Compare With Other Products
The 1771-HSN is a motion control module, while other 1771 products like the 1771-ASB RIO Adapter or 1771-BA Battery serve different purposes in industrial control systems.
