Description
Overview

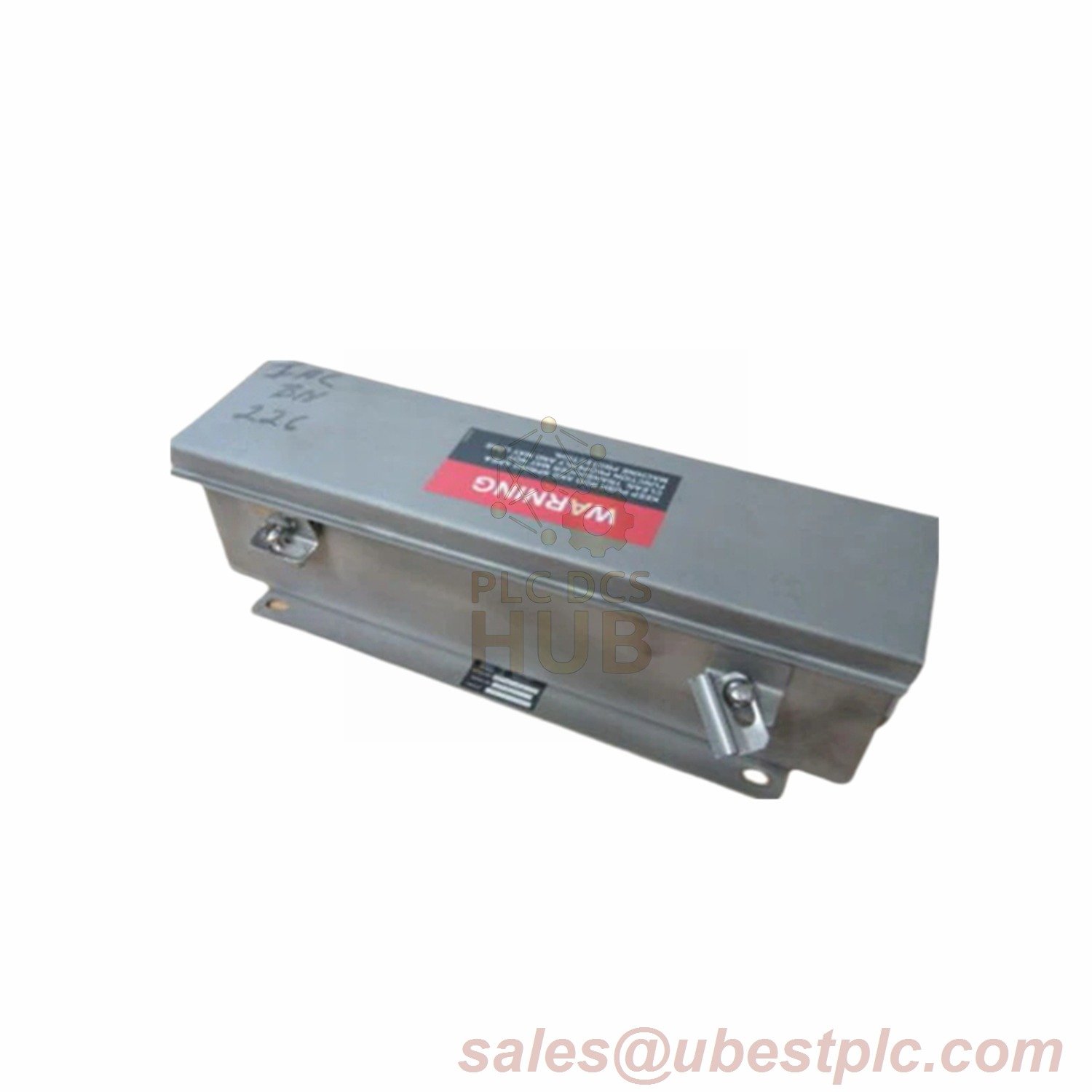

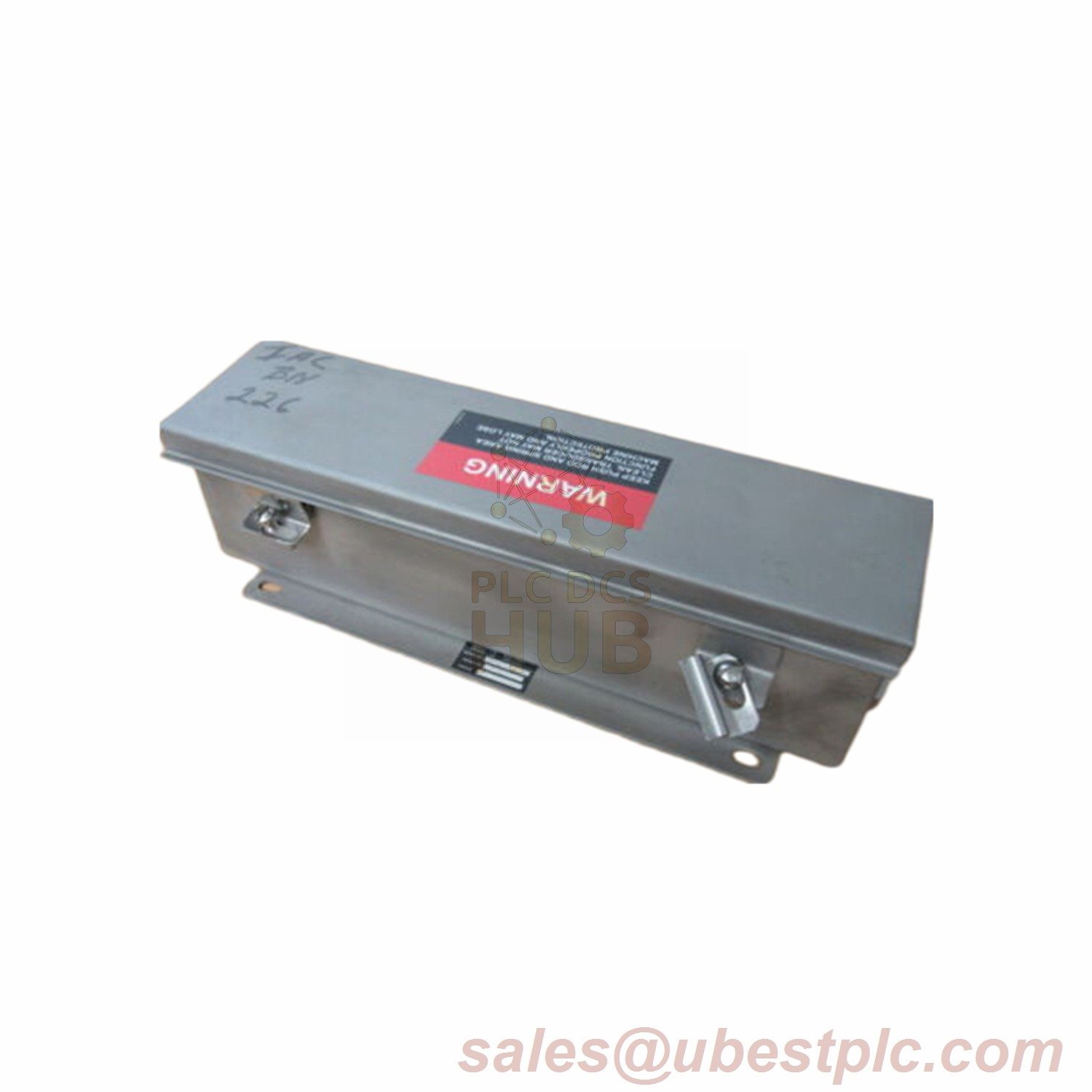

The Bently Nevada 24765-01-01 Case Expansion Transducer is engineered for precise measurements, providing reliable performance across a wide range of industrial applications. Its rugged construction and weather-resistant features make it ideal for use in harsh environments. Designed to offer high sensitivity and a broad frequency response, it is perfect for detecting even the smallest changes in case expansion.
Technical Data
| Parameter | Specification |
|---|---|
| Brand | Bently Nevada |
| Model | 24765-01-01 |
| Measurement Range | ±2.5 mm (±0.100 in) |
| Sensitivity | 50 mV/mm (1.27 V/in) |
| Frequency Response | 0-500 Hz |
| Operating Temperature | -40°C to +121°C (-40°F to +250°F) |
| Relative Humidity | 0-100% non-condensing |
| Ingress Protection | IP65 |
| Dimensions (L x W x H) | 112 mm x 50 mm x 50 mm (4.4 in x 2.0 in x 2.0 in) |
| Weight | 0.5 kg (1.1 lb) |
| Electrical Connection | Integral 5 m (16 ft) cable with weatherproof connector |
