Bently Nevada | 3300 5mm Proximity Probes | 330173-00-05-10-12-00

Description

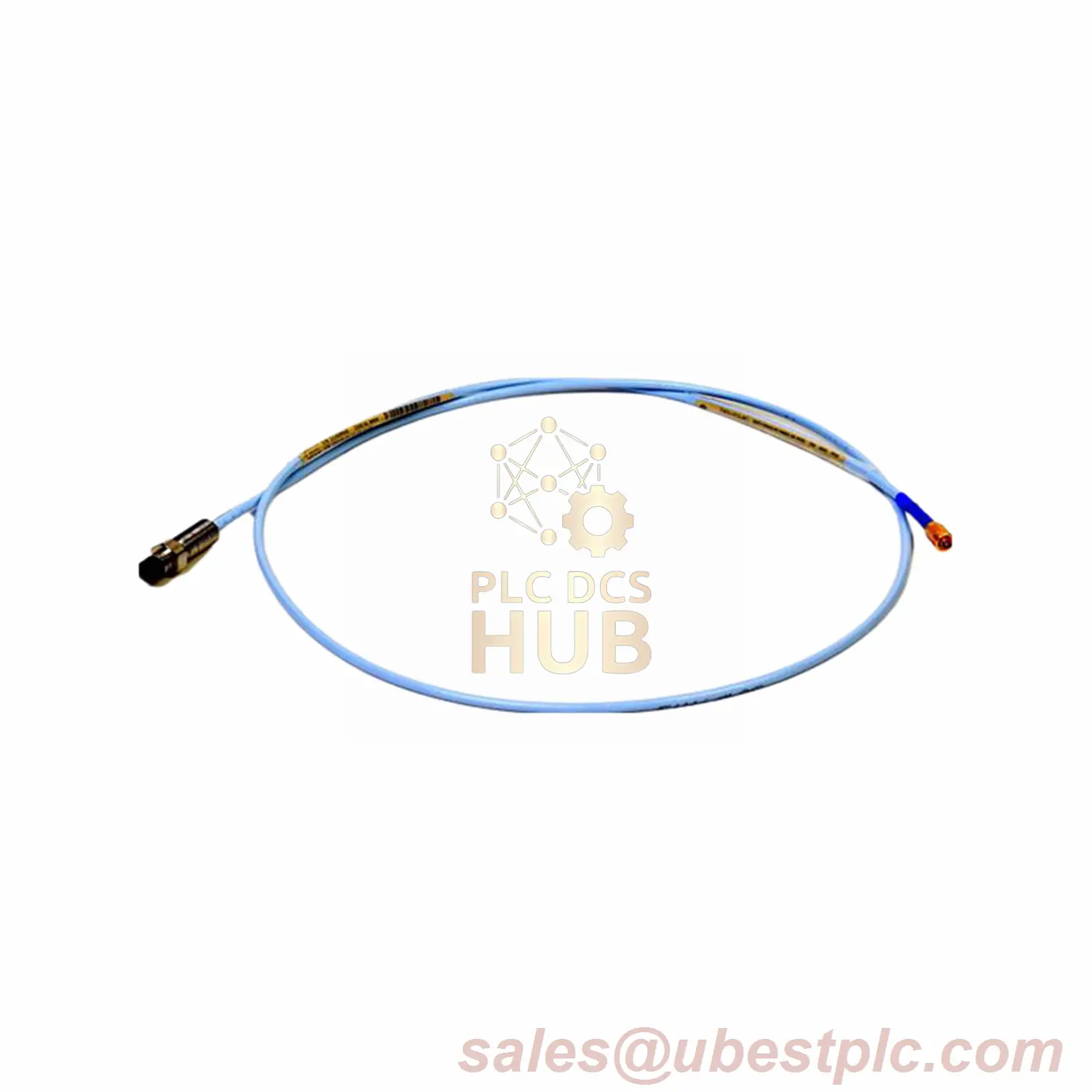

Bently Nevada 3300 5mm Proximity Probe (M8x1 Thread)

Key Features

• Compact Design: 5mm tip for tight spaces, no armor for lightweight use.
• Strong Materials: PPS tip and AISI 304 stainless steel case.
• Wide Temp Range: Works from -31°F to +351°F (Avoid below -30°F).

Technical Specs

• Brand: Bently Nevada
• Model: 330173-00-05-10-12-00 (Full Suffix Explained Below)
• Thread: M8x1
• Cable: 1.0 meter (3.3 ft) FluidLoc FEP triaxial cable
• Resistance: 7.59Ω ±0.50Ω (center to outer conductor)
• Power: -17.5 Vdc to -26 Vdc, 12 mA max
• Torque: Case: 45in·lb (max 65in·lb) | Connector: 0.42 ft·lb max
• Weight: 0.323 kg (0.71 lbs)

Suffix Breakdown

330173-00-05-10-12-00
├── 00: Unthreaded length = 0mm
├── 05: Case length = 50mm
├── 10: Cable = 1.0 meter
├── 1: ClickLoc connector
├── 2: FluidLoc cable
└── 00: No agency approval

Compare Models

Real-World Uses

• Paper mill roller alignment
• Water pump shaft monitoring
• Conveyor motor bearing checks

Warranty & Shipping

• 12-month warranty
• FedEx/UPS/DHL express
• COO available
