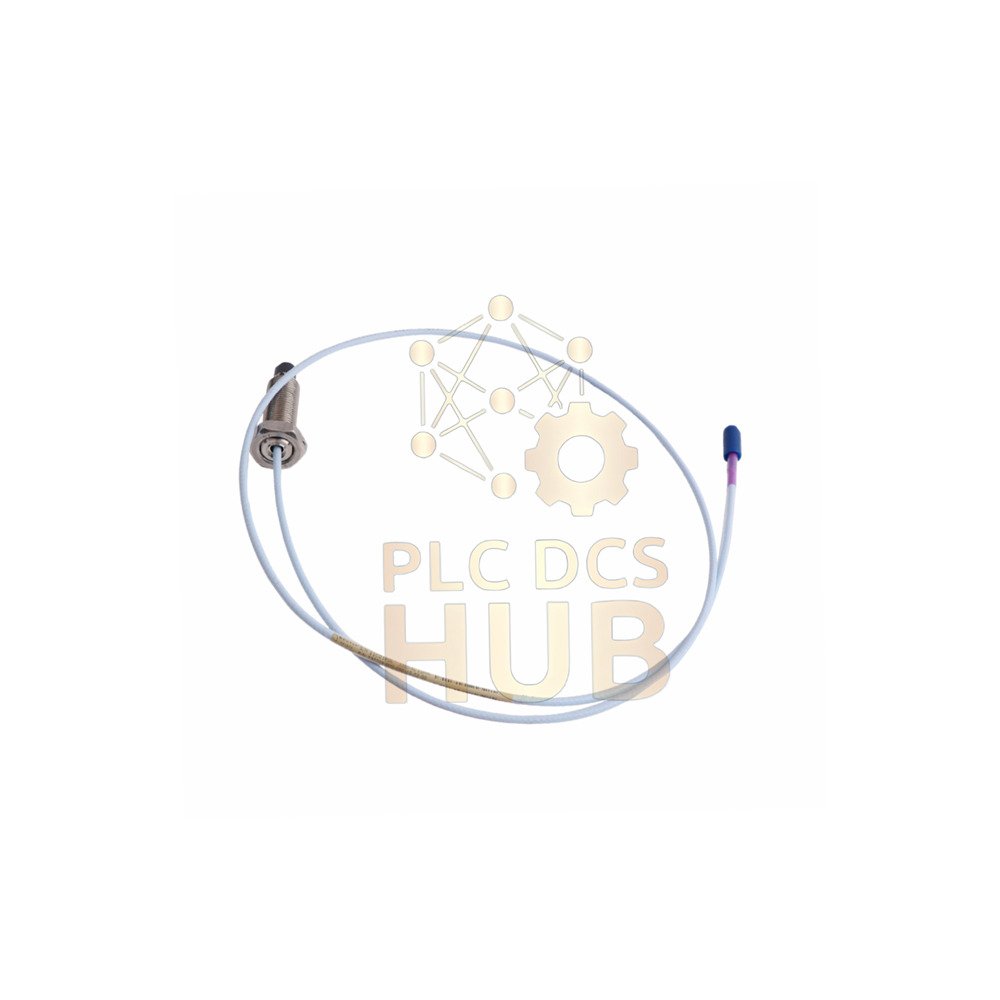

Bently Nevada 3300 XL 11 mm Probe 330709-000-080-50-01-05

Description

Product Introduction

The 3300 XL 11 mm Proximity Probes from Bently Nevada measure vibration and position. This model 330709-000-080-50-01-05 works in turbines, compressors, and pumps. It provides reliable data for machine protection. Use it with a 5 meter Proximitor Sensor only. Made in U.S.A.

Key Features

• High accuracy for shaft vibration monitoring
• Wide temperature range from -52°C to +177°C
• Strong anti-interference with 75 Ω triaxial FEP cable
• Multiple agency approvals for safety
• Easy installation with M16x1.5 thread

Technical Specifications

• Brand: Bently Nevada
• Model: 330709-000-080-50-01-05
• Type: 3300 XL 11 mm eddy current probe
• Unthreaded length: 0 mm
• Overall case length: 80 mm
• Total probe length: 5.0 meters (16.4 feet)
• Connector: Miniature coaxial ClickLoc with protector
• Cable type: Standard 75 Ω triaxial FEP
• Agency approval: Multiple (option 05)
• Probe DC resistance (center to outer): 7.2 ± 0.8 ohms
• Target diameter (flat surface): Minimum 30.5 mm (1.2 in)
• Shaft diameter: Minimum 152 mm (6.0 in)
• Probe tip material: Polyphenylene sulfide (PPS)
• Probe case material: AISI 304 stainless steel
• Case torque (max): 63.3 N•m (560 in•lb)
• Case torque (recommended): 21.1 N•m (187 in•lb)
• Connector torque (max): 0.565 N•m (5 in•lb)
• Minimum bend radius: 25.4 mm (1.0 in)
• Probe case thread: M16x1.5
• Max thread engagement: 24 mm
• Storage temperature: -52°C to +177°C
• Linear range: 2 mm (80 mils) typical
• Sensitivity: 7.87 V/mm (200 mV/mil) typical
• Resolution: Sub-micron with proper Proximitor
• Environmental tolerance: Withstands oil, water, dust

Installation Guide

• Use recommended torque 21.1 N•m for probe case.
• Do not exceed 63.3 N•m max torque.
• Tighten connector finger tight only (max 0.565 N•m).
• Keep bend radius at least 25.4 mm.
• Match probe with 5 meter Proximitor Sensor.
• Avoid temperatures below -34°C to protect seal.
• Use on shaft diameter ≥152 mm for best results.

Debugging & Maintenance Convenience

• Check DC resistance between center and outer conductor.
• Normal reading: 7.2 ± 0.8 ohms for 5m probe.
• Use Bently Nevada Proximitor for easy setup.
• Clean probe tip gently with soft cloth.
• Inspect cable for cuts or sharp bends.
• No special tools needed for normal checks.

Compatibility Notes

• Works only with 5 meter Proximitor Sensor.
• Compatible with Bently Nevada monitoring systems.
• Use with 3300 XL extension cables (same length series).
• Connector type: Miniature coaxial ClickLoc.

Certifications

• Multiple Approvals (option 05)
• EPL Ga and Gc: T1 to T5 classes
• EPL Dc: T280°C down to T90°C
• Suitable for hazardous areas per temperature schedule

Package List

• 1 x 3300 XL 11 mm probe (5m length)
• 1 x Miniature coaxial ClickLoc connector with protector
• Installation instruction sheet (not included, available on request)

Warranty

• 12 months warranty from delivery date.
• Covers manufacturing defects only.
• Does not cover misuse or improper installation.

Shipping Methods

• We ship via FedEx, UPS, or DHL.
• Tracking number provided after dispatch.

Typical Applications

• Steam and gas turbine vibration monitoring
• Compressor shaft position measurement
• Pump bearing and shaft vibration
• Fan and blower condition monitoring
• Generator rotor axial position

Diagnostic Capabilities

• Detects shaft vibration amplitude and phase.
• Measures static shaft position (gap voltage).
• Helps identify unbalance, misalignment, and rubs.
• Works with Bently Nevada diagnostic software.

FAQ

• What is the total probe length?
• 5.0 meters (16.4 feet).
• Can I use this probe with an 8mm Proximitor?
• No. Use only the 5 meter Proximitor Sensor.
• What happens if temperature drops below -34°C?
• The pressure seal may fail early.
• How tight should the connector be?
• Finger tight only. Max torque 0.565 N•m.
• What is the minimum shaft diameter?
• 152 mm (6.0 inches).
• Is the probe armored?
• No. This model has no armor (suffix 000).
• 经验性问答: We saw the gap voltage drift. What went wrong?
• Check cable bends. Minimum bend radius is 25.4 mm. Tighter bends cause noise and drift.
• 经验性问答: After tightening, the probe read incorrectly.
• You may have overtightened. Recommended torque is 21.1 N•m. Higher torque can damage threads or case.
• 选购指导: Which probe length should I choose?
• Match total probe length to your Proximitor. 5m probes need 5m Proximitor. Do not mix lengths.
• 选购指导: How to select thread size?
• Check your mounting hole. M16x1.5 is common. Use adapters if needed.
• 选购指导: Do I need armor?
• For dry, clean areas, no armor is fine (model 000). For rough environments, choose armored option.
