Bently Nevada 330709 3300 XL 11 mm Proximity Probe – Specs

Description

Product Description

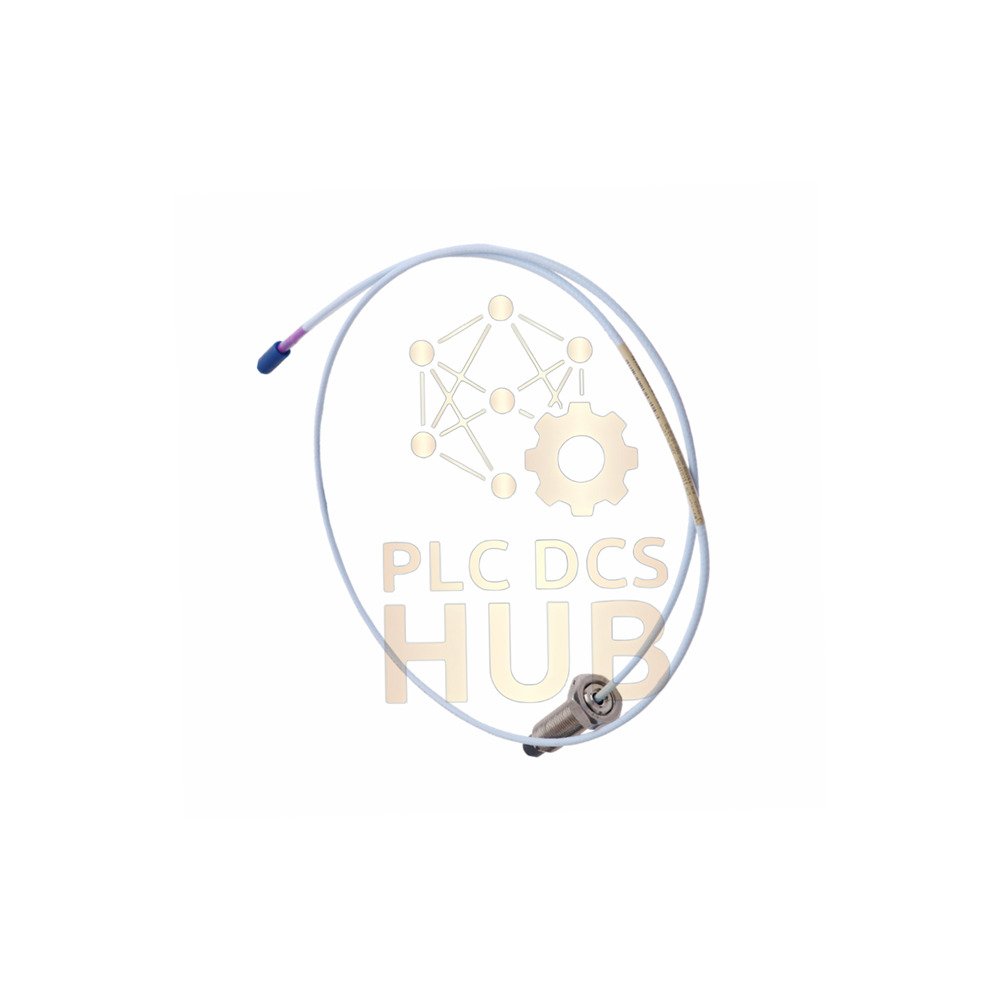

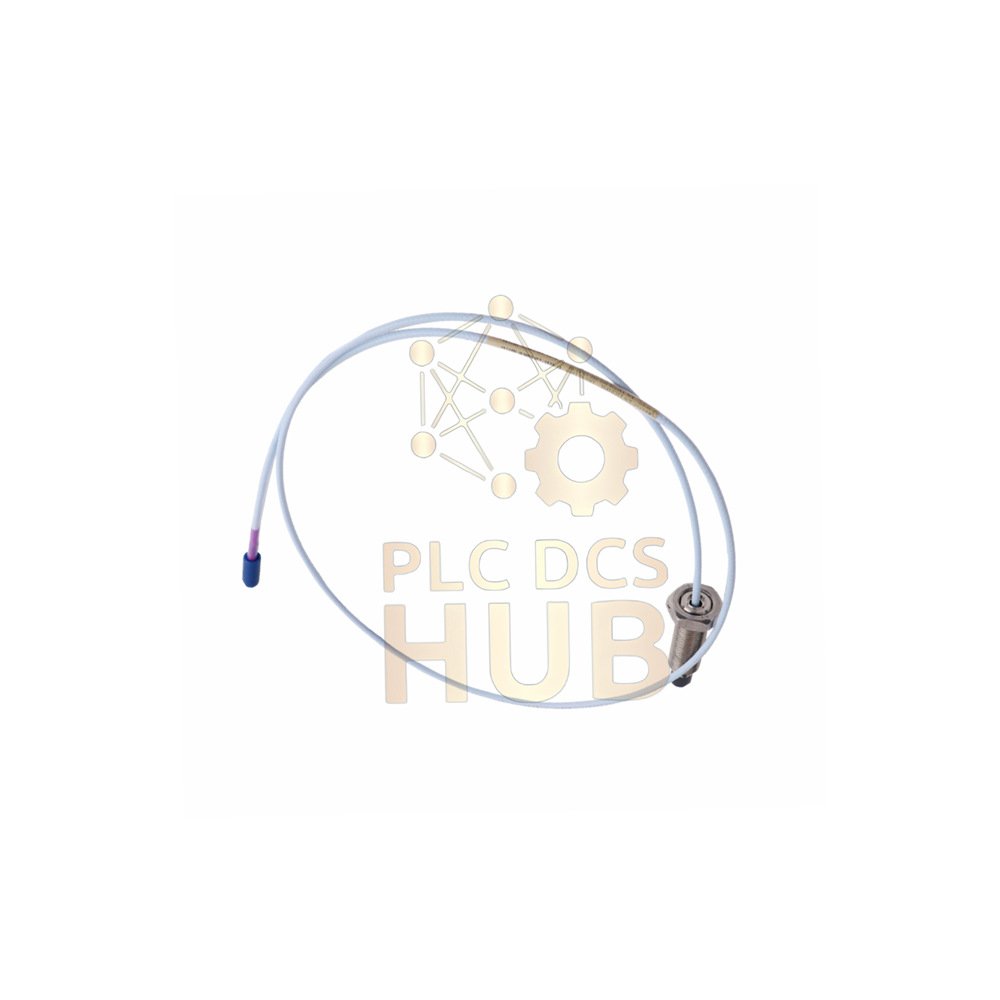

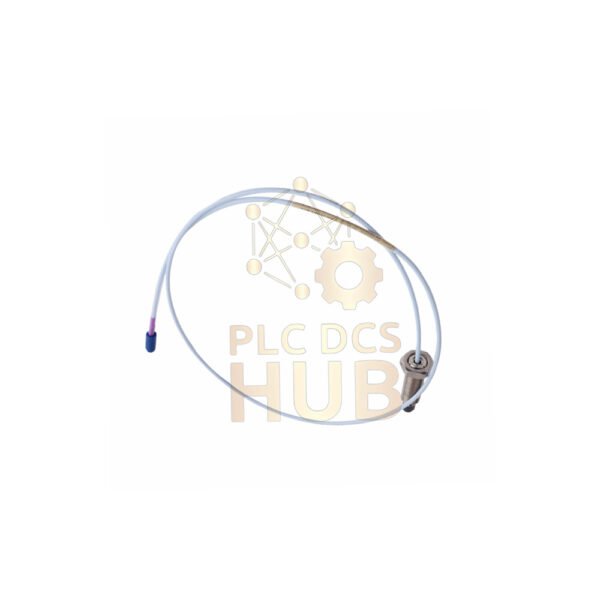

The 3300 XL 11 mm Proximity Probes from Bently Nevada offer high reliability.
Model 330709-010-050-10-02-00 is a non-armored probe with M16 x 1.5 thread.
It works with targets like shafts or flat surfaces.
This probe resists magnetic fields and harsh temperatures.
Ideal for rotating machinery monitoring in industrial automation.

Key Features (MECE Classification)

• Brand: Bently Nevada
• Model: 330709-010-050-10-02-00
• Series: 3300 XL 11 mm
• Product Type: Proximity Probe, non-armored
• Made in: U.S.A.

Technical Specifications

• Measurement Range: Gap 0.5 mm to 4.6 mm (20 to 180 mil)
• Frequency Response: Not specified; works with standard 5 meter system
• Sensitivity (60 Hz Magnetic Field):
  • At 0.5 mm gap: 0.001 V pp/gauss
  • At 2.5 mm gap: 0.009 V pp/gauss
  • At 4.6 mm gap: 0.027 V pp/gauss
• Linearity: Reliable within recommended target size
• Resolution: High resolution for proximity sensing
• Temperature Range (Operating & Storage): -52°C to +177°C (-62°F to +351°F)
• Storage Temperature Only: -52°C to +105°C (-62°F to +221°F)
• Environmental Tolerance:
  • Humidity: 100% condensing, non-submersible
  • Tested to IEC 68-2-3 damp heat
• Immunity to Interference: Handles up to 300 Gauss at 60 Hz
• Probe DC Resistance: 5.9 ± 0.5 ohms (1.0 m length)
• Cable Type: 75 Ω triaxial, FEP insulated
• Total Length Options: 1, 5, or 9 meters
• Connector: Miniature coaxial ClickLoc, standard cable
• Probe Tip Material: Polyphenylene sulfide (PPS)
• Probe Case Material: AISI 304 stainless steel
• Thread Size: M16 x 1.5
• Max Thread Engagement Length: 24 mm
• Minimum Bend Radius: 25.4 mm (1.0 in)

Installation Guidelines

• Maximum case torque: 63.3 N•m (560 in•lb)
• Recommended case torque: 21.1 N•m (187 in•lb)
• Connector torque: finger tight maximum 0.565 N•m (5 in•lb)
• Minimum target diameter (flat): 30.5 mm (1.2 in)
• Minimum shaft diameter: 152 mm (6.0 in)
• Avoid bending cable below 25.4 mm radius.
• Do not expose probe below -34°C (-30°F) to protect pressure seal.

Debugging & Maintenance Convenience

• Simple resistance check between center and outer conductor.
• Easy gap adjustment with standard tools.
• ClickLoc connector allows fast, secure connection.
• No special maintenance required under normal use.

Compatibility Notes

• Works with Bently Nevada 3300 XL series monitors.
• Compatible with standard 75 Ω coaxial extension cables.
• Use with recommended target sizes for best linearity.

Certifications

• Agency approval option 00 = Not required for this model.
• Pressure seal uses Viton O-ring (not pre-tested).
• Tested to IEC 68-2-3 damp heat standard.

Package Contents

• 1 x 3300 XL 11 mm probe (model 330709-010-050-10-02-00)
• No additional accessories included

Warranty & Shipping

• Warranty: 12 months from delivery date.
• Shipping carriers: FedEx, UPS, DHL.
• Fast global delivery available.

Typical Applications & Diagnostic Ability

• Monitoring shaft vibration in turbines, compressors, pumps.
• Detecting axial position in generators.
• Diagnosing bearing wear and unbalance.
• Provides real-time proximity data for predictive maintenance.

Frequently Asked Questions (FAQ)

• What is the maximum probe length? Available in 1, 5, or 9 meters.
• Can I use this probe without armor? Yes, this model has no armor.
• Does it work in high humidity? Yes, 100% condensing humidity, but connectors must be protected.
• Why is low temperature a concern? Below -34°C (-30°F) may damage the pressure seal.
• Is the pressure seal tested before shipping? No, contact custom design department if needed.
• What torque for the probe case? Recommended 21.1 N•m, maximum 63.3 N•m.
• Can I use it on a small shaft? Minimum recommended shaft diameter is 152 mm.

Experience-Based FAQ & Selection Guide

• Which total length should I choose? Use 1 meter for short reach, 5 or 9 meters for remote monitoring.
• When to order agency approval option? Only if your site requires formal certification. Most users select 00.
• What if my shaft is smaller than 152 mm? Expect higher cross-talk. Use flat target above 30.5 mm instead.
• How do I avoid premature seal failure? Keep temperature above -34°C during operation.
• Need pressure test before use? Request custom test from Bently Nevada before shipment.

Selection Guide

• Step 1: Confirm shaft or target diameter ≥ 152 mm.
• Step 2: Choose unthreaded length (010 = 10 mm).
• Step 3: Select case length (050 = 50 mm).
• Step 4: Pick total probe length (10 = 1.0 m).
• Step 5: Connector type 02 = ClickLoc standard.
• Step 6: Approval 00 unless required.
