Product Description

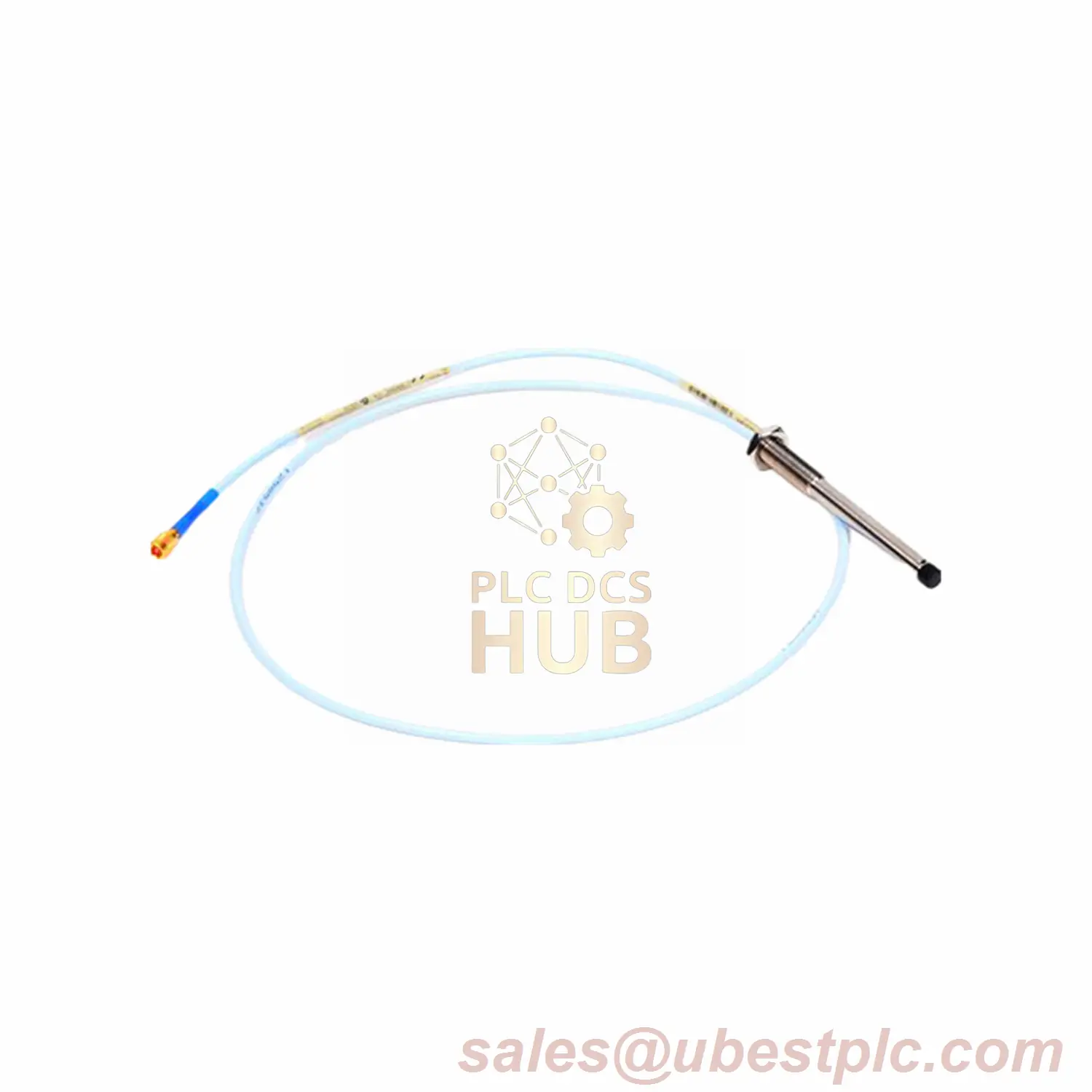

The Bently Nevada 3300 XL 8 mm Probe (Model: 330101-00-12-10-02-CN) is a high-performance vibration monitoring sensor designed for industrial applications. Featuring a 3/8-24 UNF thread and PPS plastic probe tip, it offers rugged durability with a patented TipLoc and CableLoc design for enhanced pull strength (330 N). Optional FluidLoc prevents fluid leakage. Ideal for harsh environments.
Technical Data
- Brand: Bently Nevada
- Model: 330101-00-12-10-02-CN
- Probe Type: 8 mm, 3/8-24 UNF thread, no armor
- Unthreaded Length: 0.0 in (Code: 00)
- Case Length: 1.2 in (Code: 12)
- Cable Length: 1.0 m (Code: 10)
- Connector: Miniature coaxial ClickLoc (Code: 02)
- Agency Approval: Country-specific (Code: CN)
- Range: 2 mm (80 mils)
- Accuracy: ±5% (5m system), ±6.5% (9m system)
- Output Signal: 7.87 V/mm (200 mV/mil)
- Temperature Range: -52°C to +177°C (Standard)
- Material: Stainless steel case, PPS tip
Installation Guide
- Use 0.2–1.5 mm² (16–24 AWG) shielded triad cable.
- Max field wiring: 305 meters.
- Set radial vibration gap to -9 Vdc (~1.27 mm).
- Avoid temperatures below -34°C to prevent seal damage.
Packaging List
- 3300 XL 8 mm Probe
- Miniature ClickLoc connector
Warranty
24-month limited warranty. Covers manufacturing defects. Excludes physical damage or improper use.
Application Examples
- Gas turbine vibration monitoring
- Power generator health checks
- Oil pump leak prevention systems
