Description

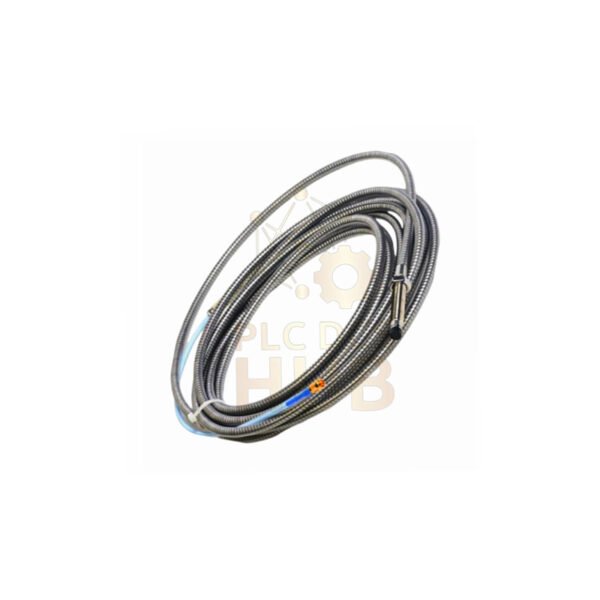

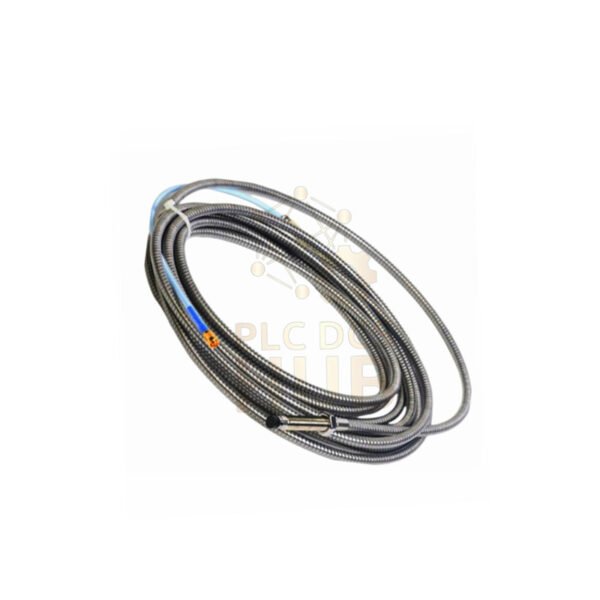

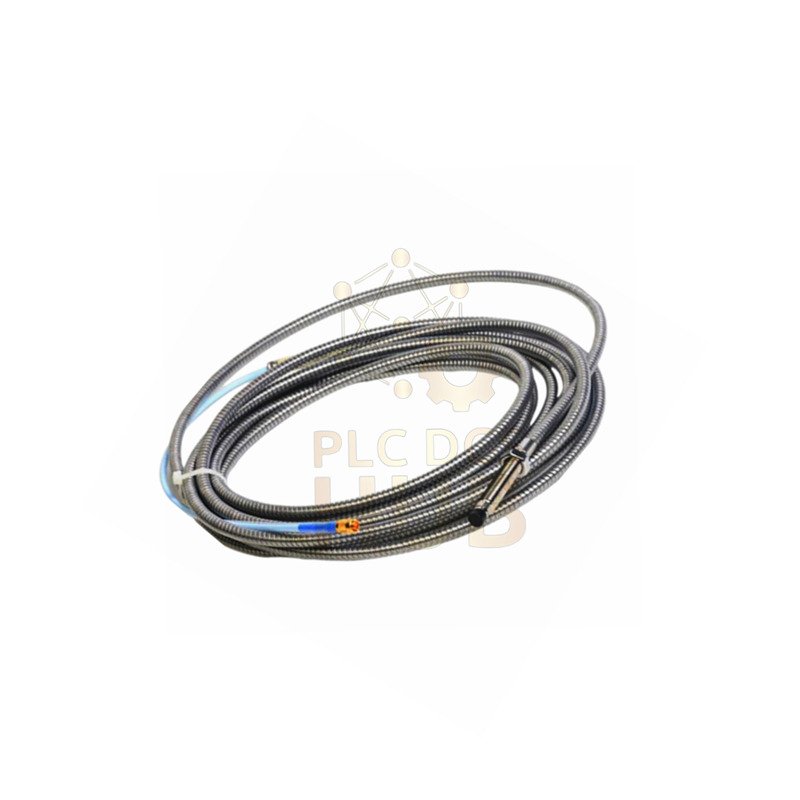

Bently Nevada 3300 XL ETR Extension Cable: Connect with Confidence
Extend the reach of your vibration monitoring system. 330190-085-01-CN ensures your signal stays strong and clear, even in tough conditions.
Product Identity & Configuration
Full Product Number: 330190-085-01-CN
- 330190: Base Product (3300 XL ETR Extension Cable)
- -085: Cable Length = 8.5 meters (27.9 feet)
- -01: Cable Type = Armored for extra protection
- -CN: Agency Approval = China Country Approval
Complete Technical Specifications
- Brand & Model: Bently Nevada 330190-085-01-CN
- Core Resistance (R_CORE): 1.87 Ω ± 0.28 Ω
- Jacket Resistance (R_JACKET): 0.56 Ω ± 0.11 Ω
- Capacitance: 69.9 pF/meter (typical)
- Impedance: 75 Ω Triaxial
- Temperature Range: -52°C to +260°C (-62°F to +500°F)
- Cable Insulation: PFA (Perfluoroalkoxy) for high heat
- Connector Material: Gold-plated brass/beryllium copper
- Connector Torque: Max 0.565 N•m (5 in•lbf)
- Cable Weight (Armored): 103 g/m (1.5 oz/ft)
- Minimum Bend Radius: 25.4 mm (1.0 inch)
- Field Wiring Guide: Use 3-conductor shielded cable. Max 305m (1000 ft) from sensor to monitor.
Compliance & Approvals
- FCC Part 15 (USA)
- EMC Directive 2014/30/EU (Europe)
- EN 61000-6-2/4 (Immunity & Emissions)
- RoHS Directive 2011/65/EU
- Maritime Classification Rules
- Functional Safety Capability: SIL 2 / SIL 3
- China Country Approval (CN)
Ordering, Shipping & Support
- Packaging: One (1) armored extension cable, 8.5m length, ready to use.
- Warranty: Full 12-month product warranty from date of shipment.
- Fast Global Shipping: We ship worldwide via FedEx, UPS, and DHL for quick delivery.
- Full Compatibility: This 3300 XL ETR cable is interchangeable with standard 3300 system components.
Frequently Asked Questions
What does the “CN” suffix mean for my project?
It means this specific cable model has the official approval for use in China. This saves you time and cost on local compliance testing.
Can I use this in an area with very high electrical noise?
Yes. The triaxial design and armored shielding offer excellent protection against electromagnetic interference (EMI), common in industrial plants.
How long can my total cable run be?
You can use this 8.5m cable plus up to 305m (1000 ft) of field wiring. For very long runs, check the system manual for high-frequency response limits.
Should I choose armored or standard cable?
Choose armored (-01) if the cable might be stepped on, pinched, or exposed to abrasion. It prevents damage that could stop your machine.
My site has steam lines. Is the temperature rating enough?
Yes. The Extended Temperature Range (ETR) cable handles up to 260°C. This is sufficient for most areas near steam jackets or hot machinery surfaces.
