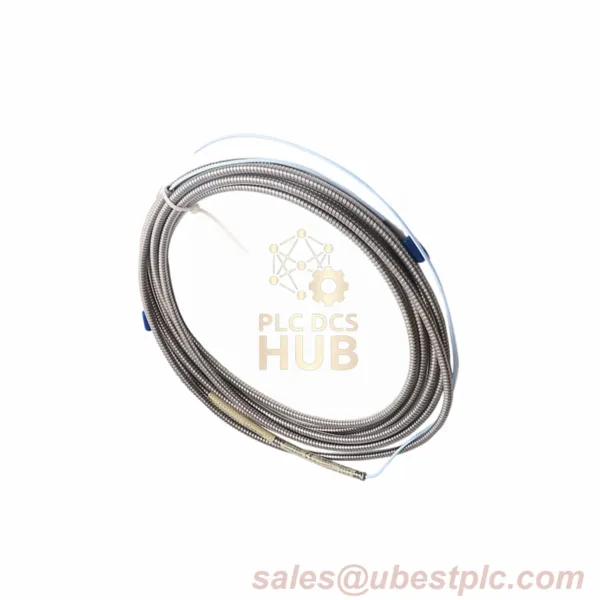

Bently Nevada 330130-070-11-05: High-Performance Armored Extension Cable
Description
Industrial-grade extension cable for vibration monitoring systems. Features FluidLoc armor to prevent oil leaks in turbines. Includes silicone tape for connector protection (not recommended for oil-exposed areas). Made in USA.
Technical Data
- Brand: Bently Nevada
- Model: 330130-070-11-05
- Series: 3300 XL
- Length: 7.0m (22.9 ft)
- Cable Type: Armored FluidLoc
- Weight: 0.721 kg
- DC Resistance:
- Center-Conductor (RCORE): 1.54Ω ±0.23Ω
- Outer-Conductor (RJACKET): 0.46Ω ±0.09Ω
- Capacitance: 69.9 pF/m
- Pull Strength: 330N (75 lbf) via CableLoc
- Approvals: CSA, ATEX, IECEx
Core Specifications
- Operating Voltage: -17.5 to -26 Vdc
- Output Resistance: 50Ω
- Field Wiring: 0.2-1.5 mm² (16-24 AWG), max 305m
- Linear Range: 0.25-2.3mm (10-90 mils)
- Humidity Resistance: <3% ASF change (93% humidity, 56 days)
Installation Guide
- Use 3-conductor shielded triad cable for field wiring
- Apply silicone tape for non-oil environments only
- Ensure probe gap: 1.27mm (50 mils)
- Max altitude: 2000m
Diagnostics & Maintenance
- Check resistance values monthly: RCORE 1.31-1.77Ω, RJACKET 0.37-0.55Ω
- Inspect armor for oil leakage signs
- Test pull strength if connection feels loose
Packaging List
- 1x Extension cable (7m)
- Silicone tape roll
Shipping Methods
FedEx | UPS | DHL (Global delivery)
Problem Solutions
- Reduced linear range: Check voltage (>-23.5Vdc required)
- Oil leakage: Use FluidLoc cables, avoid standard silicone tape
- Signal loss: Verify capacitance <21.3 pF/ft
Industry Applications
- Gas turbines: Vibration monitoring
- Power generation: Rotating machinery
- Oil refineries: Pump systems
FAQ
- Q: Can I submerge this in oil?
A: Yes – FluidLoc armor prevents internal oil leakage. - Q: Minimum operating voltage?
A: -17.5Vdc (with nonincendive circuits). - Q: Pressure testing included?
A: No – contact for custom pressure tests.
