Description
Product Overview

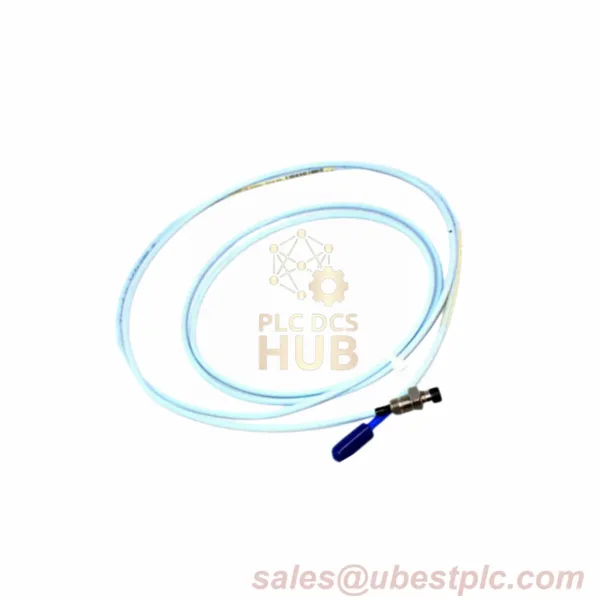

The Bently Nevada 330104-05-11-90-11-00 is a heavy-duty 3300 XL 8 mm Proximity Probe, engineered for precision monitoring in high-vibration industrial environments. Built with an M10x1 threaded AISI 303/304 stainless steel case and a 50 mm unthreaded section, it offers extended reach for challenging installations. The probe features a 9-meter FluidLoc cable with a ClickLoc connector protector, ideal for long-distance signal integrity.
Key Specifications
- Brand: Bently Nevada
- Model: 3300 XL 8 mm Proximity Probe
- Part No.: 330104-05-11-90-11-00
- (Suffix: 05=50mm Unthreaded, 11=110mm Case, 90=9m Cable, 11=FluidLoc/Protector, 00=No Approval)
- Target Sensitivity: Optimized gap of 1.27 mm (50 mils) for AISI 4140 steel.
- Probe Resistance: 9.87 Ω ±0.50 Ω at 9m cable length.
- Temperature Drift: ±0.02%/°C over -55°C to +232°C.
- Insulation Resistance: >100 MΩ at 500 VDC.
- Response Time: <2 μs for dynamic signal capture.
Electrical Performance
- Power Supply: -17.5 Vdc to -26 Vdc (12 mA max).
- Output Noise: <10 mV RMS (10 Hz–10 kHz).
- Load Compatibility: 10 kΩ minimum.
Mechanical Design
- Thread Engagement: Minimum 6 full threads required.
- Cable Flexibility: 500+ bend cycles at -40°C.
- IP Rating: IP67 when properly installed.
Installation Notes
- Use torque-limiting tools (max 15 Nm) for M10x1 threading.
- Maintain 30 mm clearance from rotating components.
Certifications
- Hazardous Area Ratings: Ex ia IIC T1-T4 Ga (Zone 0), Ex ec IIC T1-T4 Gc (Zone 2).
- RoHS 3 compliant.
Industry Applications
- Wind Turbines: Blade pitch control monitoring.
- Marine Propulsion: Thrust bearing wear detection.
- Hydroelectric Plants: Turbine shaft runout measurement.
Contact Details
For volume pricing or datasheets: sales@ubestplc.com
Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
