Description
Product Overview: Rugged Vibration Sensor

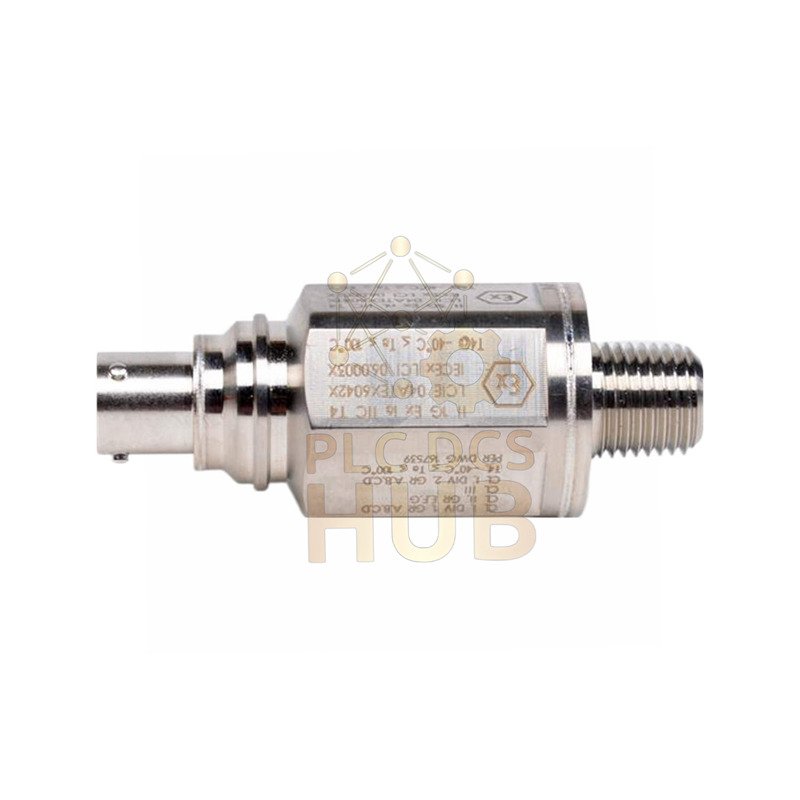

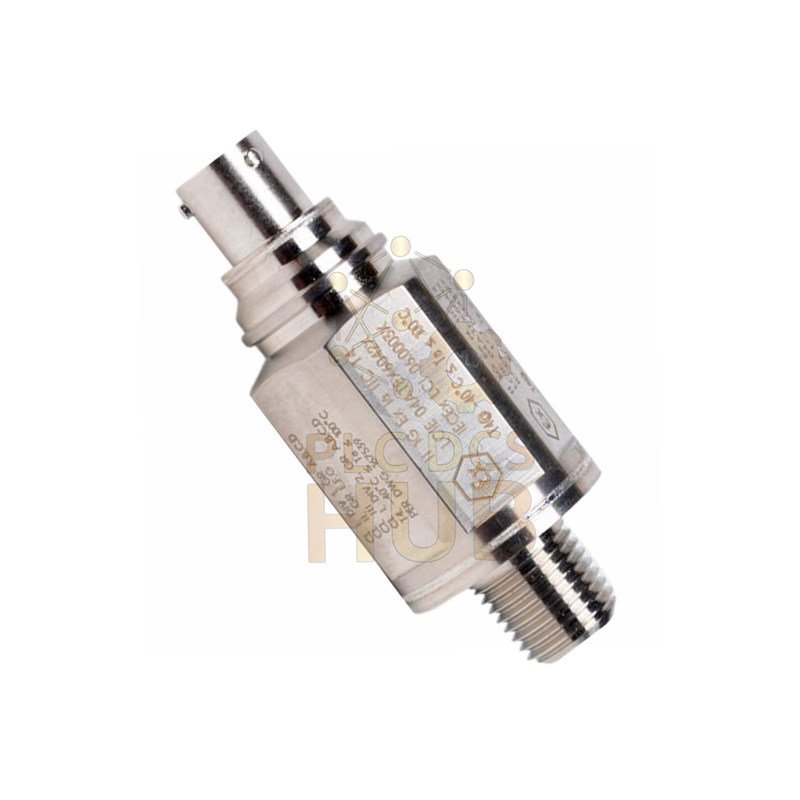

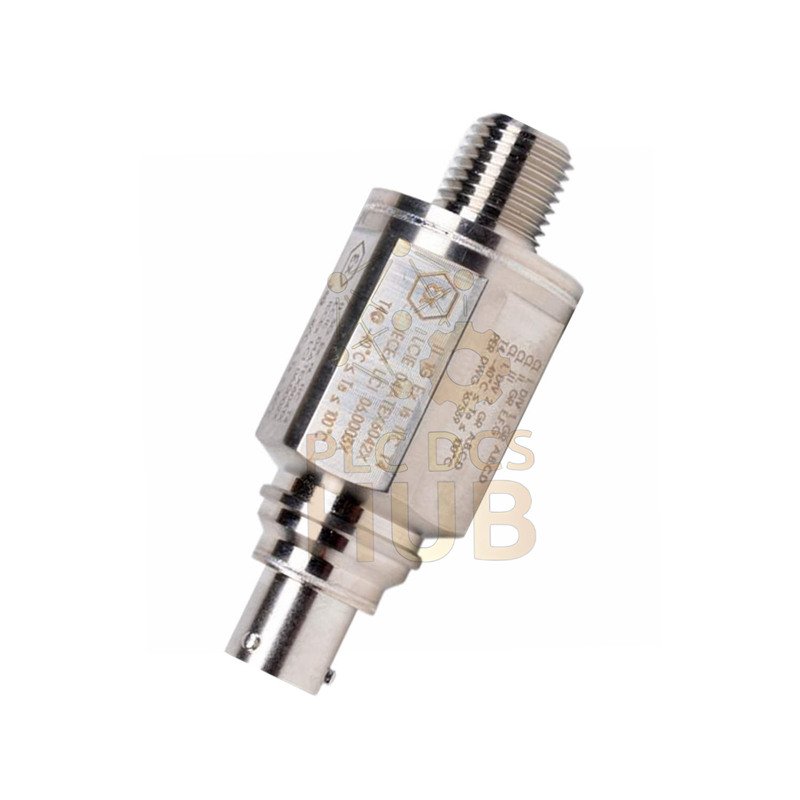

The Bently Nevada 330525-05 Velomitor XA Sensor is a tough vibration monitor. It is an upgraded, durable model. Its 316L stainless steel body resists harsh weather. This sensor works in wet and dusty places. No extra protective box is needed.
Key Technical Data
- Brand & Model: Bently Nevada Velomitor XA (330525-05)
- Key Feature: Official SIRA/CENELEC safety approval.
- Measurement Type: Velocity vibration.
- Sensitivity: 3.94 mV/mm/s (±5%).
- Max Velocity: 1270 mm/s (50 in/s) peak.
- Frequency Range: 4.5 Hz to 2000 Hz.
- Amplitude Linearity: Excellent ±2%.
- Broadband Noise: < 0.004 mm/s rms.
- Power Supply: -22 to -30 VDC.
- Temp. Operation: -55°C to +121°C.
- Shock Survival: 5000 g peak.
- Max Cable: 305 meters (1000 feet).
- Output Impedance: < 2400 Ω.
- Connector: 2-pin hermetically sealed.
- Enclosure Rating: IP-65 / NEMA 4X.
- Weight: 156 g (5.5 oz).
Top Product Benefits
- Agency Approved: Certified for safety systems.
- Extreme Environment Ready: Sealed against moisture and dust.
- Wide Temperature Range: Works from deep freeze to high heat.
- High Accuracy: Low noise and strong linearity.
- Long Distance: Supports cables up to 305m.
Warranty & Shipping Info
Full 12-month product warranty. We ship fast worldwide via FedEx, UPS, and DHL.
Frequently Asked Questions
What is the main use for this sensor model?
The 330525-05 is for critical safety and protection systems. It is common in power plants and oil refineries.
How do I power this vibration sensor?
Connect it to a -24 VDC power supply. The required range is -22 to -30 VDC.
What is a key installation tip?
Ensure the mounting surface is clean and flat. This guarantees good measurement and sensor life.
Can magnetic fields affect the signal?
Very little. The sensor has strong immunity to magnetic field interference.
How do I choose between standard and XA models?
Choose the Velomitor XA 330525-05 if you need official certification or work in very harsh conditions. It is more durable.
Simple Buying Guide
Select the Bently Nevada 330525-05 sensor for certified, reliable monitoring. It is the right choice for tough outdoor applications and safety-critical systems. Check your power supply matches before ordering.
