Bently Nevada 330707-00-25-50-12-00 Probe | 3300 XL 11mm Armored Sensor

Description

Product Overview

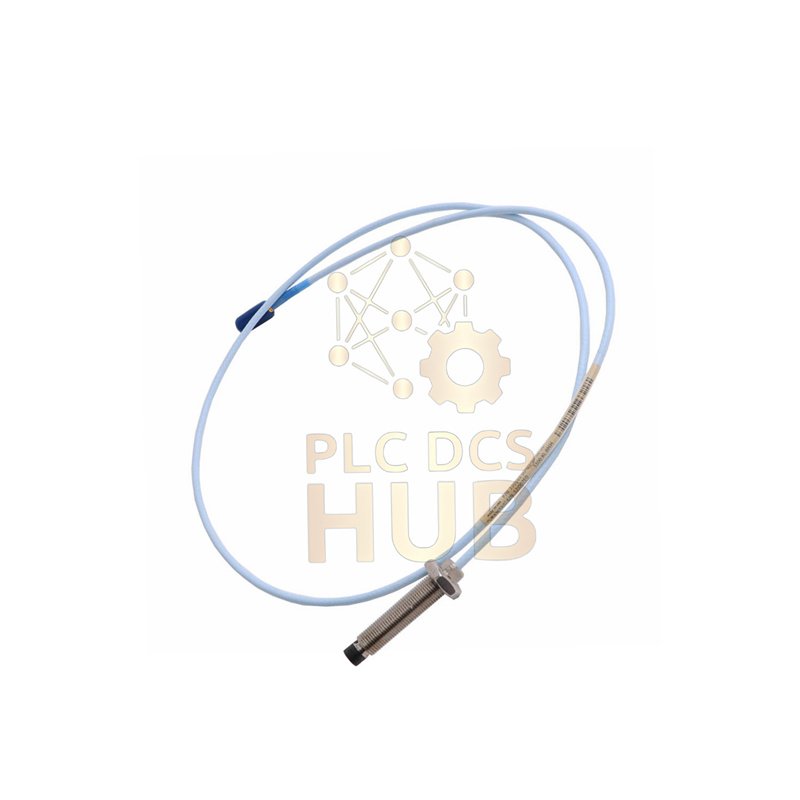

Introducing the genuine Bently Nevada 330707-00-25-50-12-00. This is a premium 3300 XL 11 mm Proximity Probe. It is new, original, and made in the USA. Designed for heavy-duty industrial monitoring with armored protection and a long 5-meter FluidLoc cable. Perfect for reliable vibration and position measurement. Questions? Contact us: +86 158 8020 0923.

Key Specifications & Decoding

• Brand & Model: Bently Nevada 3300 XL 11 mm Proximity Probes
  • Your Full Part Number: 330707-00-25-50-12-00
  • What This Code Means:330707 – 3300 XL 11 mm Probe (1/2-20 UNF, with Armor)

    -00 – Unthreaded Length (0 inches)

    -25 – Case Length (2.5 inches)

    -50 – Total Cable (5.0 meters / 16.4 feet)

    -12 – Connector/Cable (ClickLoc, FluidLoc)

    -00 – Agency Approval (Not Required)

• Electrical & Physical Data
  • Probe DC Resistance: 7.2 ± 0.8 ohms (for 5.0m length).
  • Cable Type: 75 Ω triaxial with FEP insulation.
  • Operating Temperature: -51°C to +177°C (-60°F to +351°F).
  • Minimum Bend Radius: 25.4 mm (1.0 inch).
  • Shipping Weight: 0.17 Kg.
• Construction Materials
  • Probe Tip: Tough Polyphenylene Sulfide (PPS).
  • Probe Case: Durable AISI 304 Stainless Steel.
  • Sealing: Viton O-ring for environmental protection.
• Mechanical Installation
  • Thread Type: 1/2-20 UNF.
  • Max Thread Engagement: 0.750 inches.
  • Case Torque: Recommended 15.2 N•m (133 in-lb).
  • Connector Torque: Finger tight, max 0.565 N•m (5 in-lb).

Important Usage Notes

• This 5-meter probe works only with the matching 5-meter Proximitor Sensor.
• Avoid temperatures below -34°C (-30°F) to protect the pressure seal.
• The probe has a pressure seal but is not factory tested for pressure.
• Contact us for custom pressure seal testing before you install it.

Frequently Asked Questions

Compatibility & Selection

• Can I use this 5-meter probe with any Proximitor sensor?

No. You must use it with the specific 5-meter version of the 3300 XL Proximitor Sensor. Using it with other sensors may cause errors.

• What does “FluidLoc cable” mean for my application?

FluidLoc cable has extra protection against oils and coolants. It is ideal for wet or harsh industrial environments.

Installation & Durability

• Why is there a temperature warning below -34°C?

The sealing O-ring can become brittle in extreme cold. This may cause leaks if the probe sees pressure differences. Keep it above -34°C when possible.

• The probe has armor. Does it need special handling?

The armor protects the cable. You still must respect the minimum bend radius of 1 inch. Avoid sharp kinks during installation.

Ordering & Support

• What support do I get with my order?

Your order includes the new probe, a 12-month factory warranty, and global shipping via FedEx, UPS, or DHL. Our team provides technical support for installation.

Ordering & Shipping Information

You are ordering part 330707-00-25-50-12-00. This is a specific configuration with armor and a long cable. Confirm your system needs this exact part. We ship worldwide quickly. Your item comes with a full 12-month quality guarantee.
