Description
Product Overview

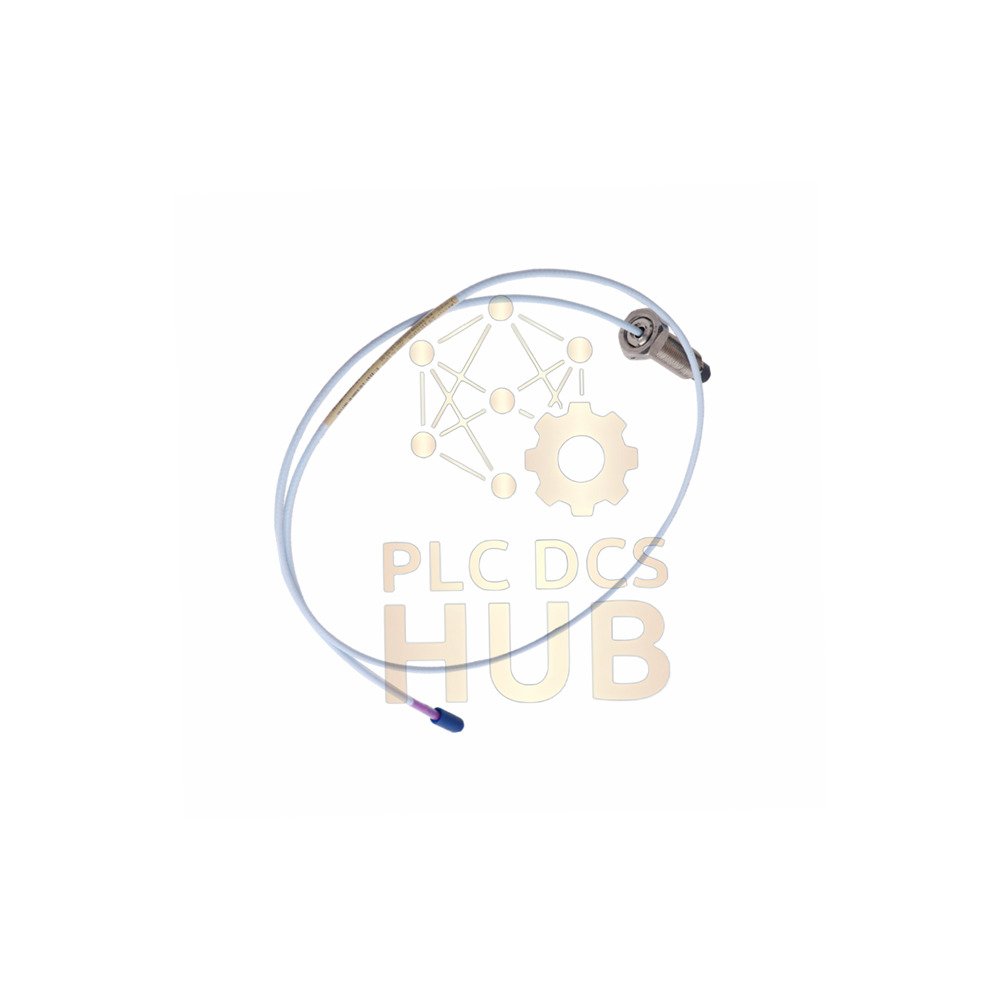

- Bently Nevada 330709-050-120-10-02-00 is a 3300 XL 11 mm Proximity Probe.
- This probe measures vibration and position on rotating machinery.
- Made in USA. High quality for industrial turbines, compressors, and pumps.
- Use it with Bently Nevada monitoring systems for reliable protection.
Part Number Breakdown – Understand Your Probe
- ▹ 330709 – 3300 XL 11 mm Probe, M16 x 1.5 thread, no armor
- ▹ 050 – Unthreaded length: 50 mm
- ▹ 120 – Overall case length: 120 mm
- ▹ 10 – Total length: 1.0 meter (3.3 feet)
- ▹ 02 – Miniature coaxial ClickLoc connector, standard cable
- ▹ 00 – No agency approval required
Technical Specifications
- ▹ Manufacturer: Bently Nevada
- ▹ Model: 330709-050-120-10-02-00
- ▹ Series: 3300 XL 11 mm Proximity Probes
- ▹ Probe tip material: Polyphenylene sulfide (PPS)
- ▹ Probe case material: AISI 304 stainless steel
- ▹ Cable specification: 75 Ω triaxial, FEP insulated
- ▹ Available total lengths: 1, 5, or 9 meters
- ▹ Probe DC resistance (1m length): 5.9 ± 0.5 ohms
- ▹ Thread type: M16 x 1.5
- ▹ Max thread engagement: 24 mm
Performance & Accuracy
- Recommended minimum target size: 30.5 mm (1.2 in) diameter flat surface.
- Recommended minimum shaft diameter: 152 mm (6.0 in).
- Resolution: High resolution for precise gap measurement.
- Linear range: 0.5 mm to 4.6 mm gap (20 to 180 mils).
Temperature & Environmental Tolerance
- Operating temperature: -52°C to +177°C (-62°F to +351°F).
- Exposing below -34°C (-30°F) may damage the pressure seal.
- Storage temperature: -52°C to +105°C (-62°F to +221°F).
- Relative humidity: 100% condensing (non-submersible). Tested to IEC 68-2-3.
- Pressure rating: Seals differential pressure with Viton O-ring. Not pre-tested.
Anti-Interference – 60 Hz Magnetic Fields
- Module tolerates up to 300 Gauss (5 meter system).
- Output voltage (mil pp per Gauss) varies by gap:
- Gap 0.5 mm (20 mil): 0.001
- Gap 2.5 mm (100 mil): 0.009
- Gap 4.6 mm (180 mil): 0.027
Installation Guide
- Clean probe tip and mounting surface before installation.
- Apply recommended torque for probe case: 21.1 N•m (187 in•lb).
- Maximum torque: 63.3 N•m (560 in•lb) – do not exceed.
- For connector: finger tight maximum 0.565 N•m (5 in•lb).
- Minimum bend radius: 25.4 mm (1.0 inch) for cable.
- Protect connectors from submersion. Humidity is OK if connectors are dry.
Debug & Maintenance
- Check DC resistance between center and outer conductor. Should read 5.9 ± 0.5 ohms per meter.
- Inspect probe tip for damage or debris.
- Verify gap voltage using Bently Nevada proximity system.
- Replace probe if cable shows cuts or kinks.
Compatibility
- Works with all Bently Nevada 3300 XL monitoring systems.
- Compatible with 5mm and 8mm proximity probe extensions.
- Use with Bently Nevada proximitor sensors for signal conditioning.
- Can integrate with Modicon Quantum PLCs via 4-20mA converters.
Certifications & Compliance
- Made in USA. Meets Bently Nevada factory standards.
- Humidity tested to IEC 68-2-3 (damp heat).
- Probe materials: PPS tip, AISI 304 stainless steel case, FEP cable.
- Optional agency approvals available (contact us).
Package Contents & Warranty
- 12 months warranty from invoice date. Covers defects.
- Package includes: 1 x 330709 probe with attached cable and ClickLoc connector.
- No mounting hardware or proximitor included.
- Return defective units for replacement under warranty.
Shipping – Fast Worldwide Delivery
- We ship with FedEx, UPS, DHL express services.
- Tracking number within 24 hours. Insurance included.
- Typical delivery: 3-7 business days.
Typical Applications
- Gas and steam turbine vibration monitoring.
- Compressor shaft position measurement.
- Pump bearing wear detection.
- Fan and blower rotor axial position monitoring.
Diagnostic Capability
- Measures static gap (position) and dynamic vibration.
- Detects shaft runout and eccentricity.
- Works with Bently Nevada diagnostic tools for trend analysis.
- DC resistance check confirms cable health.
Frequently Asked Questions (FAQ)
- Question: What is the maximum cable length for this probe?
Answer: Available in 1, 5, or 9 meters. This model has 1.0 meter.
- Question: Can I use this probe in wet environments?
Answer: Yes if connectors stay dry. Humidity up to 100% condensing is allowed.
- Question: What happens if I exceed 63.3 N•m torque?
Answer: You may strip the threads or damage the probe case.
- Question: Does the probe work with 3300 XL extension cables?
Answer: Yes. Use Bently Nevada approved extension cables only.
- Question: Why does the part number have so many segments?
Answer: Each segment specifies length, connector, and options for custom fit.
Experience-based Q&A (Field Notes)
- Question: My reading drifts slowly over time. What should I check?
Answer: Check probe tip for debris or oil. Also verify cable has no cuts.
- Question: The ClickLoc connector feels loose. Is that normal?
Answer: No. Tighten finger tight only. Overtightening breaks the connector.
- Question: Can I shorten the probe cable?
Answer: No. Shortening changes resistance and calibration. Order correct length.
- Question: We see noise at 60 Hz. How to fix?
Answer: Move probe away from power cables. Shield the cable properly.
Buying Guide – Choose the Right 3300 XL Probe
- Choose 330709-050-120-10-02-00 for M16 thread, 50mm unthreaded, 120mm case, 1m cable.
- Need longer cable? Pick 5m or 9m total length options (digits 13-14).
- For armored cable, select armor option at beginning of part number.
- Check your shaft diameter – minimum 152 mm (6 inches) recommended.
- Verify temperature range. This probe handles up to +177°C.
- Contact us for custom pressure testing before shipment.
Need Help? Contact Us
- Technical support or quote requests:
+86 158 8020 0923 (WhatsApp) - Email: sales@plcdcshub.com – reply within 24 hours.
- Pre-sales consulting, datasheets, and RMA support available.
