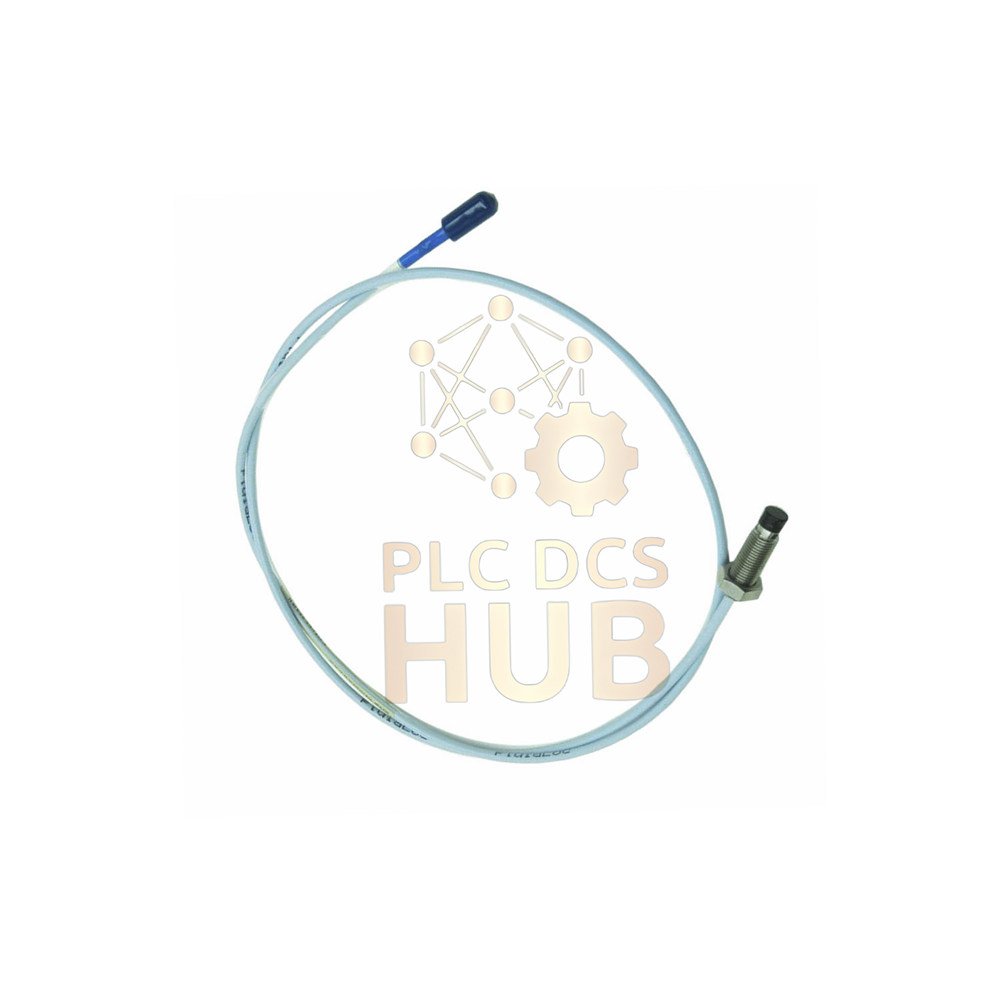

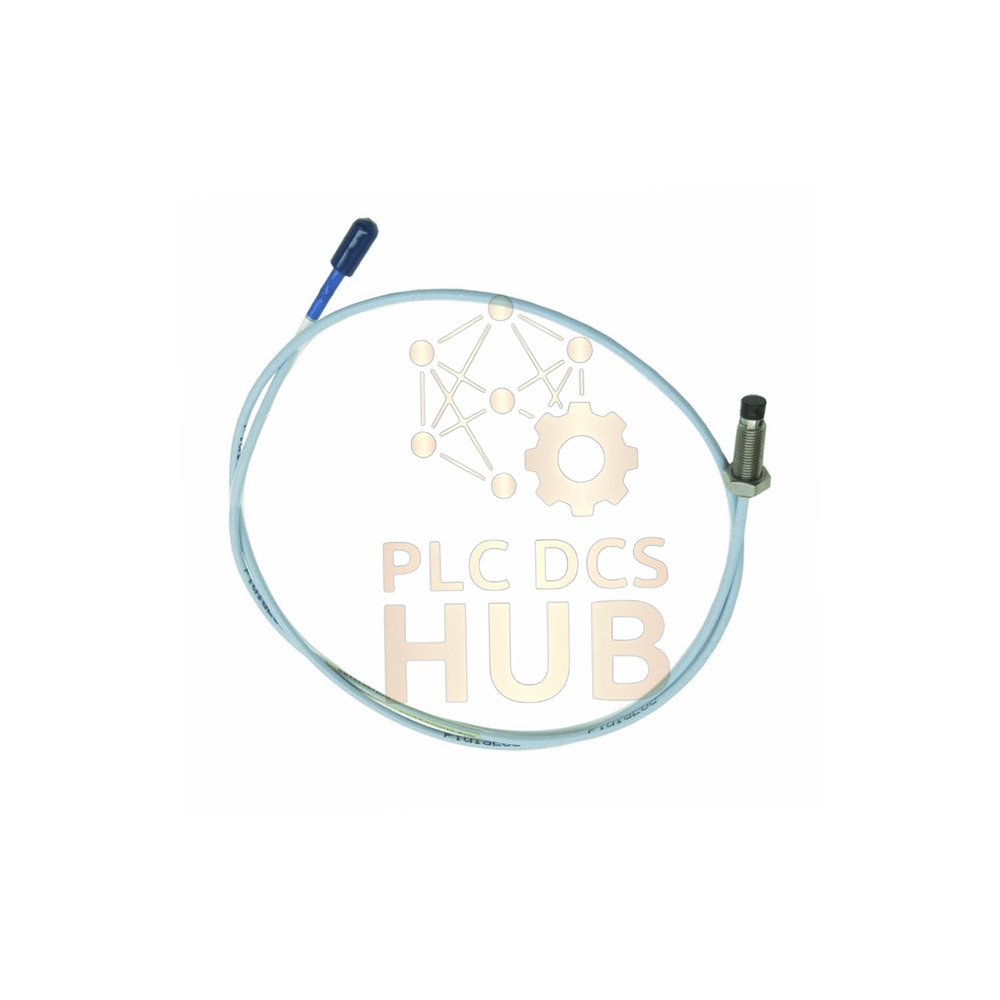

Bently Nevada 330710 3300 XL 11 mm Probe | 1.0m Cable

Description

Description

• Bently Nevada 330710 is a 3300 XL 11 mm Proximity Probes.
• Measures shaft vibration and position in rotating machinery.
• Made in U.S.A with M16 x 1.5 threaded case.
• Includes 1.0 metre (3.3 feet) total length with armor.
• Miniature coaxial ClickLoc connector for secure fast installation.
• No agency approval needed (Option 00).
• For industrial gas turbines, compressors, and pumps.

Key Technical Data

• Brand: Bently Nevada
• Model: 330710-000-050-10-02-00
• Probe dc Resistance: 5.9 ± 0.5 ohms (center to outer conductor)
• Minimum target diameter (flat): 30.5 mm (1.2 in)
• Minimum shaft diameter: 152 mm (6.0 in)
• Probe tip material: Polyphenylene sulfide (PPS)
• Case material: AISI 304 stainless steel
• Cable specification: 75 Ω triaxial, FEP insulated
• Available total probe lengths: 1, 5 or 9 meters
• Maximum case torque: 63.3 N•m (560 in•lb)
• Recommended case torque: 21.1 N•m (187 in•lb)
• Connector torque (max): 0.565 N•m (5 in•lb)
• Minimum bend radius: 25.4 mm (1.0 in) with or without armor
• Thread engagement max length: 24 mm

Measurement & Performance

• Gap measurement range: 0.5 mm to 4.6 mm (20 to 180 mil)
• Frequency response: DC to high frequency (proximity effect)
• Sensitivity (60 Hz magnetic field effect): 0.001 to 0.027 mil pp/gauss depending on gap
• Linearity: Built into 3300 XL series design
• Resolution: High resolution for微小 displacement

Temperature & Environmental Tolerance

• Operating & storage temp (probe): -52°C to +177°C (-62°F to +351°F)
• Avoid below -34°C (30°F): may damage pressure seal.
• Storage temp only: -52°C to +105°C (-62°F to +221°F)
• Relative humidity: 100% condensing, non-submersible (protect connectors)
• Humidity test standard: IEC 68-2-3 damp heat
• Pressure sealing: Viton O-ring between tip and case.
• Not pressure tested before shipment. Contact custom design for test.

Temperature Classification for Hazardous Areas

• EPL Ga / Gc: T1 (232°C), T2 (177°C), T3 (120°C), T4 (80°C), T5 (40°C)
• EPL Dc: T280°C (232°C), T225°C (177°C), T170°C (120°C), T130°C (80°C), T105°C (100°C), T90°C (40°C)

Installation Guide

• Use M16x1.5 thread for probe mounting.
• Apply 21.1 N•m recommended torque for the case.
• Never exceed 63.3 N•m to avoid damage.
• Tighten ClickLoc connector finger tight only.
• Minimum bend radius 25.4 mm for cable.
• Keep target surface flat and clean.
• Recommended shaft diameter ≥152 mm.

Debugging & Maintenance Convenience

• ClickLoc connector allows quick disconnect without tools.
• Measure probe resistance to check health: 5.9 ± 0.5 ohms.
• Visual check of cable armor for damage.
• No special calibration needed for standard installation.
• Use gap voltage to verify probe position.

Compatibility

• Works with Bently Nevada 3300 XL monitors.
• Compatible with standard 75 ohm triaxial extension cables.
• ClickLoc connector matches Bently Nevada extension cables.
• Suitable for API 670 compliant systems.

Certifications & Approvals

• Agency Approval Option: 00 = Not required for this variant.
• Designed for hazardous area use (EPL Ga, Gc, Dc).
• Tested to IEC 68-2-3 for humidity.
• RoHS compliant (standard Bently Nevada).

Package List

• 1 x 330710 3300 XL 11 mm Probe with 1.0m cable
• 1 x ClickLoc connector (installed)
• No mounting hardware included
• No extended cable

Warranty & Shipping

• 12 months warranty from shipment date.
• Covers manufacturing defects only.
• Shipping carriers: FedEx, UPS, DHL (express available).
• Tracking number provided within 24 hours.

Typical Applications & Diagnostic Capability

• Monitor radial shaft vibration in turbines.
• Detect axial thrust position in compressors.
• Diagnose gear mesh and bearing wear.
• Help identify rotor unbalance and misalignment.
• Use with Bently Nevada trending software for predictive maintenance.

Frequently Asked Questions (FAQ)

• What is the standard cable length?
  • This model has 1.0 metre total length.
  • Also available in 5m and 9m by special order.
• Can I extend the probe cable?
  • Yes, use Bently Nevada triaxial extension cables.
  • Keep total system length under 305 meters.
• How do I check if my probe is broken?
  • Measure center to outer conductor resistance.
  • It should read 5.9 ± 0.5 ohms at 25°C.
  • If open or short, replace the probe.
• What happens if I exceed torque?
  • Case thread may strip or crack.
  • Always stay below 63.3 N•m maximum.
• Does this probe work in high humidity?
  • Yes, 100% condensing humidity tested.
  • But do not submerge connectors.
• Experience: probe reads noisy signal. Why?
  • Check grounding of the driver and monitor.
  • Verify cable bend radius is not too tight.
  • Look for nearby 60 Hz magnetic fields above 300 Gauss.
• 选购指导 (Selection guide)
  • Choose unthreaded length 000 for standard mounting.
  • Pick overall case length 050 (50mm) for most turbine bearings.
  • Select 1.0m total length (10) for short cable runs.
  • Use ClickLoc connector (02) for easy maintenance.
  • If you need ATEX/IECEx approval, choose option other than 00.
  • For large shafts >152mm, this probe works best.
  • For small shafts (<152mm), consider 8mm probe.
