Product Overview: The Space-Saving Rack

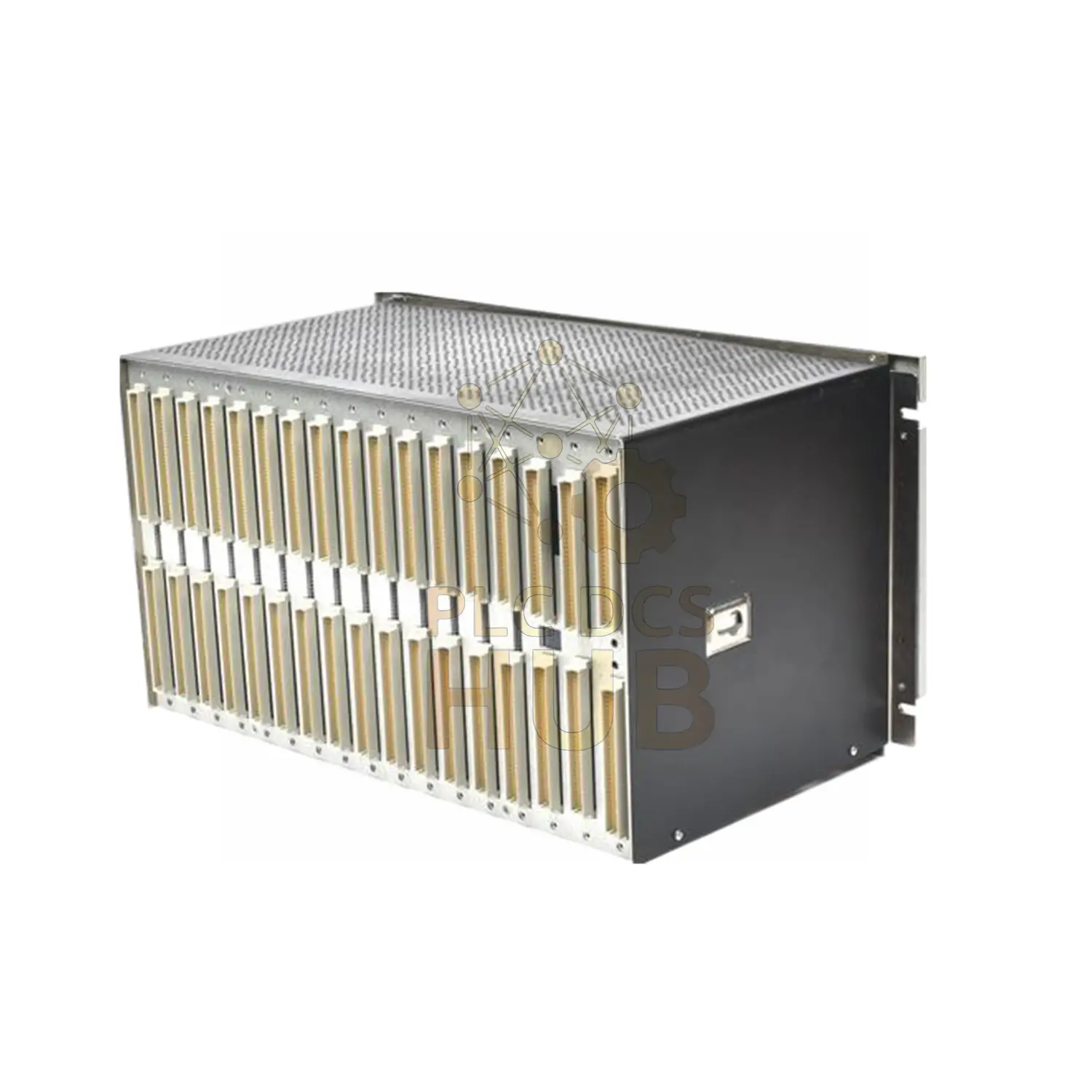

Introducing the Bently Nevada 3500/05-02-04-00-00-00. This is the compact system rack. It is perfect for smaller control panels. The rack holds 7 monitoring modules. Its 12-inch width saves valuable space. You mount it directly on your equipment panel. It brings professional monitoring to compact areas.
Detailed Product Specifications
- Core Information
- Brand: Bently Nevada
- Model: 3500/05-02-04-00-00-00
- Product: 3500/05 Mini System Rack
- Made In: United States
- Part Number Configuration
- Base: 3500/05 System Rack
- Option -02: 12-Inch Mini-Rack with 7 Slots
- Option -04: Mounting = Panel Mount
- Option -00: No Extra Agency Approval
- Option -00: Standard Feature
- Option -00: Basic Compliance (No CE)
- Base: 3500/05 System Rack
- Physical Dimensions
- Width: 304.8 mm (12.0 inches)
- Height: 482.6 mm (19.0 inches)
- Depth: 265.94 mm (10.47 inches)
- Module Slots: 7 Total
- Weight: 14.33 lbs (6.5 kg)
- Mounting Holes: Included on side flanges
- Finish: Durable industrial paint
- Performance & Environment
- Backplane: Pre-installed for module communication
- Power Supply: Requires 3500/15 power module(s) in slots
- Ambient Temperature: 32°F to 140°F (0°C to 60°C)
- Vibration Resistance: Suitable for plant floor environments
What’s Included & Support
- Package Contents: One 3500/05-02-04-00-00-00 rack, mounting screws, documentation.
- Product Warranty: Full 12-month warranty against manufacturing defects.
- Global Shipping: We ship via FedEx, UPS, and DHL for reliable delivery.
Frequently Asked Questions (FAQ)
General Questions
- What is the main use for a mini-rack?
It is used for monitoring individual machines or small systems where panel space is very limited. - Does this rack include a power supply?
No. The rack itself does not provide power. You must install one or two 3500/15 Power Supply Modules into the slots.
Expert Advice
- How do I plan the wiring for a panel-mounted rack?
Plan conduit entries near the rack. Leave enough slack in sensor cables for maintenance. Ensure the panel door can close with cables connected. - Can I later expand a system beyond 7 modules?
No. This rack is limited to 7 slots. For expansion, you would need to add a second rack or replace it with a larger model.
Buying Guidance
- I need CE certification. Is this the right model?
No. This specific model 3500/05-02-04-00-00-00 does not include CE marking. Please contact us for a CE-compliant version.
