Bently Nevada 3500/33-01-00 Relay Module | 3500 Series 16-Channel

Description

Product Introduction

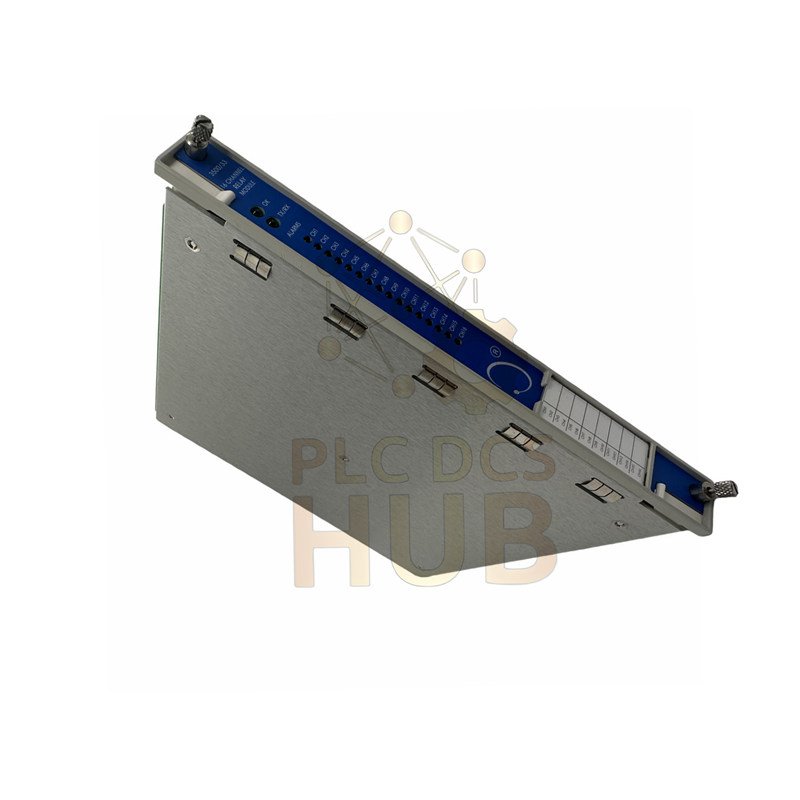

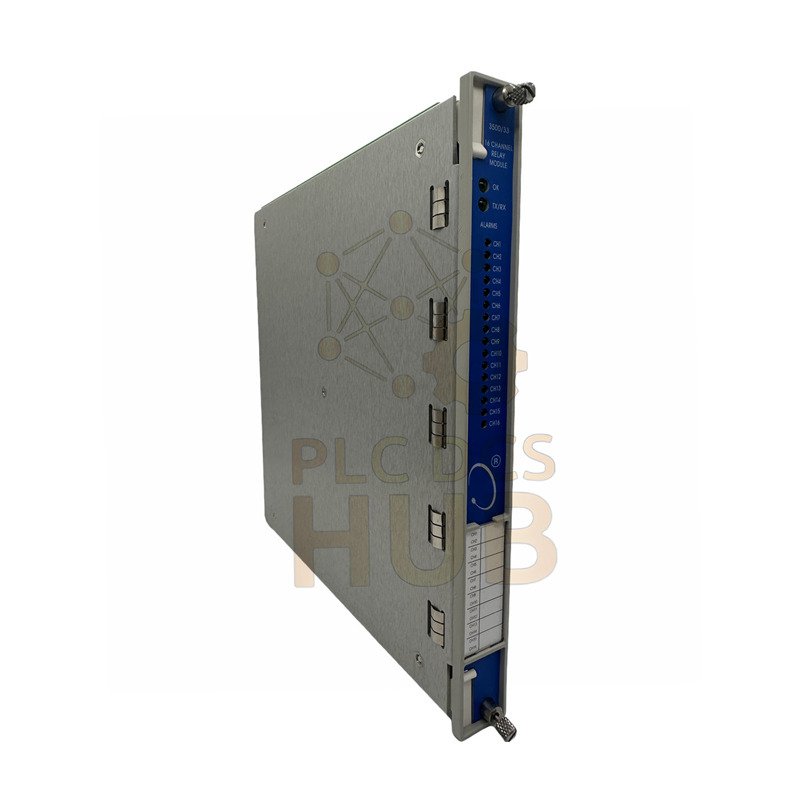

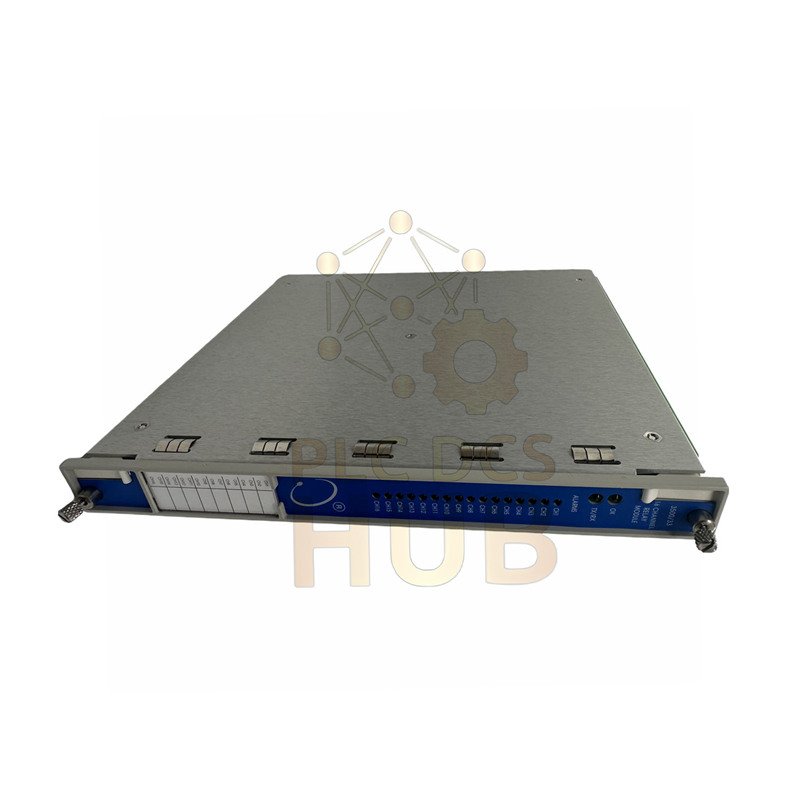

The Bently Nevada
3500/33-01-00
is a 16-channel relay output module.
It converts system alarms into control actions.
It supports protection and shutdown logic.
The module fits standard 3500 racks.

Key Selling Points

• 16 independent relay outputs for flexible control.
• SPDT relay design supports many wiring styles.
• High load capacity for industrial devices.
• Epoxy-sealed relays improve durability.
• Made in USA ensures stable quality.

Technical Highlights

• Manufacturer: Bently Nevada
• Series: 3500 Machinery Protection System
• Model: 3500/33-01-00
• Module Type: 16-Channel Relay Module
• Country of Origin: U.S.A
• Power Consumption: 5.8 W typical
• Relay Type: Single-pole double-throw
• Relay Groups: Four groups, four channels each
• Operating Mode: Normally energized or de-energized
• Relay Life: 10,000 mechanical cycles
• Arc Suppression: 250 Vrms standard
• Channel Isolation: Individual relay isolation
• Response Time: Less than 15 ms
• Power-On Delay: Under 1 second

DC Switching Capability

• Minimum Load: 100 mA at 5 VDC
• Maximum Current: 3 A resistive
• Maximum Voltage: 125 VDC
• Maximum Power: 70 W at 24 VDC
• Other Ratings: 10 W at 48 VDC, 9 W at 60 VDC

AC Switching Capability

• Maximum Current: 3 A resistive
• Maximum Voltage: 250 VAC
• Maximum Load: 1200 VA

Physical Details

• Height: 241 mm
• Width: 24.4 mm
• Depth: 99.1 mm
• Weight: 0.4 kg
• Cooling: Passive airflow

Installation and Use

• Slides directly into a 3500 rack slot.
• No field calibration is required.
• Relay mode set by onboard switches.
• Supports alarm and trip logic.

Spare and Replacement Options

• 149986-01 relay control spare
• 149992-01 standard relay output spare
• 149992-02 failsafe relay output spare
• 149992-03 low current relay output spare
• 149992-04 low current failsafe spare

Packaging and Warranty

• Industrial protective packaging.
• One relay module included.
• 12-month warranty included.
• Global shipping via FedEx, UPS, and DHL.

Common Applications

• Machine shutdown control.
• Alarm horn and beacon driving.
• Interlock logic execution.
• Compressor and turbine protection.
• Plant safety systems.

FAQ

• Can this module drive high power loads?
• Yes. It supports up to 3 A resistive loads.
• Is this module suitable for shutdown logic?
• Yes. It is widely used in trip systems.
• How do I choose energized or de-energized mode?
• Select the mode using onboard switches.
• Is failsafe operation available?
• Yes. Dedicated failsafe variants are supported.
• What should I check before ordering?
• Confirm rack type, voltage, and load rating.
