Description
Product Overview

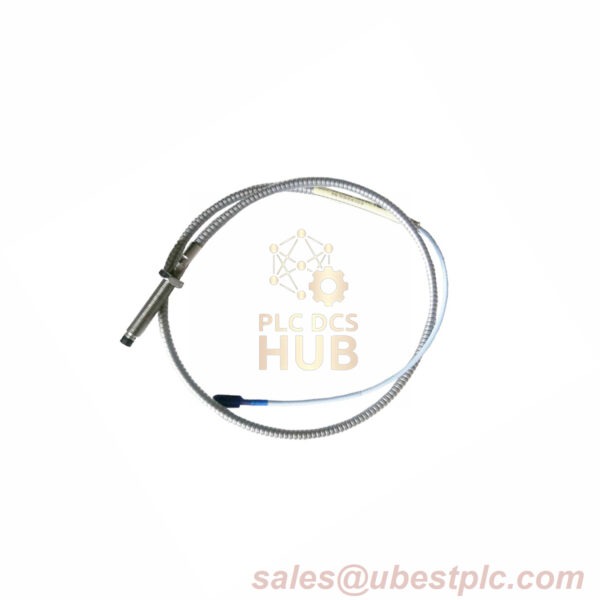

The Bently Nevada 330104-00-17-05-02-00 3300 XL 8 mm Proximity Probe offers robust machinery monitoring for industrial applications. Designed with an armored M10x1 thread and Viton® O-ring sealing, it ensures reliable performance under pressure fluctuations. Its Polyphenylene sulfide (PPS) tip enhances durability in corrosive or high-temperature environments. The probe integrates a ClickLoc connector for stable signal transmission and features a compact design ideal for confined spaces.
Technical Specifications
- Brand: Bently Nevada
- Model: 3300 XL 8 mm Proximity Probe
- 330104-00-17-05-02-00 Suffix Breakdown:
- 00: 0 mm unthreaded length (fully threaded)
- 17: 170 mm overall case length
- 05: 0.5-meter cable (1.6 feet)
- 02: Miniature coaxial ClickLoc connector (no protector)
- 00: No agency approval required
- Mechanical:
- Case Material: AISI 303/304 stainless steel
- Tip Material: Polyphenylene sulfide (PPS)
- Thread Type: M10x1 with armor
- Sealing: Viton® O-ring (supports up to 20 bar differential pressure)
- Environmental:
- Operating Temperature: -40°C to +120°C (-40°F to +248°F)
- Altitude Limit: 2000 meters
- Target Compatibility: AISI 4140 steel at 1.27 mm gap
Contact Support
For certification documents or custom configurations:
sales@ubestplc.com
Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
