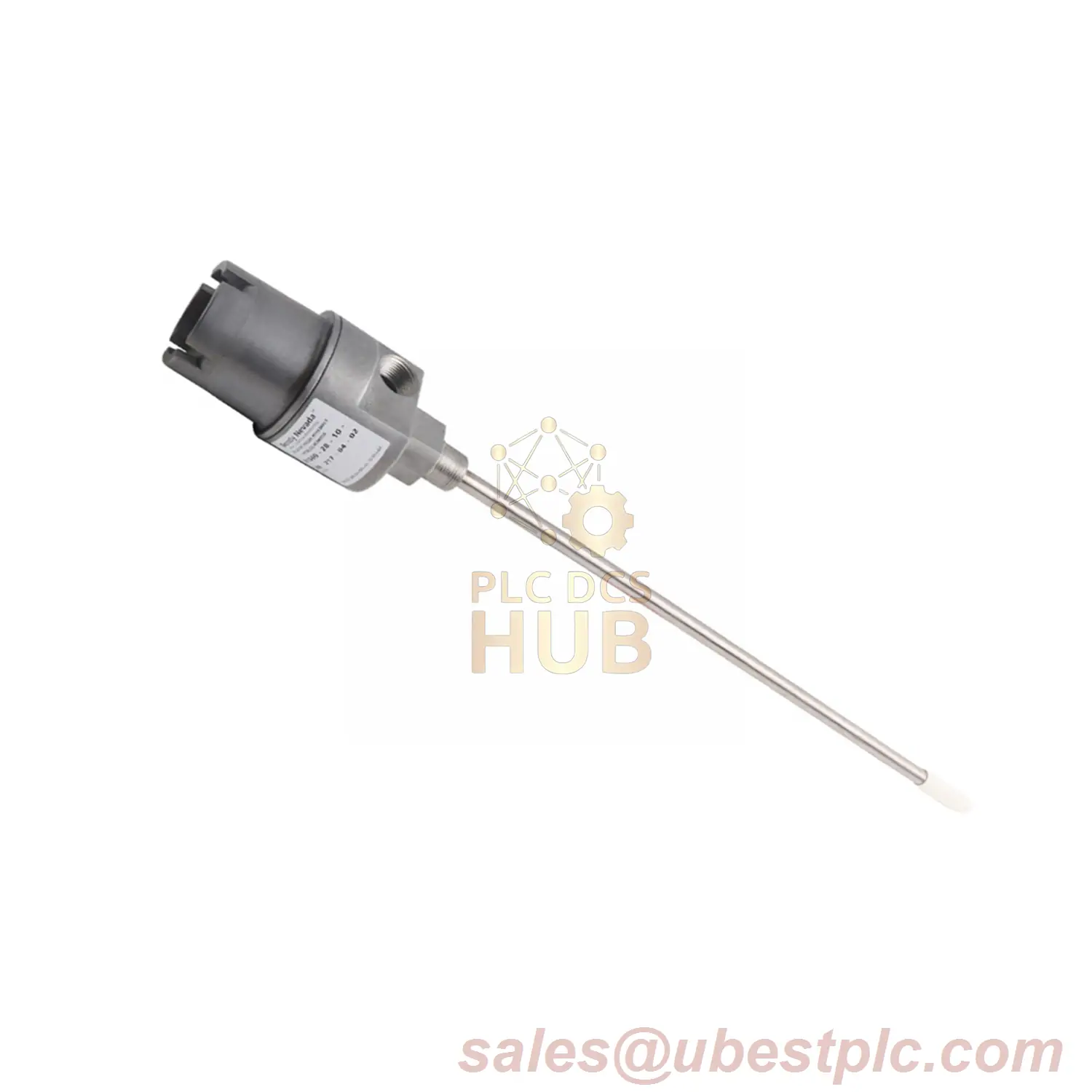

Bently Nevada Proximity Probe – Housing Assembly 21000-16-10-00-089-03-02

Description

Description

The Bently Nevada 21000-16-10-00-089-03-02 Proximity Probe Housing Assembly is a new, factory-sealed solution for precision machinery monitoring in hazardous environments. Designed with an aluminum body and 304 stainless steel sleeve, it ensures durability and compliance with API 670 standards. Ideal for intrinsically safe applications, this assembly includes a reverse-mount proximity probe, optional conduit fittings, and CSA Type 4 explosion-proof certification.

Technical Data

• Brand: Bently Nevada
• Model: 21000-16-10-00-089-03-02
• Range: 8.9 in (226 mm) probe penetration
• Output Signal: Standard 4-20 mA output (compatible with most monitoring systems)
• Operating Temperature: -20°C to +85°C (-4°F to 185°F)
• Cable Length: 1.0 m (39 in)
• Weight: 1.1 kg (2.4 lb), excluding fittings

Suffix Code Breakdown

• 16: 3300 XL 8 mm probe with connector
• 10: 1.0 m cable length
• 00: No standoff adapter
• 089: 8.9 in probe penetration
• 03: Includes 3/4-14 NPT plug, reducer, and cable seal grip
• 02: 3/4-14 NPT mounting thread

Installation & Compatibility

Designed for 3/4-14 NPT threaded mounting, this housing supports 1/8 to 3/8-inch cables. Compatible with Bently Nevada 3300 XL series probes and monitoring systems adhering to API 670 standards.

Certifications

• CSA Type 4 explosion-proof certification
• Compliant with API 670 for machinery protection

Package Contents

• Proximity probe housing assembly
• O-rings and thread seal
• 3/4-14 NPT plug, reducer, and cable seal grip
• Dome cover and probe sleeve

Warranty

12-month factory warranty included. Defects due to material or workmanship are covered.

Application Example

Used in gas turbine vibration monitoring to ensure precise shaft displacement measurements under extreme temperatures and hazardous conditions.

Contact Information

For inquiries, email sales@ubestplc.com.

Check official datasheet to know more detailed information: 21000- 24701- and 164818 Proximity Probe Housing Assemblies Datasheet
