Bently Nevada – Proximity Probe With Armor 330104-00-02-20-01-05

Description

Product Overview

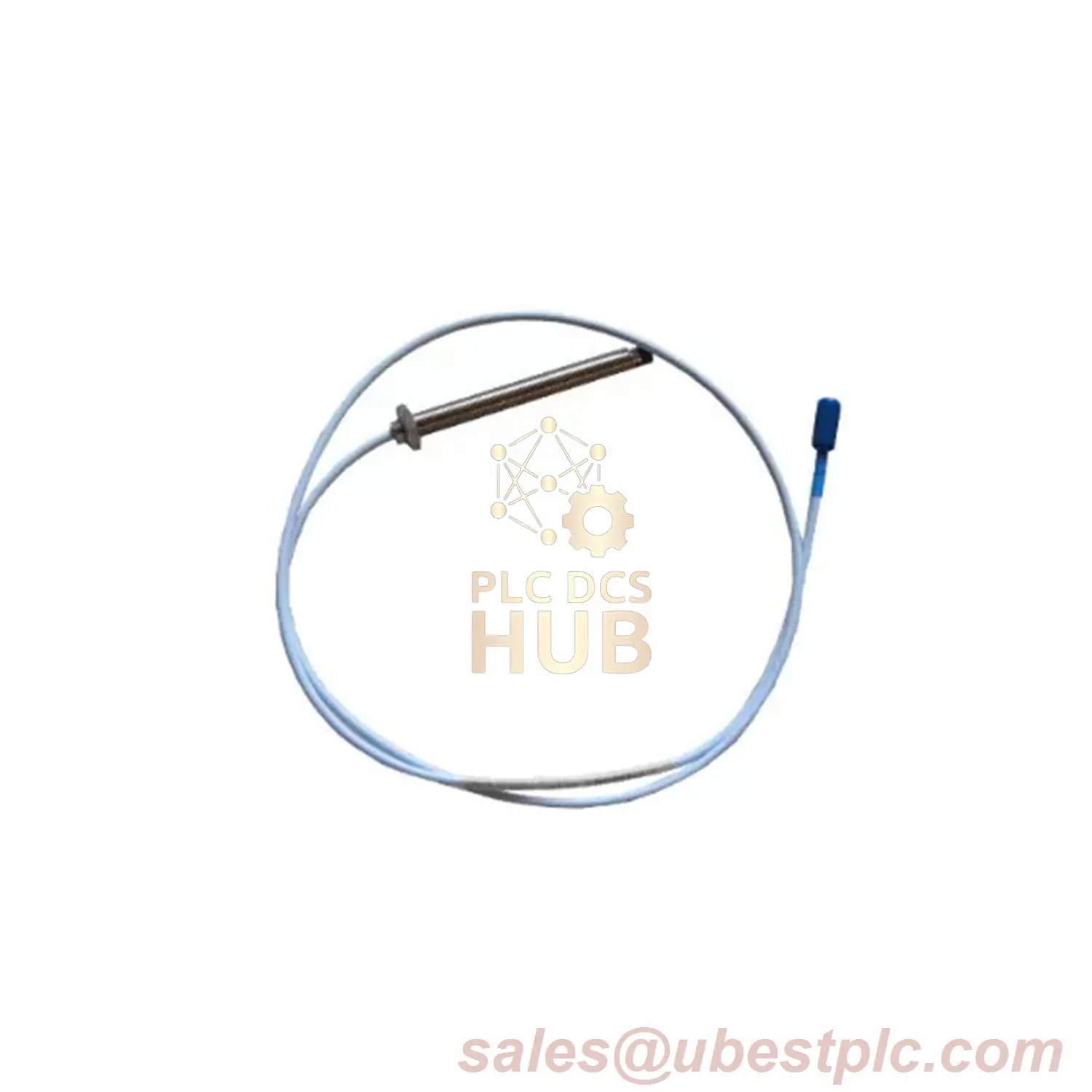

The Bently Nevada 3300 XL 8mm Proximity Probe (Model: 330104-00-02-20-01-05) delivers precise vibration and position measurements for heavy-duty machinery. Built with stainless steel housing and a PPS tip, it resists corrosion and extreme conditions. Features a Vitron® O-ring for secure sealing.

Key Features

• Brand: Bently Nevada
• Full Model Code: 330104-00-02-20-01-05
• Suffix Details:
  • 00: 0mm unthreaded section
  • 02: 2mm case length
  • 20: 2.0m (6.6ft) cable
  • 01: ClickLoc connector with protector
  • 05: CSA/ATEX/IECEx certified

Performance Data

• Operating Gap: 1.27mm (50 mils)
• Cable Resistance: 7.88Ω ±0.50 (2.0m length)
• Voltage Range: -17.5Vdc to -26Vdc
• Output Impedance: 50Ω
• Temp Range: 18°C to 27°C (64°F to 80°F)

Setup Guide

Install using M10x1 threads. Maintain 1.27mm gap from target surface. Check O-ring seal before use.

Works Best With

• Bently Nevada 3300 XL 8mm monitoring systems
• Machinery using AISI 4140 steel targets

Real-World Uses

• Monitoring gearbox alignment in wind turbines
• Detecting conveyor belt slippage in mining equipment
• Measuring fan blade clearance in aircraft engines

Certifications

• CSA
• ATEX
• IECEx

What’s Included

• 1x 8mm probe with 2.0m cable
• Connector protector
• Installation instructions

Warranty

12-month coverage against defects.
