Description
Product Summary

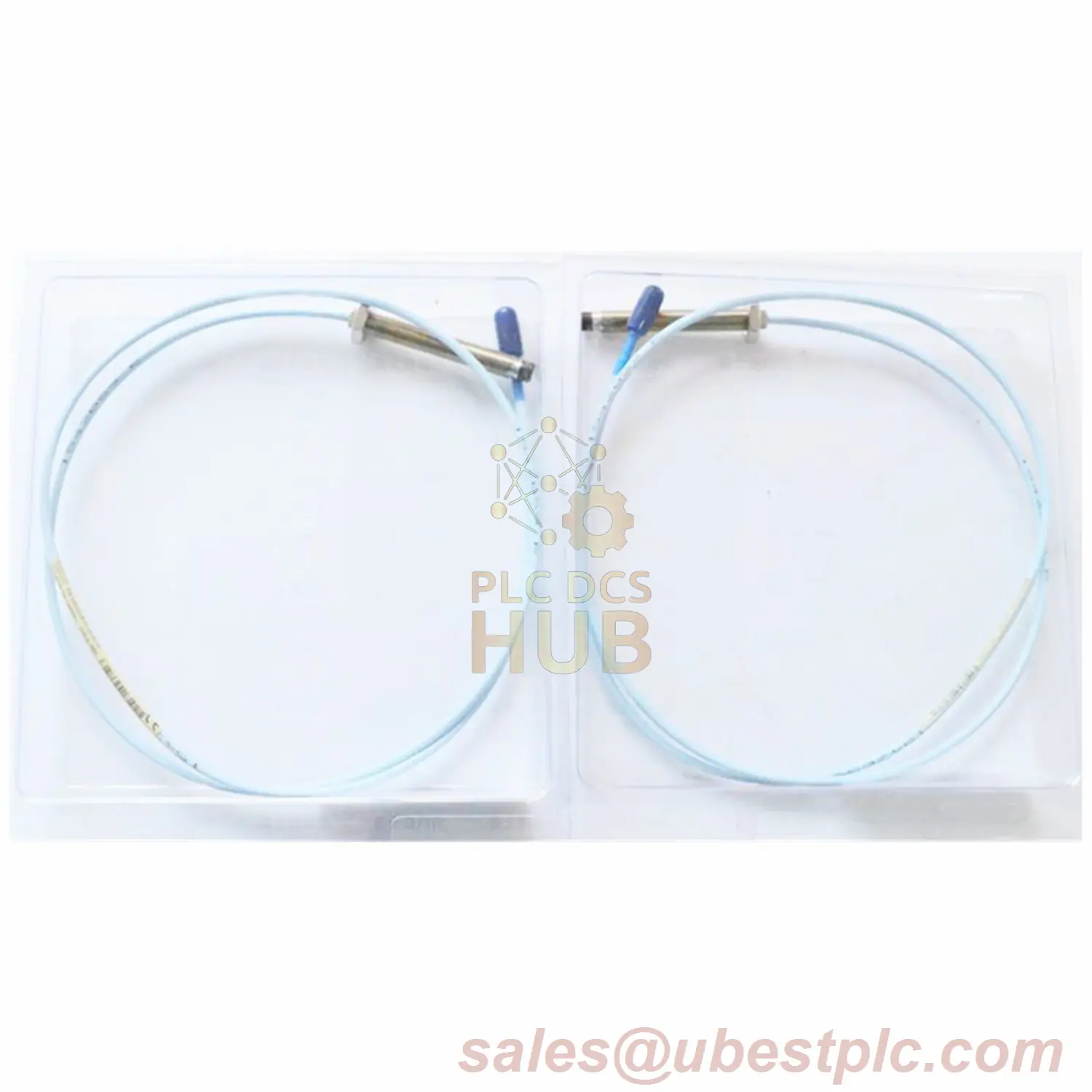

The Bently Nevada 330104-00-40-10-02-00 is an 8 mm industrial proximity probe with a 40 mm extended case for deep mounting. Designed for hazardous environments, it features full M10 threading, Viton® seals, and compatibility with intrinsic safety barriers.
Technical Details
- Brand: Bently Nevada
- Model: 3300 XL 8 mm Proximity Probe
- Full Suffix: 330104-00-40-10-02-00
- Thread: M10 x 1 (0 mm unthreaded)
- Case Length: 40 mm
- Cable: 1.0 m, ClickLoc connector
- Resistance: 7.59 Ω ±0.50 at 1.0 m
- Voltage Range: -17.5 Vdc to -26 Vdc
- Output: -24 Vdc, 50 Ω impedance
- Temp Class: T1 to T5 (-55°C to +232°C)
Installation Notes
- Secure with full M10 threading.
- Use 1.27 mm gap from AISI 4140 steel.
Included Items
- 8 mm Proximity Probe (40 mm case)
- 1.0 m Standard Cable
- ClickLoc Connector
- Viton® O-Ring Kit
Warranty
12-month reliability guarantee.
Industry Applications
- Gas compressor vibration analysis
- Explosion-proof motor monitoring
- Conveyor belt alignment
