Description

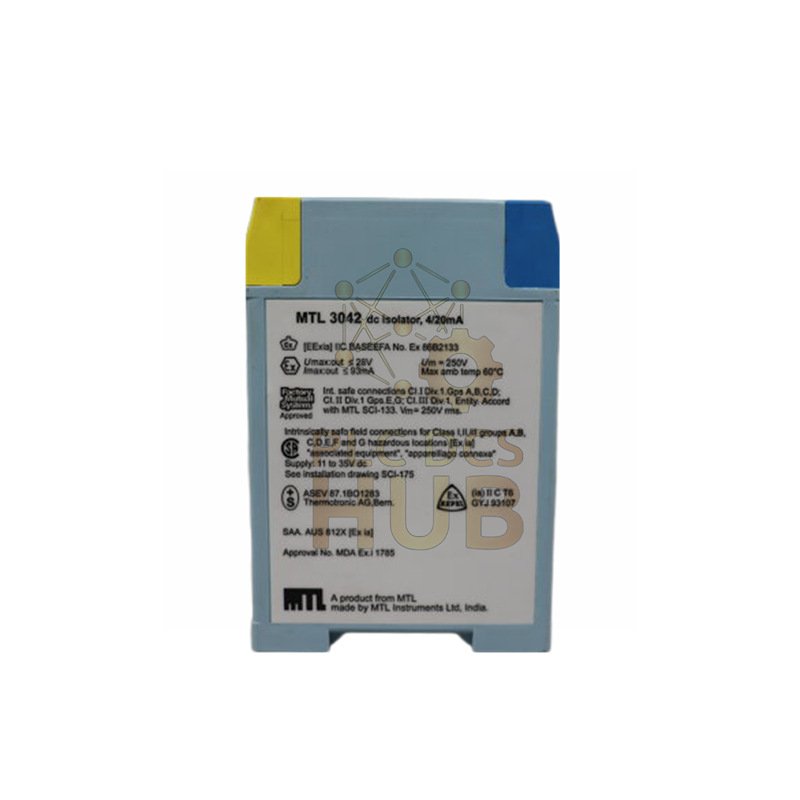

MTL3042 DC Isolator: Simple & Reliable 4-20mA Loop Interface

The MTL3042 is a durable signal isolator. It works like a DC transformer for your 4-20mA loops. It is powered from the safe area and ensures the same current flows on both sides. Use it to drive I/P converters or valve actuators in hazardous areas safely. It is a cost-effective solution for many applications.

Technical Specifications

Brand & Model

MTL MTL3042 Isolator

Input Signal

4 to 20mA

Output Signal

4 to 20mA

Input Voltage

11 to 35V DC

Minimum Output Voltage

4V

Maximum Output Voltage

28V

Accuracy (at 20°C)

Better than 50µA

Temperature Drift

< 2µA/°C

Response Time

~70ms to within 10%

Hazardous Location Rating

Zone 0, IIC, T4-T6 / Div 1, Group A

Installation & Usage

Easy to install on a standard DIN rail. Connect your input wires and your output device. The MTL3042 does the rest. Perfect for driving I/P converters in control loops.

Package & Shipping

Your order includes one MTL3042 unit and a user guide. We ship quickly worldwide using FedEx, UPS, and DHL.

Your Guarantee

This product is covered by a 12-month warranty.
