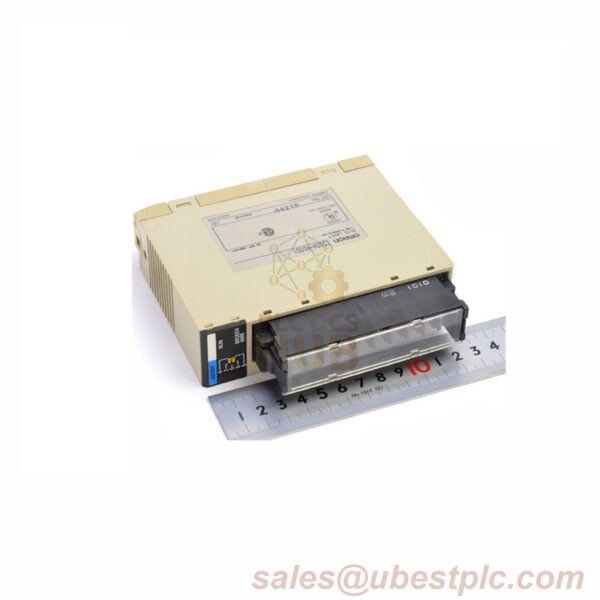

C200H-AD001 Analog I/O Unit Omron

Description

Overview

The OMRON C200H-AD001 Analog I/O Unit is a versatile and reliable component designed for efficient control in industrial automation systems. With 24 input points and 16 output points (transistor type, sourcing), this unit offers excellent data handling capabilities and quick response times. Its programming memory capacity of 10K steps and data storage capacity of 8K words ensures optimal performance for medium-scale automation tasks.

Key Features

• Input Points: 24
• Output Points: 16 (transistor type, sourcing)
• Power Supply: AC 100-240V
• Memory Capacity: 10K steps for programming
• Data Storage Capacity: 8K words
• Response Times:
  • ON Delay: Maximum 0.1 ms
  • OFF Delay: Maximum 0.3 ms
• Leakage Current: Maximum 0.1 mA
• Internal Current Consumption: Maximum 240 mA at DC 5V
• Maximum Switching Capacity: 0.5A at DC 24V (+10% -15%)
• Standard Instructions: Includes LD (load), LD NOT (inversion), AND, OR, and END for easy programming
• LCD Display: Optional, simplifies setup and maintenance
• Structured Text (ST) Language Support: Enhances mathematical operations and algorithm handling
