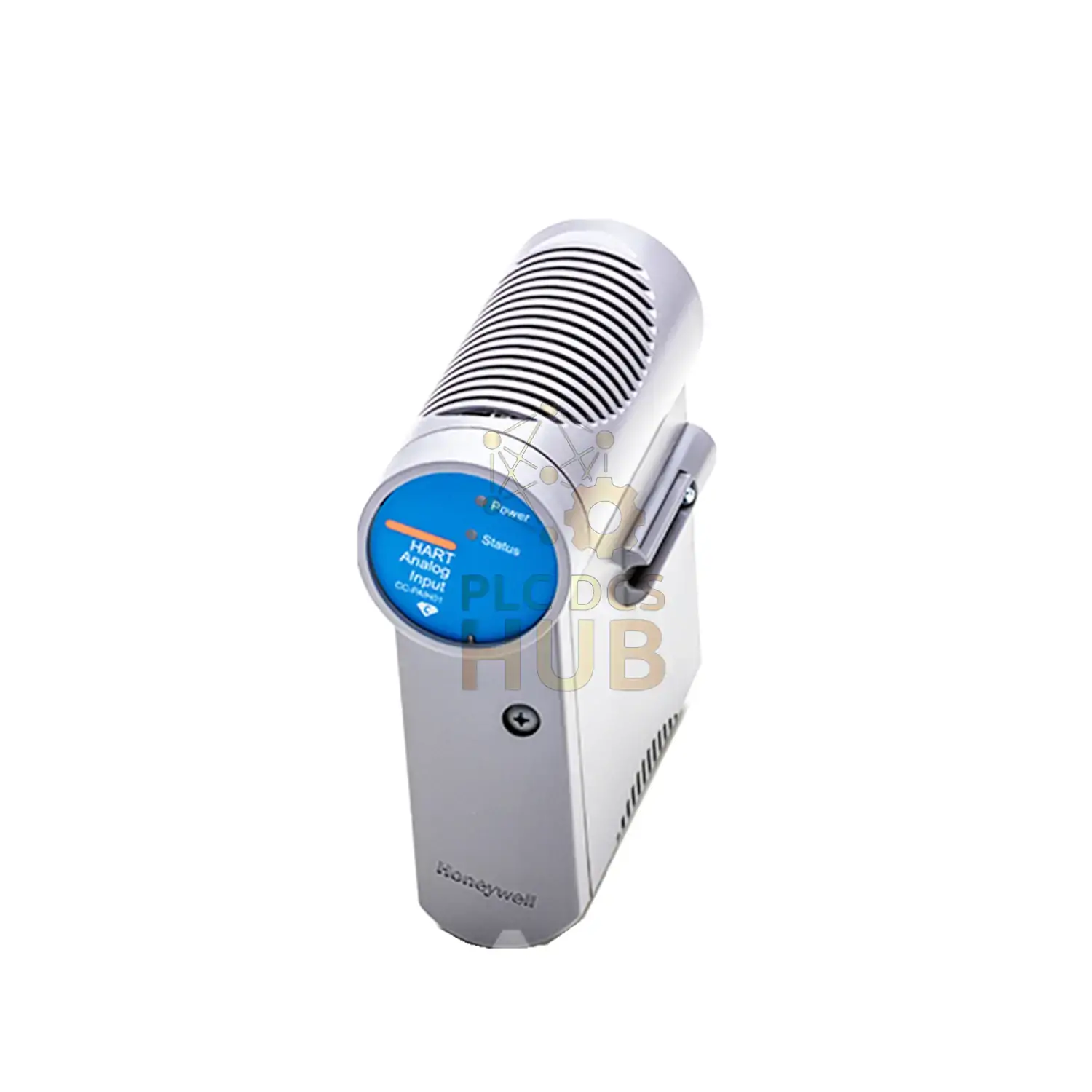

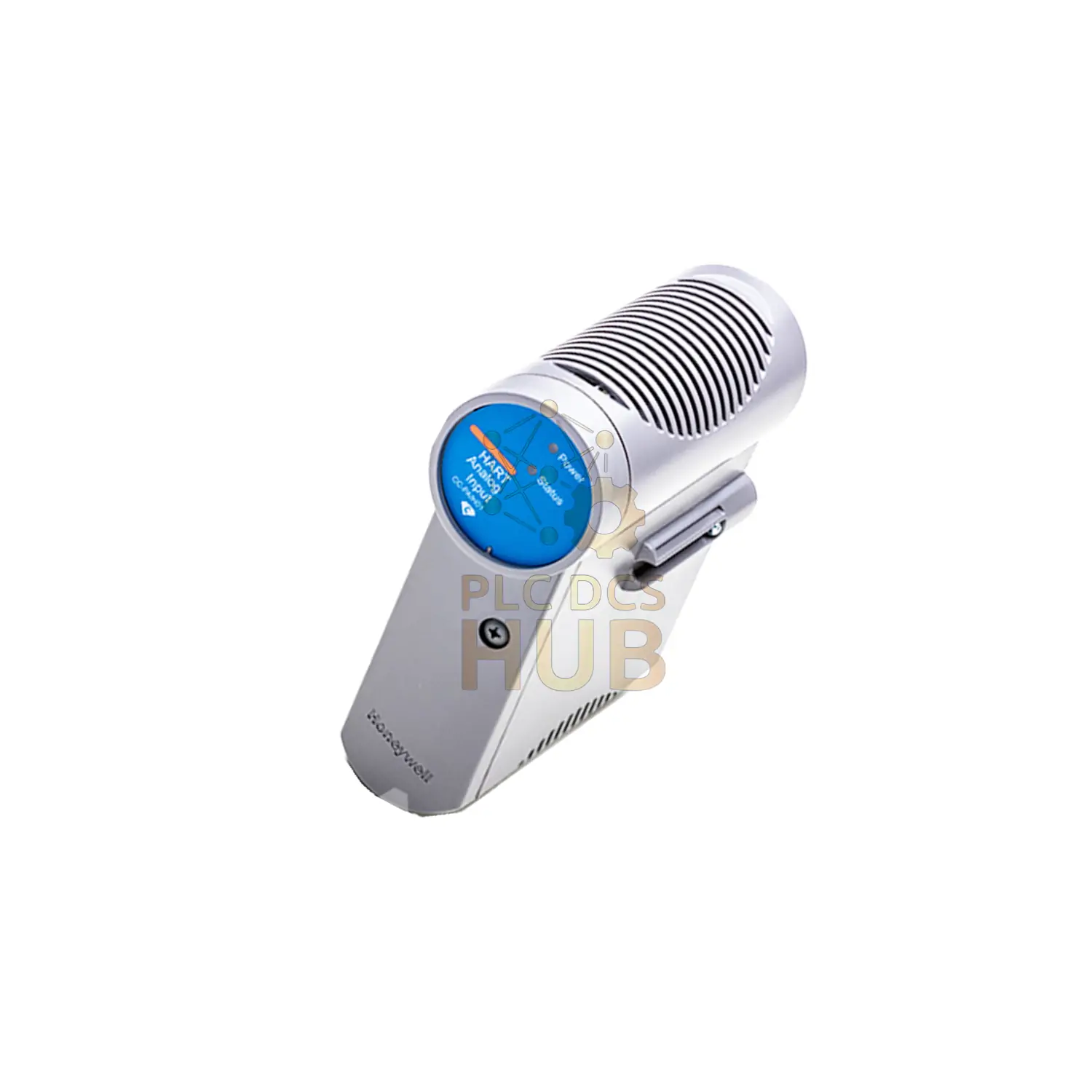

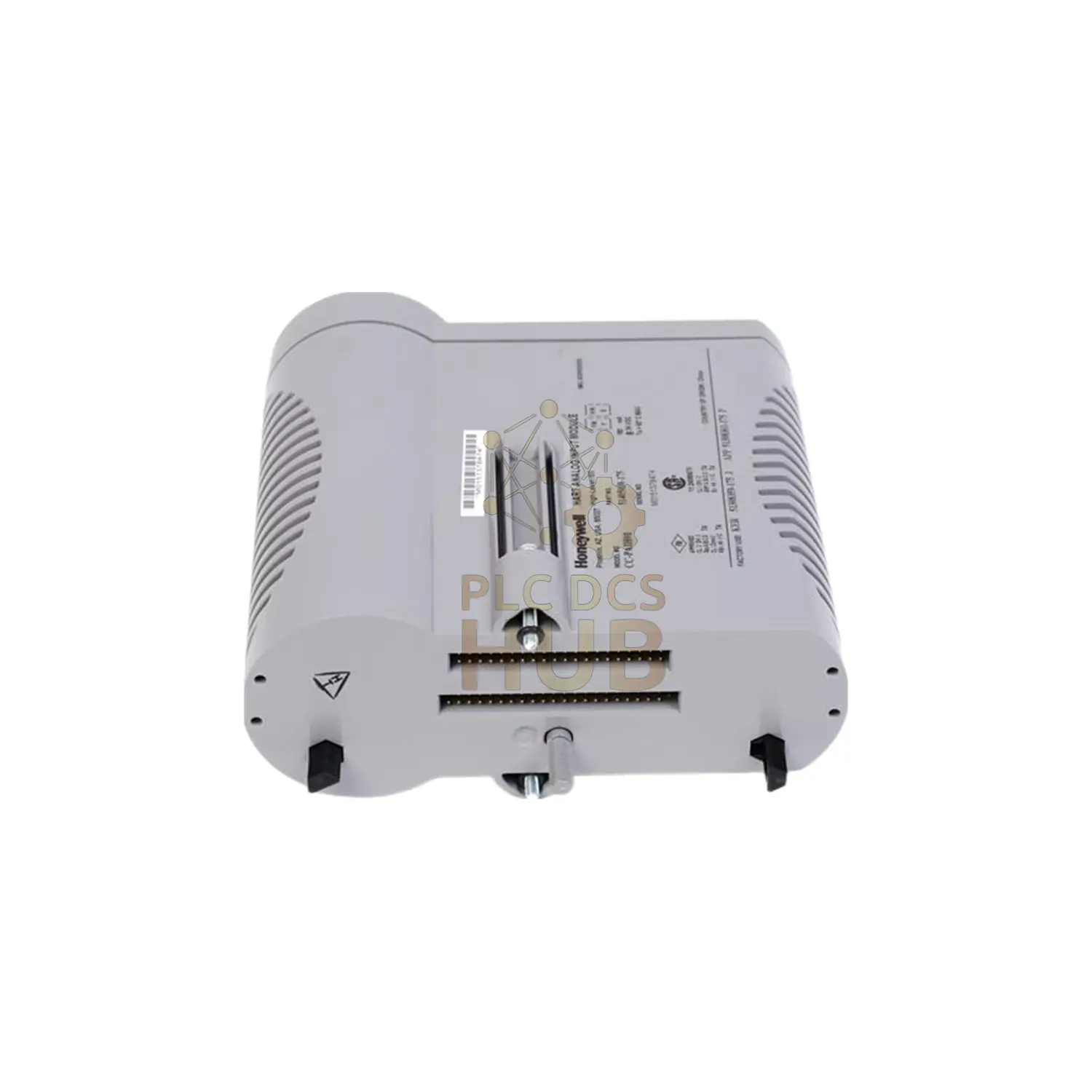

Honeywell CC-PAIH01 – Precision Analog Input Module with HART
Built for Demanding Environments
Monitor critical process variables in oil refineries, chemical plants, or pharma facilities with this 16-bit resolution module. Features HART protocol support and Class 1 Div 2 safety.
Top Performance Features
- ✅ 16-bit Accuracy: ±0.075% FS (at 23.5°C)
- ✅ 50ms Scan Speed: Fast data capture
- ✅ 70dB Noise Rejection: Stable in EMI-heavy areas
- ✅ Non-Incendive Power: Safe for explosive zones
Technical Specs
- Model Options: CC-PAIH01 (non-redundant), CC-PAIH02 (1-channel), CC-TAIX11 (redundant)
- Inputs: 4-20mA, 0-5V, 1-5V (via 250Ω)
- Channels: Up to 16 (12 SE / 4 Diff)
- Protections: Open-wire detection, ±30V surge tolerance
- Temp Range: 0°C to 60°C operation
Why Engineers Trust This Module
- ⚡ Zero Fuses Needed: Built-in current limiting
- ⚡ Hot-Swap Ready: Replace without shutdown
- ⚡ HART Digital Signals: Pair with smart transmitters
Certified & Ready to Ship
- ???? Includes: Module, safety guide
- ???? CE/ATEX/IECEx certified
- ???? FedEx/DHL: Delivered in 3-5 days
- ???? 1-year warranty
FAQs
Q: Works with 3-wire transmitters?
A: Yes – supports 2-wire and self-powered devices.
Q: Redundancy setup time?
A: <5 minutes via Experion PKS software.
