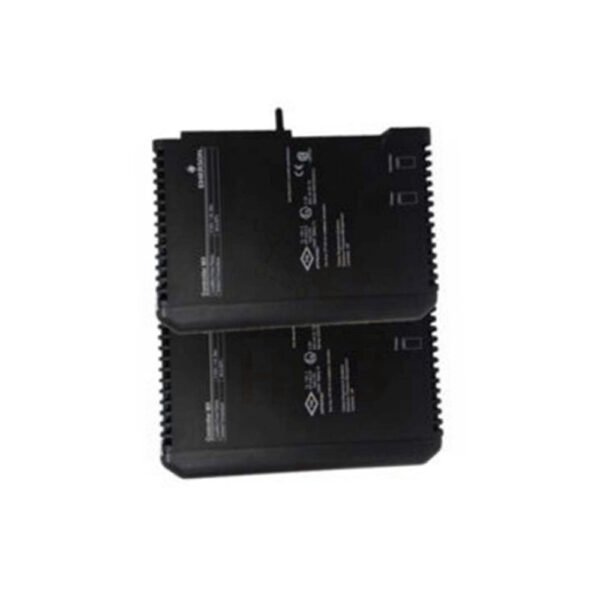

Emerson SE4003S2B11 is an Analog Input Plus Card. It has 16 channels for 4-20 mA signals. It supports HART communication. Use it with P+F HiC IS barriers and termination boards. This card fits DeltaV™ S-series systems. It is modular, rugged, and easy to install.
For inquiries: +86 158 8020 0923 (WhatsApp)
Key Features
- 16 channels for 4-20 mA input
- Supports 2-wire and 4-wire transmitters (Plus Card)
- HART pass-through for AMS Device Manager
- 48-pin AI Mass Terminal Block connection
- Works with P+F HiC IS barriers and termination boards
- Modular design for flexible installation
- Snap-in retention for quick mounting
- Hot-swappable – remove without disconnecting wires
- 1:1 redundancy support
Technical Specifications
- Brand: Emerson
- Model Number: SE4003S2B11
- Series: DeltaV™ S-series Traditional I/O
- Type: Analog Input Plus Card
- Channels: 16
- Input Type: 4 to 20 mA (span), 2-wire and 4-wire
- Full Signal Range: 2 to 22 mA (with over range check)
- Transmitter Power: 13.5 V min at 20 mA (max 29 mA limited)
- Accuracy: 0.2% of span over temp range
- Repeatability: 0.05% of span
- Resolution: 16-bit A/D converter
- Roll-off Frequency: -3 dB at 2.7 Hz; -20.5 dB at 20 Hz
- Calibration: None needed
- Local Bus Current (12V DC): Simplex 85 mA typ / 150 mA max; Redundant 110 mA typ / 200 mA max
- Field Circuit Power: 500 mA max @ 24V DC (±10%)
- Isolation: Each channel optically isolated. Tested to 1000V DC.
- HART Scan Time: 600–800 ms per enabled channel
Installation & Compatibility
- Fits any of 64 slots in S-series carrier
- Use with 48-pin AI Mass Terminal Block
- Requires P+F HiC IS barriers and termination boards
- Compatible with DeltaV™ DCS
- No wire disconnection when removing module
- Field-mountable – handles harsh environments
- Supports online expansion without system shutdown
Performance & Reliability
- Accuracy stays stable across temperature changes
- Anti-aliasing filter reduces noise
- Optical isolation protects system from field faults
- Redundancy option increases uptime
- No manual calibration – saves maintenance time
- Plug-and-play detection for fast setup
HART Communication
- HART pass-through for AMS Device Manager
- Reads HART variables and status for control
- Scan time: 600–800 ms per channel (typical)
- Use for smart transmitter configuration and diagnostics
Typical Applications
- Process control in oil & gas
- Chemical plant monitoring
- Power generation
- Water and wastewater treatment
- Pharmaceutical manufacturing
- Any DeltaV™ system needing analog input expansion
Package Contents
- 1 x SE4003S2B11 Analog Input Plus Card
- Installation guide
- No terminal block included (order separately)
Warranty & Shipping
- Warranty: 12 months against defects
- Shipping: FedEx, UPS, DHL – fast worldwide delivery
Frequently Asked Questions (FAQ)
- What is the difference between Plus Card and standard card?
- Plus Card supports 4-wire transmitters. Standard card supports 2-wire only.
- Can I replace this card while the system is running?
- Yes. S-series supports hot-swap. No need to disconnect wires.
- Do I need a separate power supply for field devices?
- Yes. The card needs 24V DC field power (500 mA max).
- How do I connect HART devices?
- Use HART pass-through via AMS Device Manager. The card reads HART variables automatically.
- Is this card compatible with older M-series?
- No. This is S-series. Use with S-series carriers and terminal blocks.
- What is the maximum cable length?
- Follow DeltaV™ wiring guidelines. Keep field wiring short for best accuracy.
- How do I check if my channel is working?
- Use DeltaV™ diagnostics. The card reports over range and fault status.
- Can I use this with Versamax systems?
- No. This card is for DeltaV™ only. See Versamax for GE systems.
Buying Guide
- Check if you need 2-wire or 4-wire transmitter support. Choose Plus Card for 4-wire.
- Confirm your carrier is S-series. M-series carriers are not compatible.
- Order the 48-pin AI Mass Terminal Block separately if you don’t have one.
- Need HART? This card supports pass-through and variable reading.
- For redundant systems, order two cards and configure 1:1 redundancy.
- New to DeltaV™? Start with one card and expand online later.
- Contact us for bulk orders or custom configuration.
