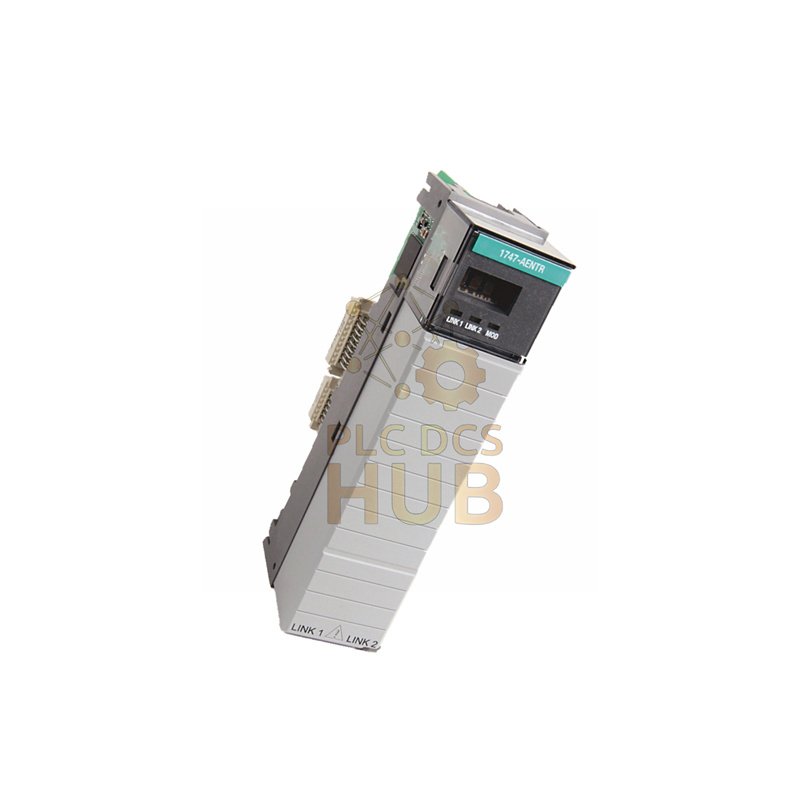

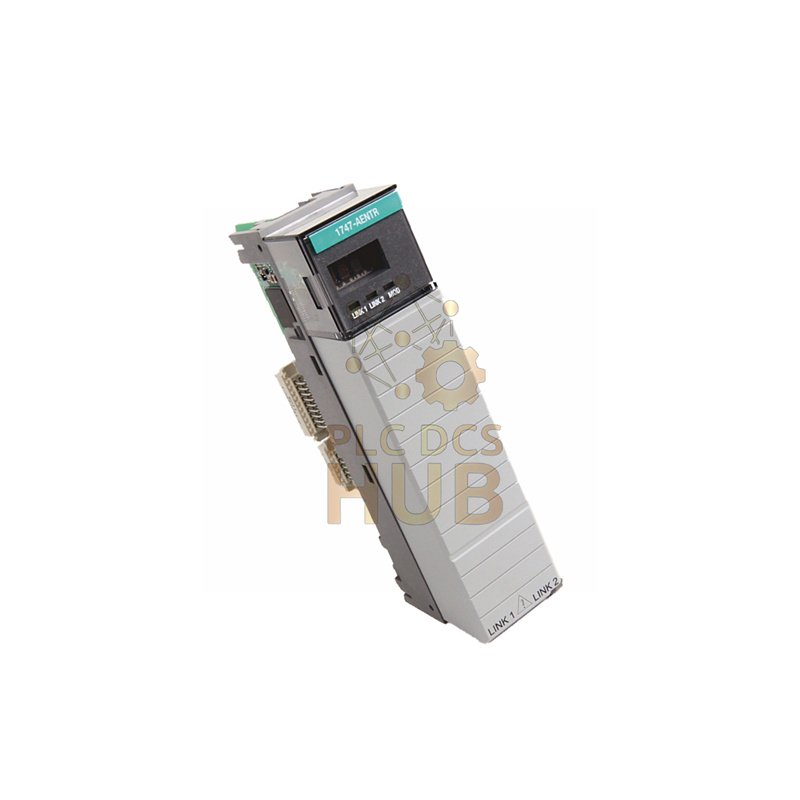

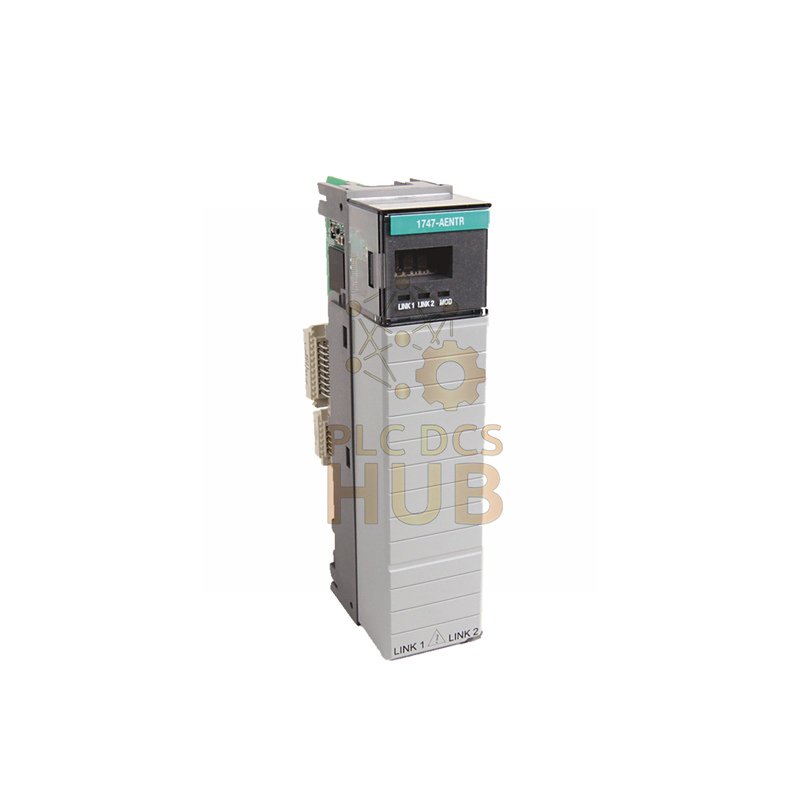

Allen-Bradley 1747-AENTR SLC 500 Ethernet/IP Adapter Module
The Allen-Bradley 1747-AENTR is a powerful Ethernet/IP communication gateway for SLC 500 systems. It enables seamless integration of legacy SLC I/O into modern Logix control platforms. For detailed configuration and migration guides, download the comprehensive manual here.
Key Technical Specifications
-
Brand: Allen-Bradley
-
Model: 1747-AENTR
-
Module Type: Ethernet/IP Adapter
-
Ethernet Ports: 2 embedded switch ports
-
Communication Speed: 10/100 Mbps (half/full duplex)
-
Network Topologies: Star, Tree, Linear, Ring
-
Backplane Current: 470 mA at 5V DC
-
Thermal Dissipation: 2.49 Watts
-
Isolation Voltage: 50V continuous
-
Chassis Slot Requirement: Slot 0 (leftmost)
Environmental & Physical Specifications
-
Operating Temperature: 0 to 60°C (32 to 140°F)
-
Storage Temperature: -40 to 85°C (-40 to 185°F)
-
Humidity Range: 5% to 95% (non-condensing)
-
Dimensions: 145.3 x 34.8 x 130.8 mm (5.72 x 1.37 x 5.15 in)
-
Weight: 0.37 lbs (168 grams)
-
Enclosure Type: Open
-
Connector Type: RJ-45 (Category 5 cable)
Frequently Asked Questions (FAQ)
-
What controllers can communicate with this adapter?
The module works with CompactLogix and ControlLogix processors for I/O control. -
Can I use this module in any slot of the SLC chassis?
No, you must install it in Slot 0 (the leftmost slot) for proper operation. -
What network topologies does this adapter support?
It supports linear, star, tree, and ring topologies using standard Ethernet cabling. -
Do both Ethernet ports function simultaneously?
Yes, the embedded dual ports act as a switch for daisy-chaining multiple devices. -
What happens to my existing SLC I/O when using this adapter?
Your existing SLC I/O modules remain in place and become controlled by the Logix processor.
