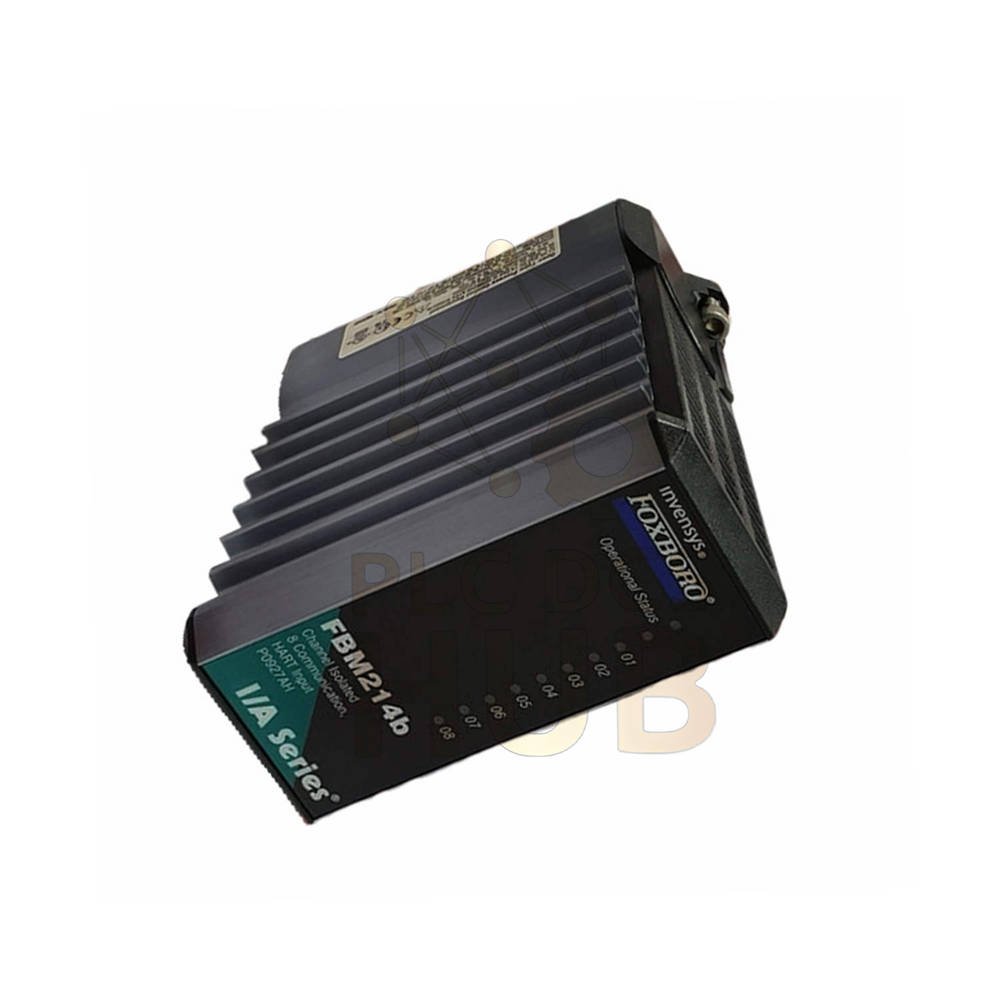

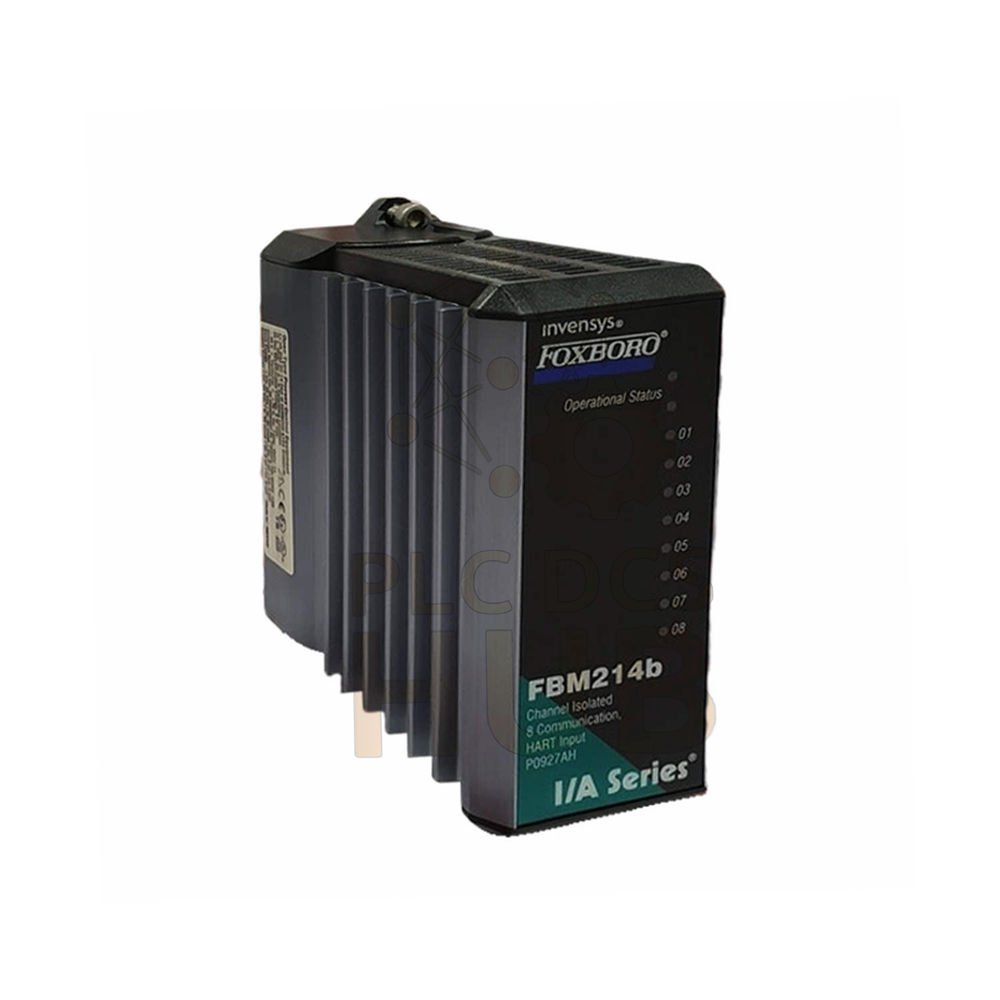

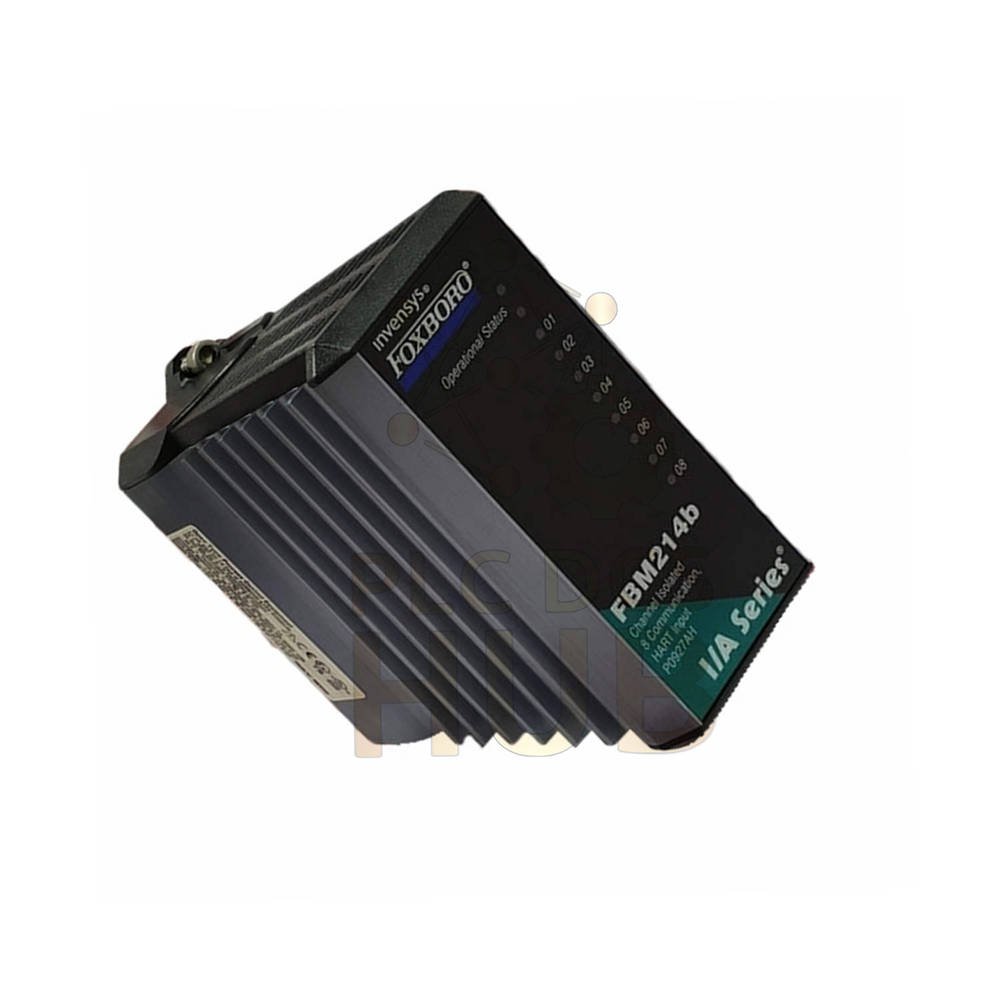

FBM214B P0927AH Honeywell Foxboro Communication Input Module

Description

Product Overview

FBM214B P0927AH is a reliable communication input module from the Foxboro control platform.
It supports eight isolated input channels.
Each channel works independently.
This design improves signal stability and system safety.

• Brand: Honeywell
• Model: FBM214B P0927AH
• Series: Foxboro I/O Module
• Type: Communication Input Module
• Channels: 8 individually isolated inputs

The module connects field signals to the control system.
It helps transmit data between field devices and controllers.
Engineers use it in process automation environments.

Core Functional Structure

• Input Interface Layer
  • 8 independent communication channels
  • Electrical isolation between channels
  • Improved signal integrity
• Power Management
  • Redundant 24 V DC power input
  • Low energy consumption
  • Stable heat dissipation design
• Industrial Communication Layer
  • Supports reliable signal transmission
  • Optimized for process control networks
  • Stable operation under vibration conditions

Technical Specifications

• Manufacturer: Honeywell
• Model: FBM214B P0927AH
• Channel Capacity: 8 isolated communication inputs
• Power Input
  • Voltage Range: 24 V DC (+5% / -10%)
  • Power Consumption: 7 W maximum
  • Heat Dissipation: 4 W maximum
• Operating Conditions
  • Operating Temperature: -20°C to +70°C
  • Relative Humidity: 5% to 95% noncondensing
  • Operating Altitude: -300 to 3000 m
• Storage Conditions
  • Storage Temperature: -40°C to +70°C
  • Humidity Range: 5% to 95% noncondensing
  • Storage Altitude: -300 to 12000 m
• Mechanical Performance
  • Vibration Resistance: 7.5 m/s² from 5 to 500 Hz
• Connector Interface
  • Baseplate End: 37-pin D-sub connector
  • Termination End: 25-pin D-sub connector
• Dimensions
  • Height: 102 mm
  • Height with lugs: 114 mm
  • Width: 45 mm
  • Depth: 104 mm
• Weight
  • Module Weight: approx. 284 g
  • Termination Assembly Weight: approx. 181 g

Typical Equipment and Applications

• Distributed Control Systems (DCS)
• Process automation plants
• Oil and gas facilities
• Power generation plants
• Chemical processing systems
• Industrial data acquisition networks

The module collects communication signals from field devices.
It sends this data to the control system.
Engineers use the data for monitoring and diagnostics.

Diagnostic Capability

• Detects abnormal communication signals
• Helps identify wiring problems
• Supports stable signal isolation
• Improves system fault detection

These features help engineers find system problems early.
This reduces downtime in critical processes.

Manager’s Insight

Plant managers value the FBM214B P0927AH for its stability.
The isolated channel design protects the control network.
It reduces electrical noise between signals.
The compact size also saves cabinet space.
This module fits well in large DCS systems.
It works reliably in high-temperature industrial environments.

Shipping and Warranty

• 12-month warranty after delivery
• Carefully packed industrial shipment
• Express delivery options available
• Courier services: FedEx, UPS, DHL

Professional FAQ

• How many communication channels does the module support?
  The module supports eight fully isolated communication input channels.
• What is the advantage of channel isolation?
  Isolation prevents electrical interference between signals and improves system reliability.
• What environment is suitable for this module?
  It operates well in industrial control cabinets with temperatures from -20°C to +70°C.
• How do I choose the correct module for my system?
  Check the control platform compatibility and required number of communication inputs.
• What should engineers check before installation?
  Verify power supply voltage, connector type, and cabinet temperature conditions.
