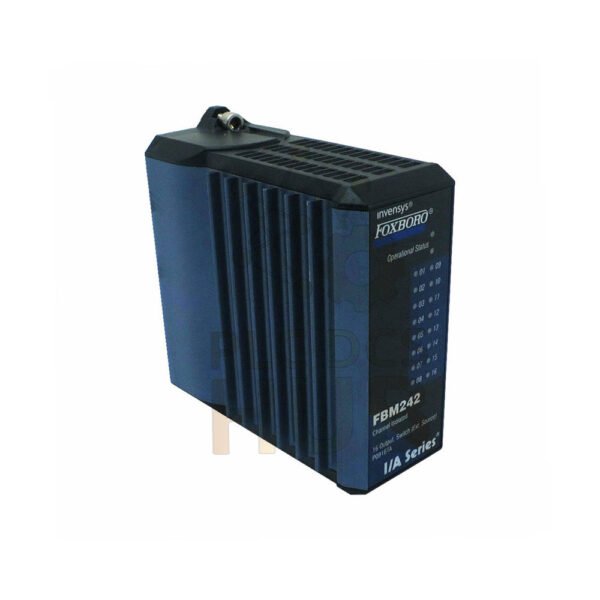

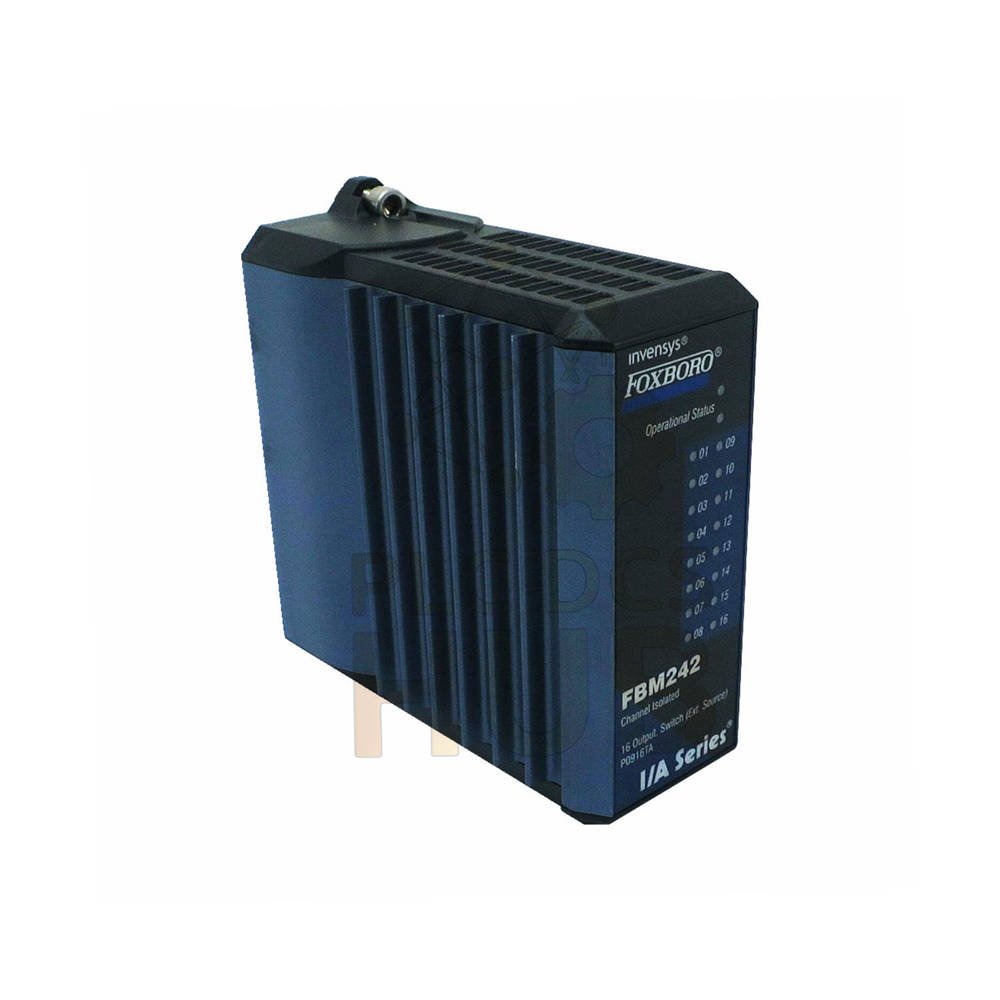

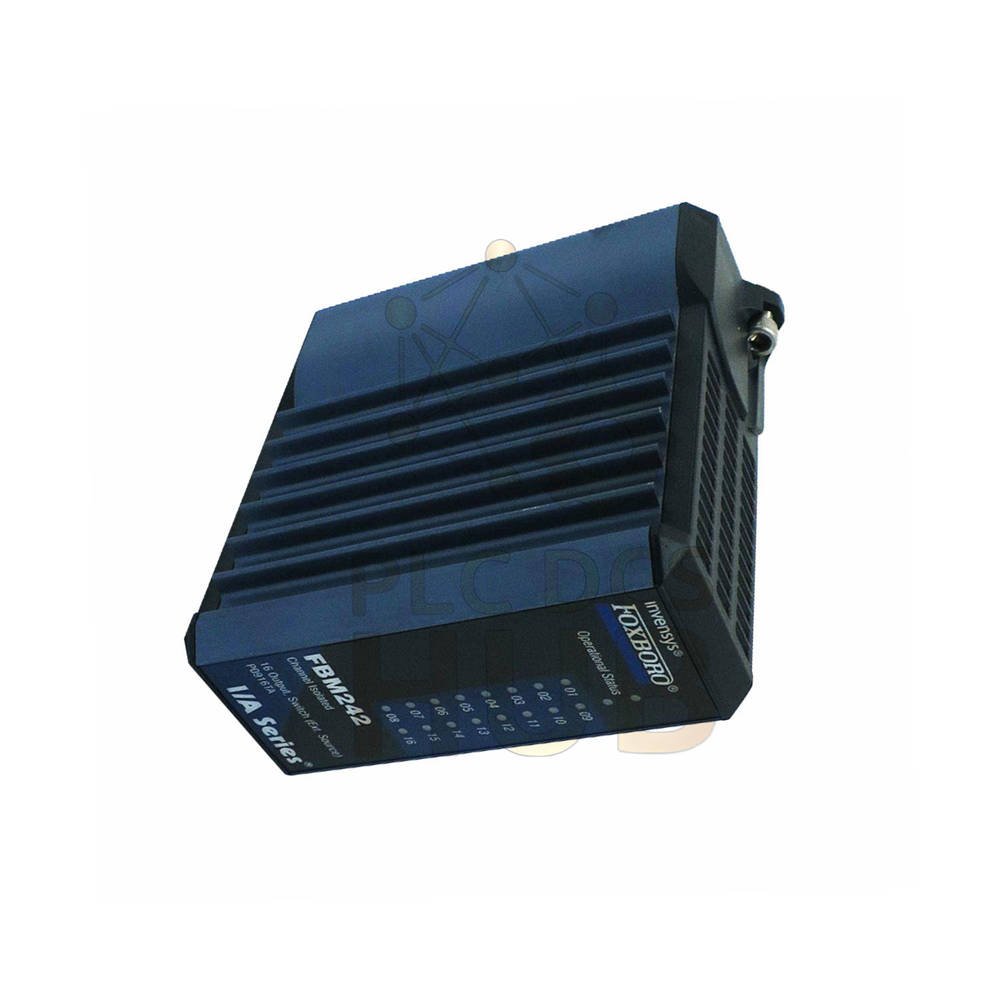

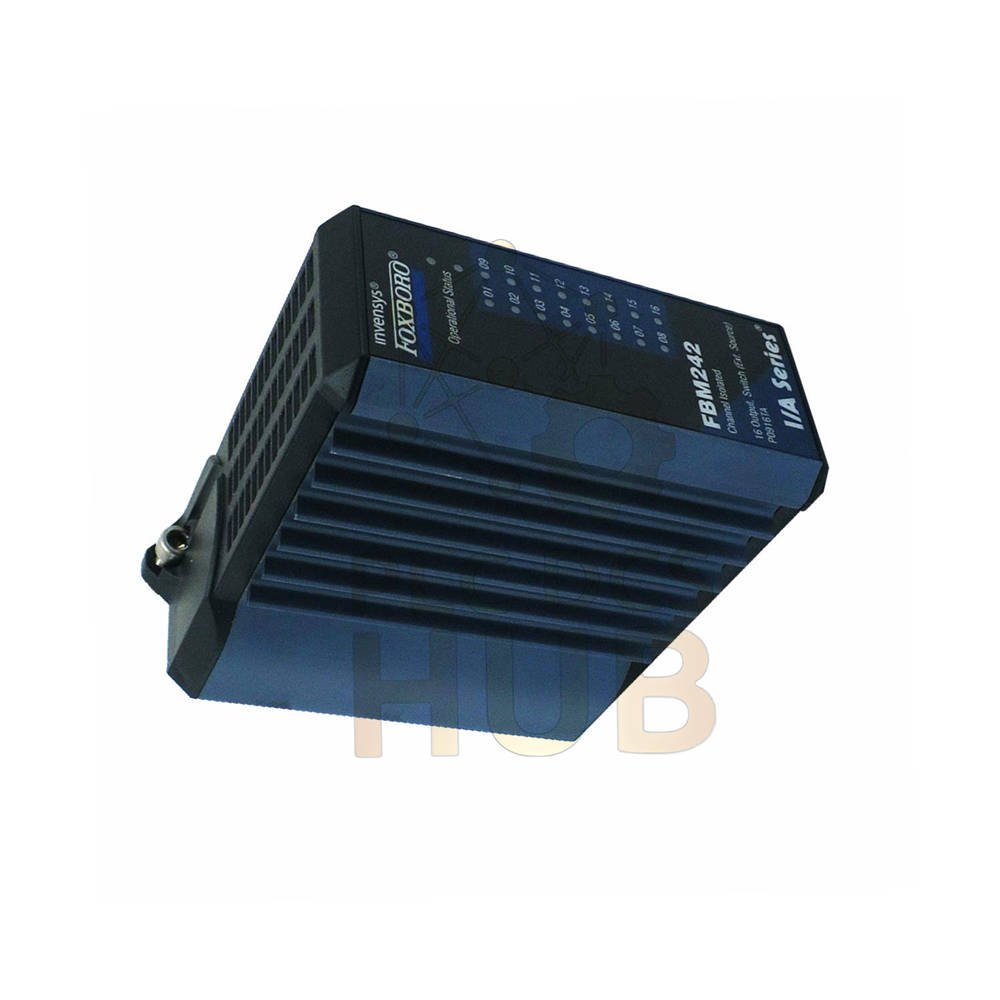

FBM242 is a discrete output module used in Honeywell Foxboro control systems.
It sends control signals from the controller to field devices.
This module supports reliable switching operations in industrial automation.
- Brand: Honeywell
- Model: FBM242
- Series: Foxboro I/O Module
- Type: Discrete Output Module
- Application: Industrial control signal output
The module helps operate valves, relays, motors, and alarms.
Its strong structure ensures stable work in harsh environments.
Engineers often use it in large process control systems.
Hardware Structure
- Output Connection Layer
- 16 output connection positions
- Supports switch, solid-state, and relay outputs
- Flexible wiring arrangement
- Power Distribution Section
- Two-tier distribution layout
- Four positions for power connection
- Improves wiring efficiency
- Field Termination Design
- Compression type terminals
- Easy installation and maintenance
- Reliable electrical contact
Key Technical Specifications
- Manufacturer: Honeywell
- Model: FBM242
- Module Type: Digital Discrete Output
- Construction Material
- Polyamide (PA) housing
- High durability industrial design
- Module Weight
- Main module: 284 g
- 127 mm unit: 272 g
- 148 mm unit: 285 g
- 216 mm unit: 320 g
- Terminal Configuration
- 16 output terminal positions
- 2 tiers for switch and solid-state outputs
- 3 tiers for relay outputs
- Power Distribution Terminals
- 2 tiers
- 4 positions for power wiring
- Field Wiring Compatibility
- Solid or stranded wire: 0.2 to 4 mm²
- AWG range: 24 to 12 AWG
- Ferrule wire: 0.2 to 2.5 mm²
- Termination Type
- Compression connection
- Stable industrial wiring design
Typical Equipment Applications
- Industrial process control systems
- Distributed control systems (DCS)
- Factory automation lines
- Power plant control cabinets
- Chemical production monitoring systems
- Oil and gas control platforms
The module sends commands to field equipment.
It controls switching operations for industrial devices.
Diagnostic and Control Capability
- Stable digital output transmission
- Reliable switching control
- Supports accurate actuator commands
- Improves automation system response speed
These features help maintain stable plant operation.
They also reduce system control errors.
Manager’s Insight
The FBM242 output module is widely used in Foxboro systems.
Plant engineers like its simple wiring design.
The compression terminals reduce installation time.
The polyamide housing increases durability.
It performs well in long-term industrial operation.
For large control cabinets, it offers reliable digital signal output.
Shipping and Warranty
- 12-month product warranty
- Orders ship within 24–48 hours
- Secure industrial packaging
- Courier options: FedEx, UPS, DHL
Professional FAQ
- What devices can this module control?
It can control relays, indicator lights, alarms, and actuator switches. - What wiring size is recommended for installation?
Engineers usually select 0.5 to 2.5 mm² wires for stable industrial connections. - How do I confirm compatibility with my control system?
Check the Foxboro system architecture and I/O slot configuration. - What maintenance is recommended for output modules?
Inspect terminals regularly and ensure wiring remains tight. - How should I choose between relay and solid-state output types?
Relay outputs suit high load switching.
Solid-state outputs work better for fast control signals.
