Description
Product Introduction

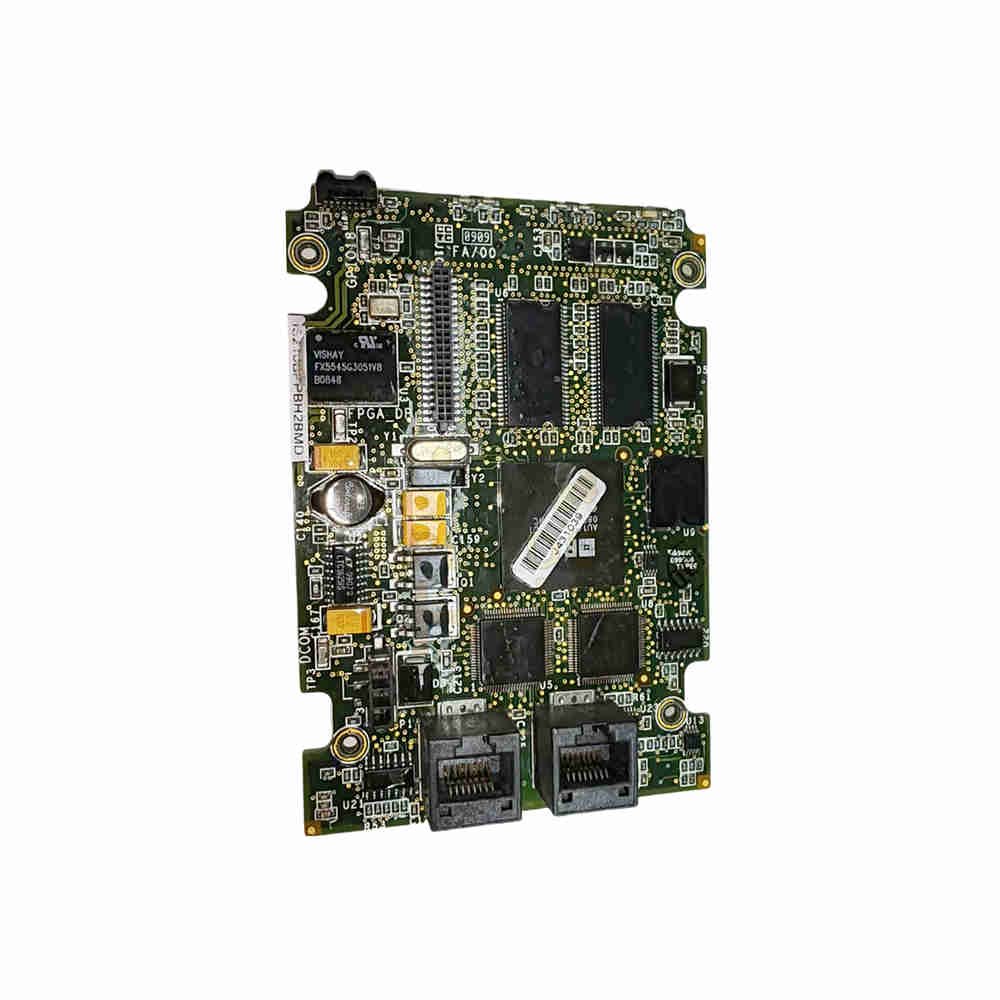

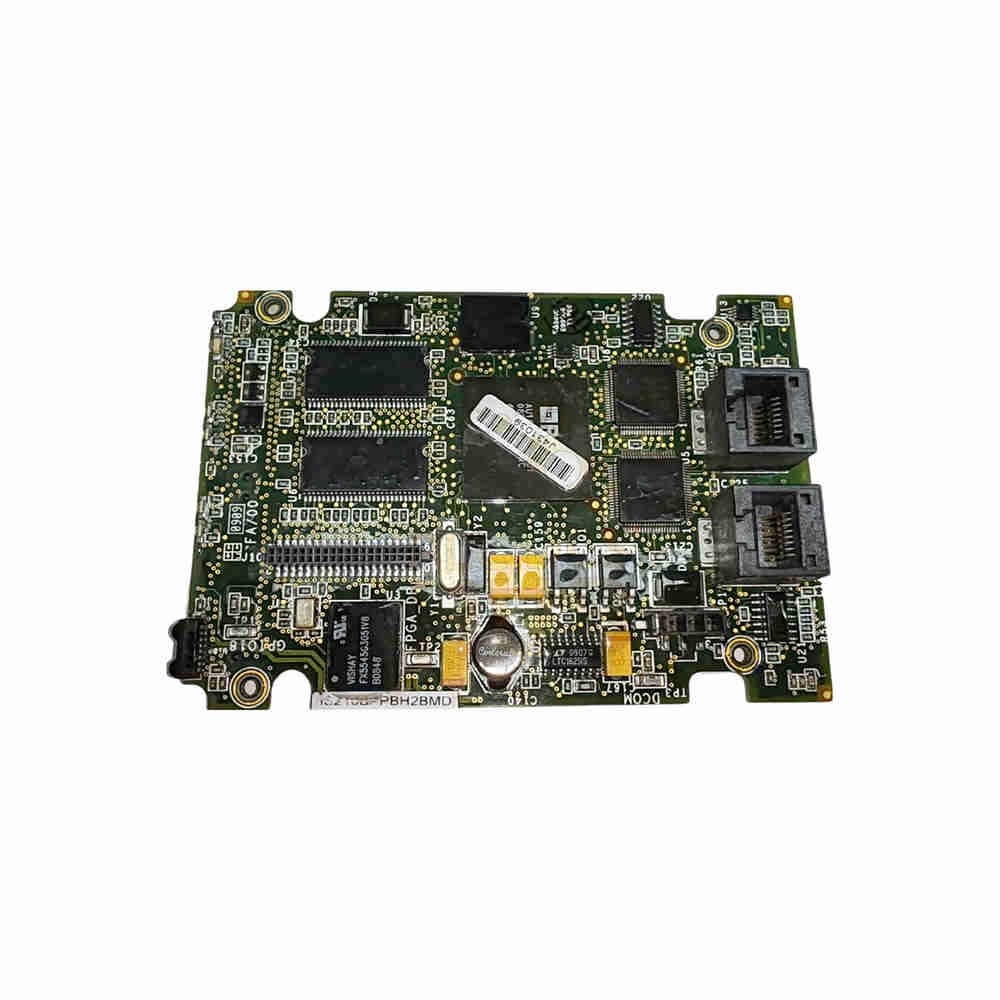

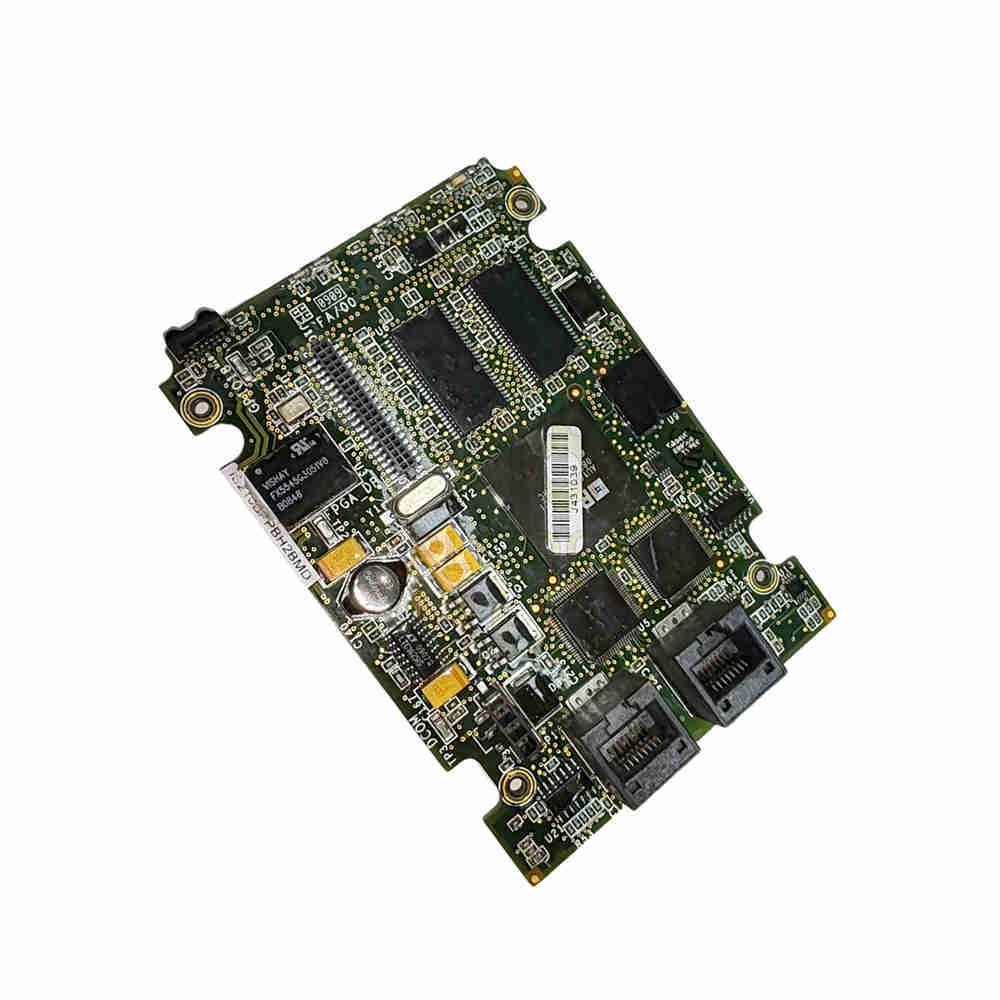

The GE IS210BPPBH2BMD is a Mark VI Speedtronic board. General Electric designed it for steam and gas turbine management. The Mark VI system is GE’s fifth Speedtronic release. This small auxiliary board connects to a larger WETA board. It helps operators access turbine data and alarm states.
Quick Specs at a Glance
- Brand: General Electric
- Model: IS210BPPBH2BMD
- Series: Mark VI Speedtronic
- Functional Abbreviation: BPPB
- Assembly Type: IS210 Special Assembly
- Revisions: Total of 3 revisions
- Backwards Compatibility: Works with first 2 revisions
- Group: Mark VI Series Group 2
- PCB Coating: Conformal coating applied
Hardware Features
- Mounting Method: Four screws through drilled holes near corners
- Screw Connection: Threads into standoffs then into motherboard below
- Board Edges: Small cutouts on three edges
- Female Plugs: Two plugs total. One 3-position plug. One long narrow plug.
- Jack Connectors: Two female jack connectors on board
- LED Indicators: Two LEDs side by side along one edge
- Component Types: Transformers, transistors, inductor coil, two crystal oscillators
- Markings: GE logo, Type 6, FA/00, E99006
Compatibility Information
- Connects to larger WETA board as an auxiliary card
- Parent board version: IS210BPPBH2 (original without 3 revisions)
- Backwards compatible with first two revisions of BPPB series
- Works within Mark VI Speedtronic turbine control systems
- Supports central Control module and Operator Interface connection
Installation Guide
- Align four corner holes with standoffs on motherboard.
- Insert screws through each hole. Hand tighten first.
- Do not over tighten screws. Use gentle even pressure.
- Connect both female plugs to matching motherboard ports.
- Verify LEDs light up after power on.
- Read manufacturer manuals for full safety steps.
Debugging & Maintenance
- Check both LEDs. No light means power loss or board failure.
- Inspect conformal coating for scratches or damage.
- Keep board dry. Conformal coating resists moisture but not submersion.
- Store in anti-static bag when not installed.
- Clean dust with soft brush. Do not use liquids or sprays.
- Test crystal oscillators if timing errors occur.
Package Contents
- 1 x GE IS210BPPBH2BMD auxiliary board
- 1 x Anti-static protective wrap for shipping
- Mounting screws included
- Warranty: 12 months from shipment. Covers defects and failures.
Shipping Methods
- FedEx – Priority and economy options
- UPS – Worldwide tracking included
- DHL – Express international delivery
Typical Applications
- Steam turbine control systems
- Gas turbine management panels
- Mark VI rack assemblies needing auxiliary BPPB board
- Upgrading older Speedtronic systems
- Spare part replacement for existing GE turbines
Diagnostic Ability
- LED indicators show basic board status
- Operator Interface access allows programmable maintenance tools
- Alarm states visible through central Control module
- Board revision tracking helps identify firmware or hardware changes
FAQ – Expert Answers & Buying Guide
- What is the difference between IS210BPPBH2 and IS210BPPBH2BMD?
BMD version includes full 3-revision table. Original BPPBH2 has no revisions. BMD offers more updates. - Can I use this board with older Mark V systems?
No. IS210BPPBH2BMD works only with Mark VI Speedtronic systems. Not compatible with Mark V. - Experience: One LED is on but the other stays dark. Is this normal?
Check manual for LED patterns. One LED may indicate power. Second LED may show active communication. Dark LED may mean missing signal. - Buying Guide – Which revision should I buy for my existing system?
Check your current board revision. IS210BPPBH2BMD works with first two revisions backward. Safe for most Mark VI systems. - Buying Guide – How do I know if I need this auxiliary board?
Look for BPPB labeled slot in your WETA assembly. Missing board will cause errors. This board is required for full turbine data access.
