GE IS220PTURH1B Mark VI I/O Pack – Primary Trip Module Turbine Control

Description

Product Overview

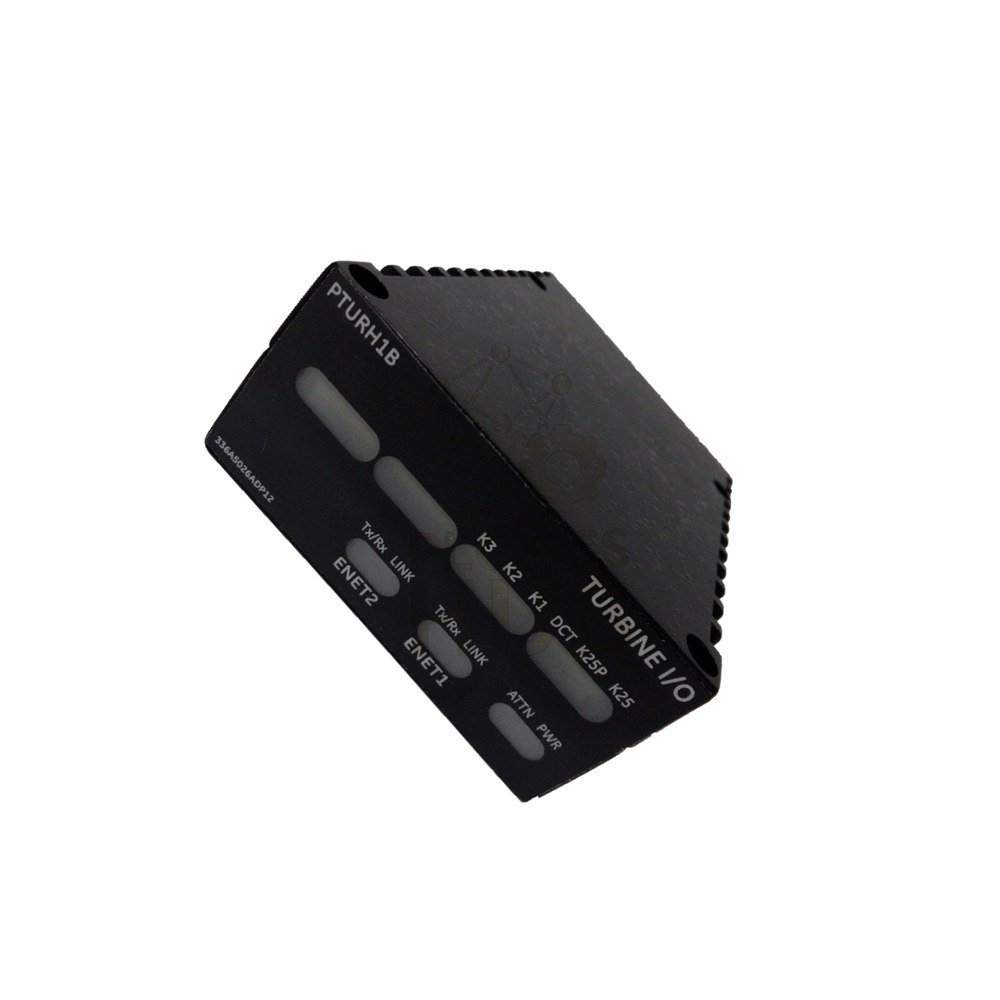

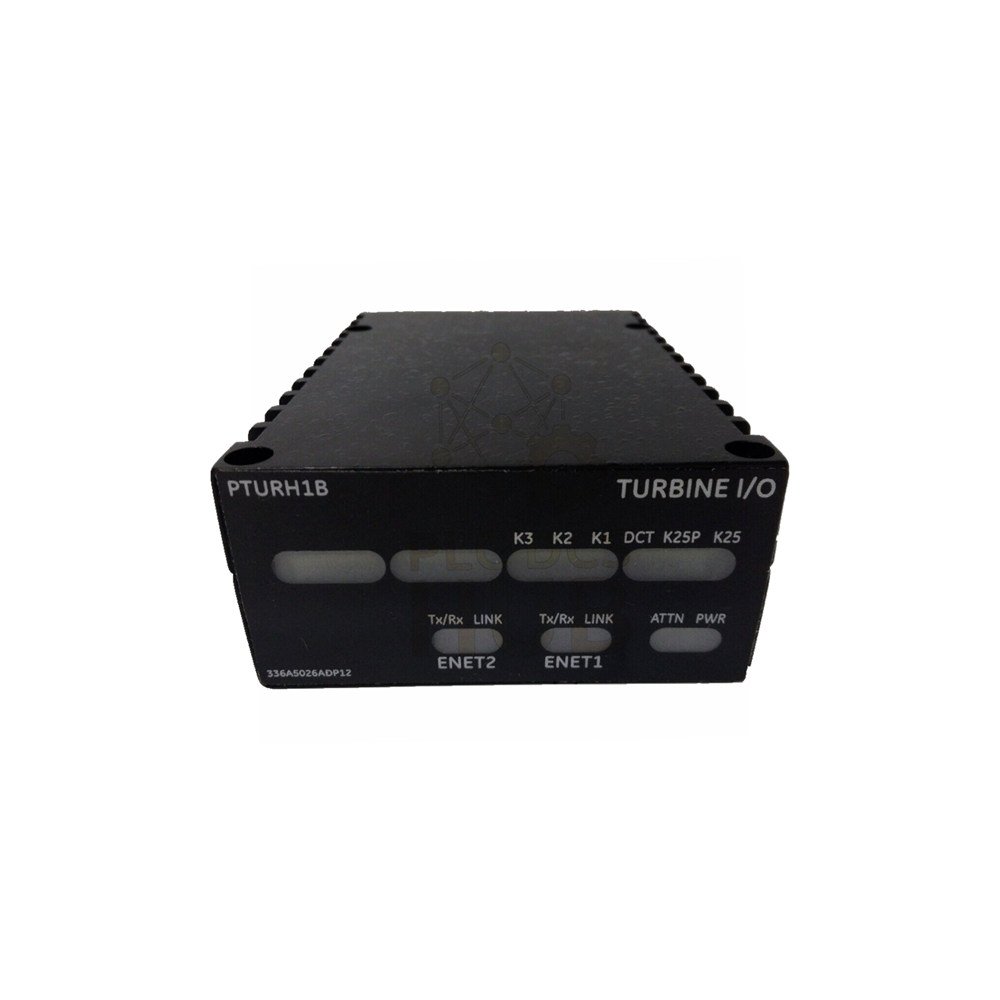

The GE IS220PTURH1B is an I/O Pack. It belongs to the Mark VI series. This module is a Turbine Specific Primary Trip Module. GE designed it to control and protect gas and steam turbines. It also regulates HRSG (boiler) and auxiliary plant controls.

What Makes This Module Special

• Primary turbine protection – critical safety function
• Works with TRPA terminal board for complete system
• Hazardous location approved – safe for industrial use
• Multiple input types – voltage, E-stop, speed signals
• Light weight – only 0.8 kg

Quick Specifications

• Brand: General Electric (GE)
• Model: IS220PTURH1B
• Series: Mark VI / Mark VIe
• Product Type: I/O Pack – Turbine Specific Primary Trip Module
• Catalog: Mark VIe
• Origin: United States
• Weight: 0.8 kg
• Power Supply Voltage: 28.0 V DC (range 27.4 to 28.6 V)
• Current Draw: 0.41 A DC maximum

Model Number Breakdown

• IS220 = GE Mark VI series prefix
• PTUR = Primary Trip module (Turbine Specific)
• H = Hardware version
• 1 = Revision number
• B = Sub-revision (later version than A)

Input and Output Specifications

• Voltage Detection Inputs (TRPA): 16 to 140 V DC
• E-stop Input (TRPA): 18 to 140 V DC
• Speed Inputs (TRPA): -15 to +15 V DC
• E-stop Power Output (open circuit): 28 V DC
• E-stop Power Output (short circuit): 17 mA DC
• Contact Output (TRPA): 24 to 28 V DC
• Contact Output Current: 7 A DC maximum

Approved Hardware Combinations for Hazardous Locations

• Mark VIe: IS220PTURH1A or IS220PTURH1B with terminal board IS200TRPAH1A
• Mark VIeS: IS220YTURS1A or IS220YTURS1B with terminal board IS200TRPAS1A

How This Module Works

• It interfaces with balance of plant devices like motor-operated valves.
• It controls boiler drum level and other plant operations.
• The module provides primary turbine trip protection.
• It works with the TRPA terminal board for signal connection.
• Mark VI and Mark VIe systems use this module in combined cycle power plants.
• Both DCS and turbine controls use this I/O pack.

Installation Guide

• Mount the I/O pack with the correct terminal board (IS200TRPAH1A for Mark VIe).
• Connect power supply at 28V DC (27.4 to 28.6 range).
• Wire voltage detection inputs (16 to 140V DC).
• Connect E-stop input (18 to 140V DC).
• Wire speed inputs (-15 to +15V DC).
• Connect contact outputs (24 to 28V DC, max 7A).
• Follow hazardous location guidelines if used in classified areas.
• Use only approved hardware combinations for safety.

Compatibility Notes

• Works with Mark VI and Mark VIe turbine control systems.
• Requires terminal board IS200TRPAH1A for Mark VIe.
• Also works with IS220PTURH1A (older version).
• For Mark VIeS, use YTUR series modules.
• Used in combined cycle power plants with DCS systems.

Typical Applications

• Gas turbine primary protection
• Steam turbine primary protection
• HRSG (boiler) control
• Auxiliary plant controls
• Motor-operated valve control
• Combined cycle power plants
• Boiler drum level control

Diagnostic Capabilities

• Monitors voltage detection inputs for abnormalities
• Checks E-stop circuit status continuously
• Verifies speed input signals from turbine
• Reports trip conditions to Mark VI controller
• Provides status through system HMI

Maintenance Tips

• Check power supply voltage regularly. Keep within 27.4 to 28.6V DC.
• Inspect E-stop circuit wiring for damage.
• Verify speed input signals are within -15 to +15V range.
• Keep the I/O pack clean and dry.
• Test trip functions during scheduled maintenance.
• Replace module if inputs fail or outputs stop working.

Warranty & Shipping

• 12 months warranty from delivery date.
• Covers manufacturing defects only.
• Does not cover wrong wiring or improper installation.
• We ship by FedEx, UPS, or DHL.
• Tracking number provided after dispatch.

Package List

• 1 x IS220PTURH1B I/O Pack
• Terminal board IS200TRPAH1A sold separately
• Cables and connectors not included
• Manual available upon request

Professional FAQ

• What is the difference between IS220PTURH1A and IS220PTURH1B?
• The B version is a later sub-revision. Both work with the same terminal board. Check your system requirements before choosing.
• Can I use this module with Mark VIeS systems?
• No. Mark VIeS uses YTUR series modules (IS220YTURS1A or IS220YTURS1B). PTUR modules are for Mark VIe standard systems.
• Experience: My E-stop input is not responding. What should I check?
• Measure voltage at the input. It must be between 18 and 140V DC. Also check wiring to the TRPA terminal board.
• Experience: The module gets warm during operation. Is this normal?
• Yes. The module draws 0.41A at 28V. Ensure proper airflow around the I/O pack. Do not block ventilation.
• Buying guide: Do I need the terminal board IS200TRPAH1A?
• Yes. The I/O pack alone does not have connectors. You need the terminal board for wiring field devices. Order both together.
• Buying guide: Can I replace PTURH1A with PTURH1B?
• Yes. PTURH1B is backwards compatible. Test the system after replacement to confirm normal operation.
• Buying guide: What power supply do I need?
• You need a 28V DC supply with at least 0.5A capacity. Voltage must stay between 27.4 and 28.6V for proper operation.
• Is this module approved for hazardous locations?
• Yes. When used with terminal board IS200TRPAH1A, the combination is approved for hazardous locations. Follow installation rules.
