Description
Product Overview

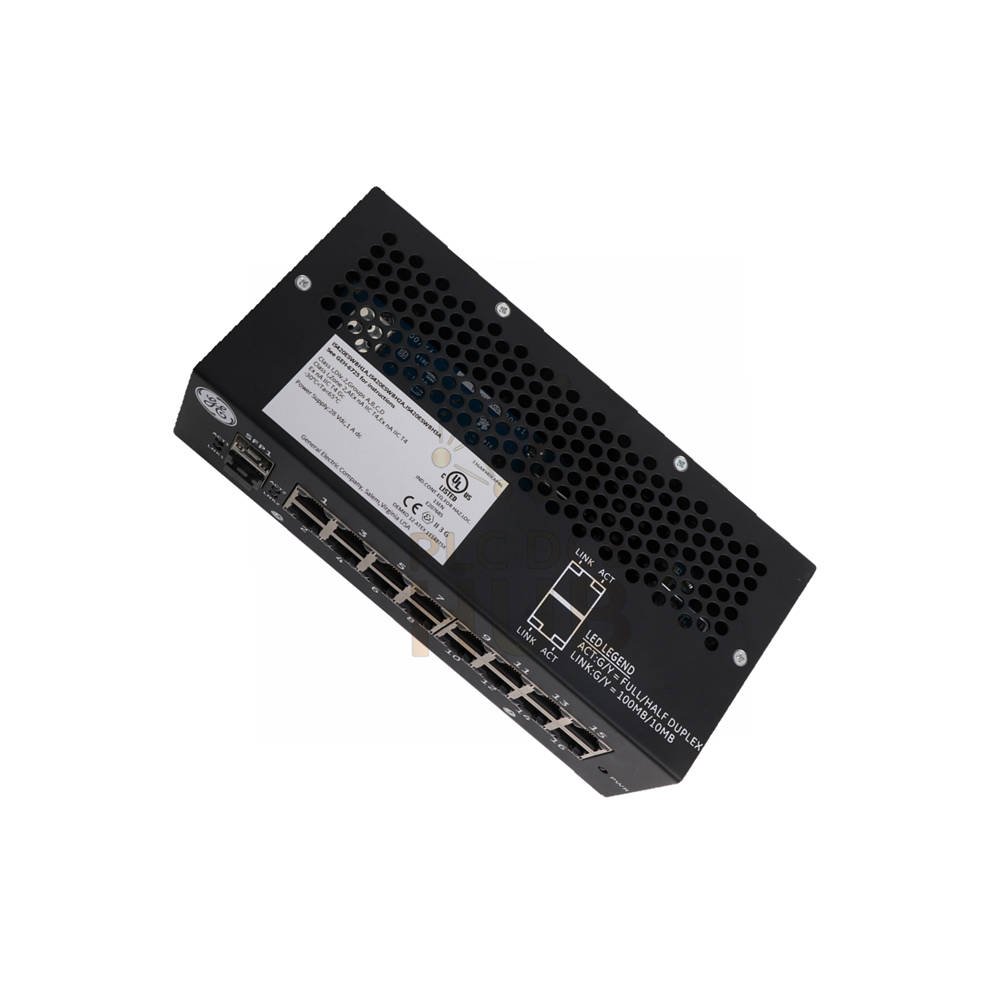

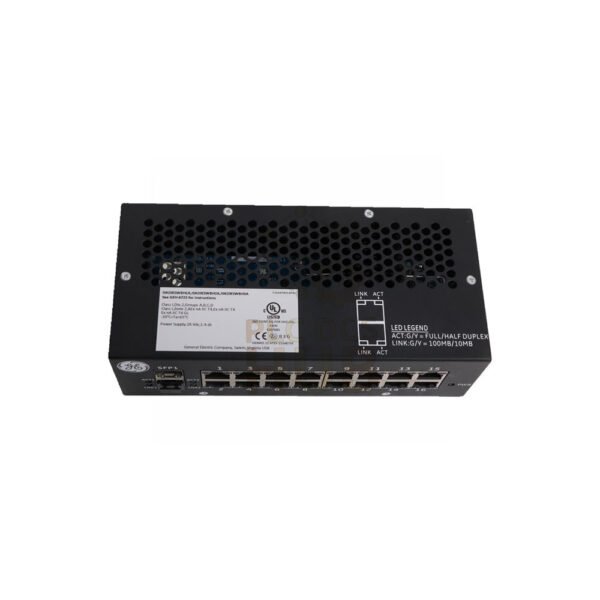

The GE IS420ESWBH3A is a Mark VIe IONet Ethernet switch. This switch has 16 copper ports. Each port supports 10/100Base-TX with RJ45 connectors. No fiber ports are available on this model. The switch uses DIN-rail mounting for easy installation. It is designed for real-time industrial control systems. This switch is required for all IONet networks in Mark VIe and VIeS safety control systems.
For inquiries, contact us at +86 158 8020 0923 (WhatsApp).
Part Number Breakdown (Tree Structure)
- IS420 → Series Tag
- Mark VIe Series product
- Special modular assembly version
- Domestic US manufacture
- ESWB → Functional Acronym
- Ethernet Switch for IONet
- Industrial Ethernet switch type
- H → Product Group
- Group three Mark VIe series grouping
- Only ESWB board without fiber port
- 3A → Revision and Configuration
- A-rated primary functional revision
- Specific build variant
Key Specifications
- Brand: General Electric (GE)
- Part Number: GE IS420ESWBH3A
- Series: Mark VIe and Mark VIeS Control Systems
- Product Type: Ethernet IONet Switch
- Functional Abbreviation: ESWB
- Software: ControlST V04.03.18C
- Operating System: QNX Neutrino
- Memory: 256 MB DDR SDRAM
- Buffer Size: Minimum 256 KB
- MAC Address Table: 4,000 addresses (4K)
- Cooling Method: Convection cooled
- Country of Manufacturer: United States (USA)
Port and Interface Specifications
- Copper Ports: 16 ports 10/100Base-TX
- Connector Type: RJ45
- Fiber Ports: None
- Uplink Port: 100 Mbps FX (copper)
- Cable Type: Cat 5e UTP with RJ45 connectors
Network Features and Protocols
- Compatibility: IEEE 802.3, 802.3u, 802.3x
- Auto-negotiation: 10/100 base copper
- Duplex Auto-negotiation: Full and half duplex
- Auto-sensing: HP-MDIX for crossover elimination
- Buffer Capability: One packet per port buffer
LED Indicators and Status
- Power LED: Shows unit has power
- Link LED (Yellow): Indicates 10 MB link active
- Link LED (Green): Indicates 100 MB link active
- Link LED (Off): No link present
- Activity LED: Shows data transmission
- Duplex LED: Shows full or half duplex mode
- Speed LED: Shows port speed status
Power Specifications
- Input Voltage: 24/28 VDC nominal
- Power Range: +18 Vdc to +32 Vdc
- Dual Power Inputs: Yes, for redundancy
Environmental Specifications
- Operating Temperature: -40°C to +70°C
- Relative Humidity: 5% to 95%, non-condensing
Physical Dimensions
- Height: 188 mm (18.8 cm / 7.4 in)
- Width: 86 mm (8.6 cm / 3.4 in)
- Depth: 56 mm (5.6 cm / 2.2 in)
- Weight: 0.91 kg (2 lbs)
Mounting Options
- DIN-Rail Mounting: Parallel or perpendicular orientation
- Panel Mounting: Optional using screw holes
- DIN-Rail Clips Needed: 259B2451BVP1 and 259B2451BVP4
Installation Guide
- Turn off all power before starting installation.
- Choose DIN-rail or panel mounting method.
- For DIN-rail, attach the required clips first.
- Snap the switch onto the DIN rail firmly.
- For panel mount, use screws through mounting holes.
- Connect primary power to the first input terminal.
- Connect redundant power to the second input terminal.
- Use Cat 5e UTP cables with RJ45 connectors.
- Plug each device into the 16 copper ports.
- Verify LED indicators show proper link status.
- Allow 2 inches clearance for convection cooling.
Diagnostic Tips
- Check the power LED first if switch does not work.
- Look for yellow link LED to confirm 10 MB connection.
- Look for green link LED to confirm 100 MB connection.
- No link LED means cable or device problem.
- Use the activity LED to see data flow.
- Monitor duplex LED for correct negotiation settings.
Compatibility Notes
- Designed for Mark VIe and Mark VIeS safety control systems.
- Works with GE Distributed Gas Turbine Control Systems.
- Required for all IONet networks in these systems.
- Use with wind, steam, and gas turbine assemblies.
- No fiber port on this model (H3 version only).
Application Scenarios
- Gas turbine control system IONet networks
- Steam turbine distributed control systems
- Wind turbine SCADA and monitoring networks
- Industrial automation with Mark VIe platforms
- Redundant network installations needing dual power
- Remote I/O connections in harsh environments
Package Contents
- One GE IS420ESWBH3A IONet Ethernet switch
- One DIN-rail mounting clip (pre-installed)
- One product identification label
- No cables included (use Cat 5e UTP separately)
Warranty and Shipping
- 12 months factory warranty from shipment date.
- Warranty covers manufacturing defects only.
- Electrical overstress or water damage voids warranty.
- Shipping options: FedEx, UPS, DHL.
- Tracking number provided after shipment.
Frequently Asked Questions (FAQ)
Q1: How many ports does the IS420ESWBH3A have?
The GE IS420ESWBH3A has 16 copper ports. All ports are 10/100Base-TX with RJ45 connectors. This model has no fiber optic ports.
Q2: What power supply do I need for this switch?
This switch needs 24/28 VDC nominal power. The acceptable range is +18 Vdc to +32 Vdc. Dual power inputs allow redundant power supplies for high reliability.
Q3: What do the different LED colors mean?
Solid yellow link LED means 10 MB link is active. Solid green link LED means 100 MB link is active. No LED light means no link exists. The power LED shows the unit has power.
Q4: Can I mount the IS420ESWBH3A on a panel?
Yes, this switch supports panel mounting as an option. DIN-rail mounting is the primary method. Use the integrated mounting holes for screw attachment to a panel.
Q5: Is this switch compatible with standard Ethernet cables?
Yes, use Cat 5e UTP cables with RJ45 connectors. The switch supports HP-MDIX auto-sensing. This feature eliminates the need for crossover cables.
Buying Guide
When you buy a GE IS420ESWBH3A IONet switch, follow these tips. First, count your network devices. This switch has 16 copper ports. Second, check if you need fiber ports. This H3 model has no fiber. Third, verify your power source. You need 18-32 VDC with dual inputs optional. Fourth, measure your cabinet space. The switch is 188 x 86 x 56 mm. Fifth, plan your mounting method. DIN-rail is easiest for new panels. Sixth, consider your temperature range. The switch works from -40°C to +70°C. Seventh, confirm your system type. This switch is for Mark VIe and VIeS only. Eighth, order spare units for critical turbines. Ninth, review warranty terms. We offer 12 months coverage. Tenth, choose your shipping method. We use FedEx, UPS, and DHL. Finally, test the switch with your existing IONet before full deployment.
