IS230PCAAH1B GE Mark VIe Analog I/O Module – 25 Inputs, 4-20mA

Description

Product Snapshot

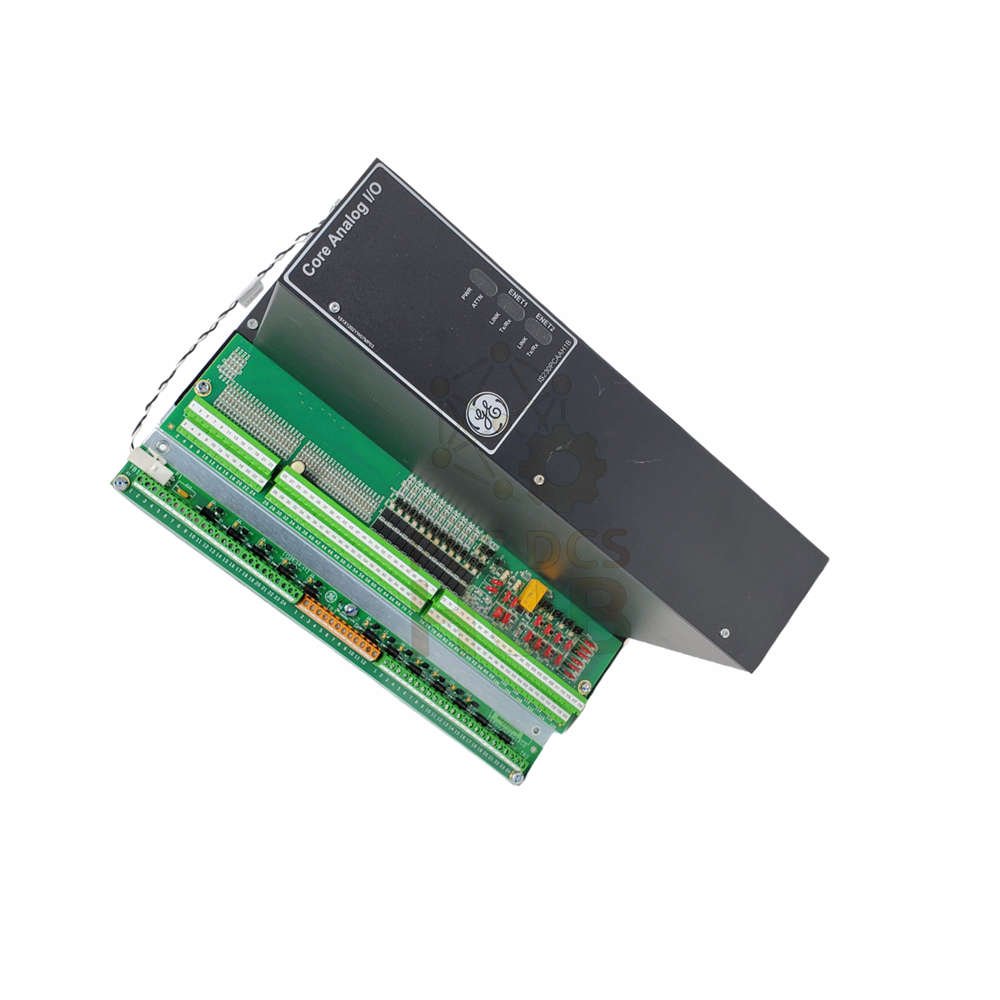

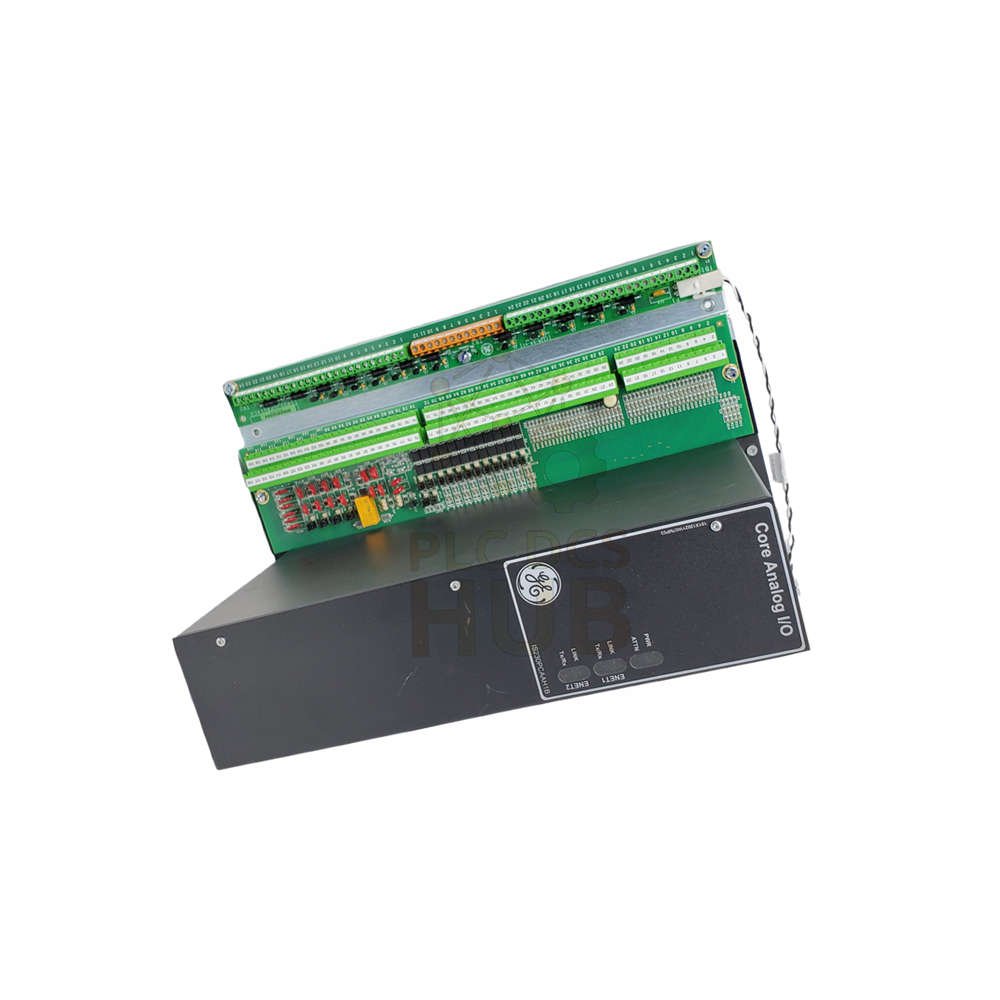

The IS230PCAAH1B is a Core Analog I/O module from General Electric. It belongs to the Mark VIe series for distributed control systems. This module helps run gas turbines with analog signals. Works in simplex, dual, and TMR systems.

Model Breakdown (Tree Structure)

• IS230 – GE Mark VIe family
• PCAA – Core Analog I/O module
• H1B – Specific version

Quick Specs

• Brand: General Electric
• Model: IS230PCAAH1B
• Series: Mark VIe
• Type: Core Analog I/O Module
• Inputs: 25
• Outputs: 4-20 mA
• Analog 0-10 V DC inputs accuracy: ±0.50%
• LVDT excitation monitor accuracy: ±1.00%
• Servo driver output accuracy: ±3.50%
• Power input: 28 Vdc ±5%
• Size: 33.02 cm high x 17.8 cm wide
• Technology: Surface-mount
• Operating temp: -30 to 65°C
• Origin: U.S.A.
• Manual: GEH-6721L

Signal Types Supported

• Thermocouple inputs
• 4-20 mA current loops
• Seismic inputs
• LVDT excitation and inputs
• Pulse rate signals
• Servo coil outputs

Board Composition

• Four circuit boards in one assembly
• One shared processor board
• Two application I/O boards
• One terminal board (TCAT or TCAS)
• Whole module is least replaceable unit
• No individual board replacement

Connectors & Ports

• Dual RJ45 Ethernet connectors
• P5: 28 Vdc power input
• P4: Power to JGPA board
• P1 and P2: Two 68-pin cables to TCAT
• 120 Euro-style box terminals on module edge

Signal Split Method

• TCAT terminal board fans inputs to PCAA modules
• One TCAT can feed 1, 2, or 3 PCAA modules
• Some signals wire directly to PCAA terminals
• Signals exclusive to one PCAA module
• PCAA can replace TCAT if fanning not needed

Installation Steps

• Mount PCAA module firmly in rack
• Connect P4 on PCAA to JGPA power connector
• Attach two 68-pin cables from P1/P2 to TCAT
• Finger tighten mounting screws only (critical for grounding)
• Connect one or two Ethernet cables as needed
• Single IONet connection works on either port
• For dual connections, match ENET1 to proper controller
• Verify JGPA shield wires are grounded
• Power on via P5 connector
• Check power and Ethernet status LEDs

Grounding Notes

• Finger tighten screws into PCAA and TCAT
• Overtightening may cause communication issues
• Module may not read TCAT electronic ID if loose
• JGPA shield terminals normally ground to sheet metal
• Some cases need separate shield ground wire
• Use insulated mounting hardware if separate ground needed

Frame Rates & Redundancy

• Runs at 10 ms or 40 ms frame rates
• Supports simplex, dual, and TMR systems
• Compatible with all Mark VIe I/O packs
• Compatible with all Mark VIe controllers

Processor Board Features

• Fast processor with RAM and flash
• Two independent 10/100 Ethernet ports
• Watchdog timer and hardware reset
• Internal temperature sensor
• Status LEDs
• Reads electronic IDs on other boards
• Soft start and current limiter on power input
• Local power supplies with sequencing and monitoring

Accuracy Specifications

• Includes aging, temperature, and power variance
• Includes product variance effects
• Typical accuracy listed at 25°C
• Specified accuracy is worst-case limit

Warranty & Shipping

• Warranty: 12 months from delivery
• Shipping: FedEx, UPS, DHL
• Fast worldwide delivery

Typical Applications

• Gas turbine control systems
• Distributed control systems (DCS)
• Power generation plants
• Industrial automation with Mark VIe

Professional FAQ

• Can I replace just one board inside this module? No. The whole module is the least replaceable unit. No board-level repair.
• What happens if I overtighten the mounting screws? Module may not read TCAT electronic ID. Communication can degrade.
• Do I need a TCAT terminal board for this module? Not always. PCAA can work alone if you don’t need fanned inputs.
• What power supply do I need? 28 Vdc ±5% through P5 connector. Current limiter built in.
• Is this module hot-swappable? Refer to GE Mark VIe manual. Most Mark VIe modules support hot swap.

Experience-Based FAQ

• My module won’t see the TCAT board. What’s wrong? Check mounting screws. They must be finger tight only. Not loose, not tight.
• Can I use a longer cable than standard? Use only GE-specified 68-pin cables. Longer cables may cause signal loss.
• The accuracy seems off. What to check? Verify temperature is within -30 to 65°C. Check power supply stability.
• Do I need both Ethernet ports connected? No. One port works fine. Dual ports are for redundant networks only.
• How do I know if my JGPA is grounded correctly? Measure continuity between shield terminal and ground. Use a multimeter.

Selection Guide

• Step 1 – Count your analog inputs. Need up to 25? This fits.
• Step 2 – Check output type. This provides 4-20 mA and servo outputs.
• Step 3 – Confirm system type. Works with simplex, dual, or TMR.
• Step 4 – Verify temperature range. Must be -30 to 65°C.
• Step 5 – Decide if you need TCAT for fanned inputs.
• Step 6 – Order JGPA board separately if needed for shield grounds.
