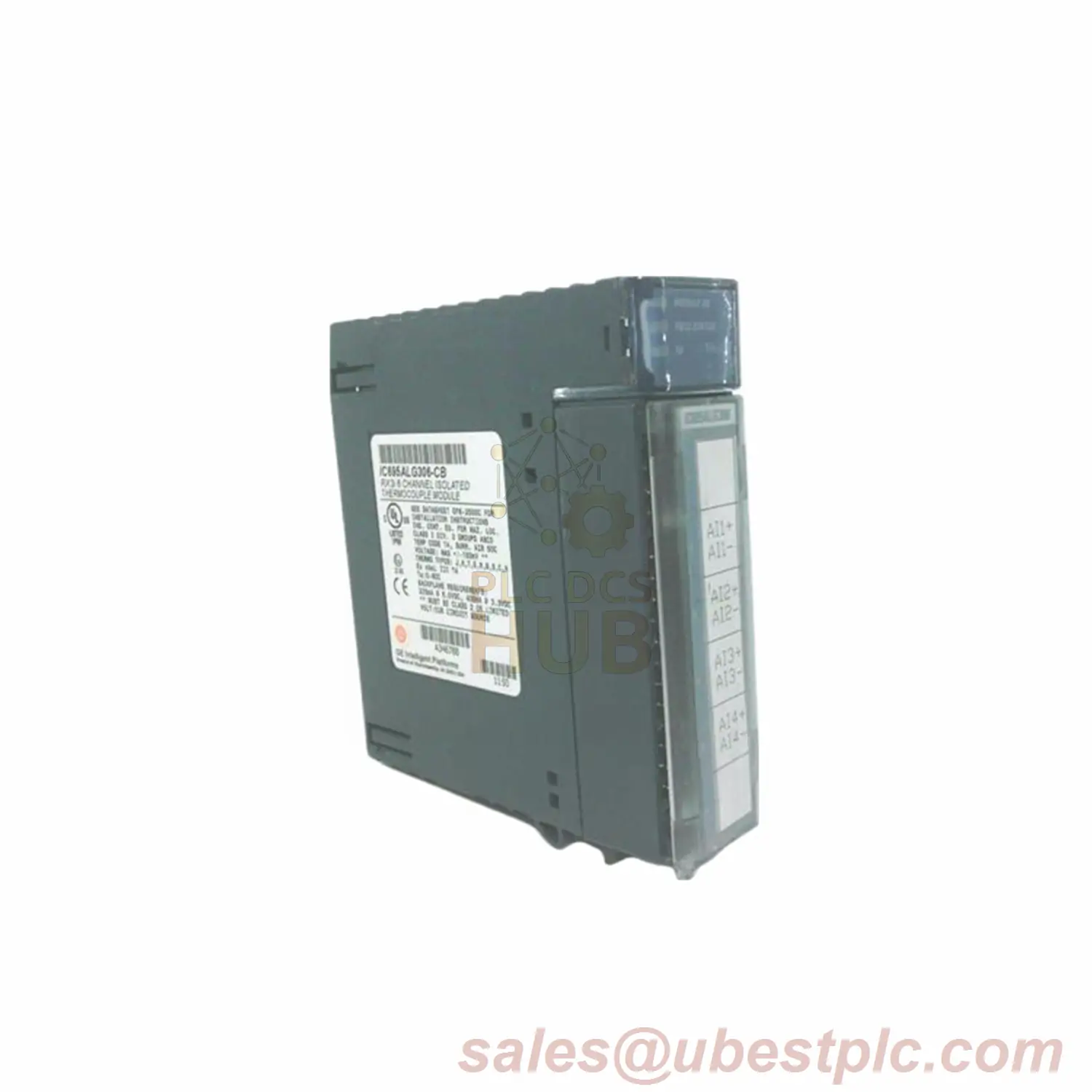

IC695ALG306 Isolated Thermocouple Input GE Fanuc PACSystems RX3i

Description

Quick Overview

A 6-channel isolated thermocouple module for precise temperature monitoring in harsh industrial settings. Works with 9 thermocouple types (B, C, E, J, K, N, R, S, T) and supports fast firmware updates.

Key Features

• 6 isolated inputs for safety and accuracy.

• Wide temperature ranges: From -270°C to 2315°C (varies by thermocouple type).

• Easy setup: No external jumpers—configure via software.

• Fault detection: Alerts for flash, RAM, or watchdog errors.

Technical Data

• Brand: GE Fanuc

• Model: IC695ALG306 (RX3i Series)

• Input Types: B, C, E, J, K, N, R, S, T

• Voltage Range: ±150mV or ±50mV

• Resolution: 11.5 to 16 bits

• Update Speed: 15ms to 120ms

• Power: 3.3V (400mA) / 5V (150mA)

• Cold Junction Compensation (CJC): Updates at 20Hz

Compatibility

• RX3i Universal Backplane only.

• Requires firmware 5.5 or newer.

• Use with Proficy Machine Edition software.

Installation

1. Mount on DIN rail.

2. Connect thermocouples to terminal blocks (sold separately).

3. Configure settings via software—no physical adjustments.

What’s Included

• IC695ALG306 module

• Quick-start guide

• 12-month warranty card

Warranty & Shipping

• 12-month warranty for defects.

• Ships via FedEx, UPS, DHL—fast global delivery.

Real-World Uses

• Steel Mills: Monitor furnace temps (Type B/R/S).

• Food Processing: Track freezer temps (Type T).

• Power Plants: Measure turbine heat (Type K).
