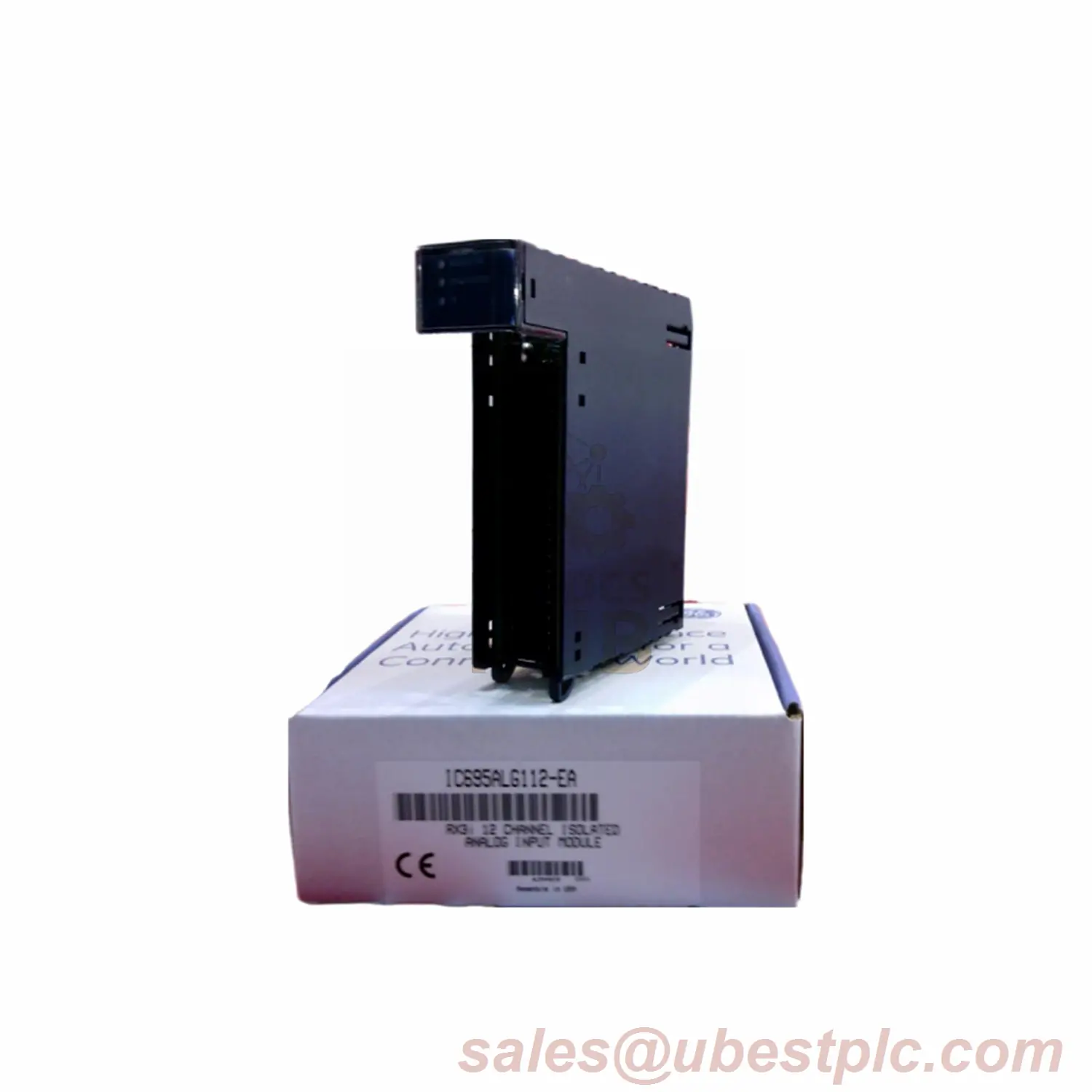

IC695ALG112 GE Fanuc Isolated Analog Module PACSystems RX3i

Description

Description

The GE Fanuc IC695ALG112 is a 12-channel analog input module for the PACSystem RX3i series. It accepts voltage (0-10V, ±10V, ±5V) and current (4-20mA, 0-20mA) signals, converting them to 16-bit integer or 32-bit floating-point values. Perfect for industrial automation, this module ensures stable readings with 8Hz–1000Hz software filters and predictive diagnostics for error detection.

Technical Data

• Brand: GE Fanuc / Emerson Automation

• Model: IC695ALG112 (PACSystem RX3i Series)

• Input Channels: 12 single-ended isolated

• Voltage Ranges: 0-10V, ±10V, ±5V, 0-5V, 1-5V

• Current Ranges: 0-20mA, 4-20mA, ±20mA

• Resolution: 16-bit ADC

• Accuracy: 0.1% at 25°C | 0.2% over temperature | ±2% under RF interference

• Response Time: 1.7ms (step change) to 127ms (8Hz filter)

• Filter Options: 8Hz, 12Hz, 16Hz, 40Hz, 250Hz, 1000Hz

• Power: 3.3V/5V, 600-800mA

• Input Impedance: >500 kΩ

• Overvoltage Protection: ±35VDC

• Calibration: 12-month interval recommended

Installation Guide

• Mount on DIN rail.

• Wire inputs using terminal connectors.

• No jumpers—configure via software.

Packaging List

• IC695ALG112 module

• Quick-start manual

• Warranty card

Application Examples

1. Process Control: Monitor tank levels via 4-20mA sensors.

2. HVAC Systems: Read temperature signals (0-10V) for PID loops.

3. Energy Management: Integrate with SCADA for real-time data logging.

FAQ

Q: Does it support bipolar voltage (±10V)?
A: Yes—select ±10V range during configuration.

Q: How to reduce noise in readings?
A: Use 250Hz or 1000Hz filter for fast, stable data.

Q: Is open-circuit detection enabled?
A: Yes—faults detected within 1 second.
