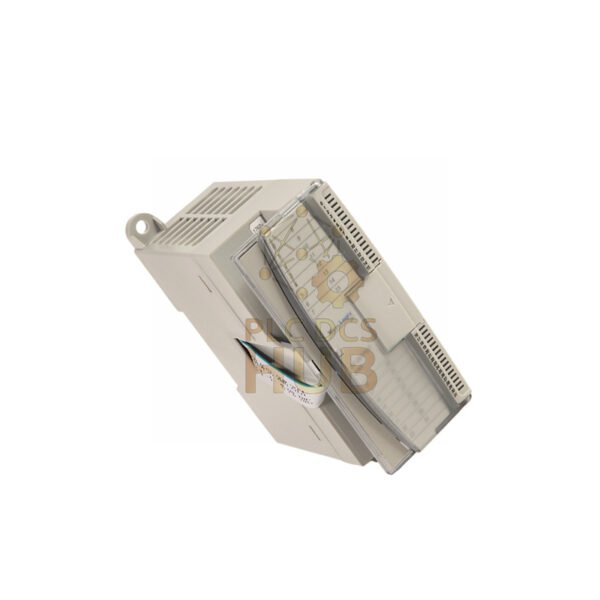

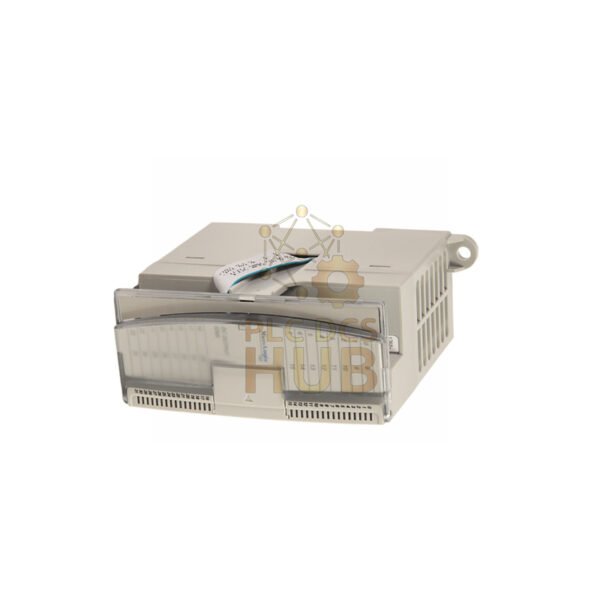

Allen-Bradley 1762-IQ32T: 32-Channel DC Input Module
The Allen-Bradley 1762-IQ32T from Rockwell Automation is a high-density discrete input module for MicroLogix control systems. It offers thirty-two input channels with group isolation for reliable industrial automation. For detailed installation and configuration instructions, download the product manual here.
Technical Specifications
- Brand & Manufacturer: Allen-Bradley / Rockwell Automation
- Model: 1762-IQ32T
- Series: MicroLogix
- Module Type: High-Density Discrete Input
- Number of Inputs: 32 channels in 4 isolated groups
- Input Voltage Range: 10-30V DC
- Nominal Voltage: 24V DC
- On-state Current: 1.6 mA @ 10V DC to 6.5 mA @ 30V DC
- Off-state Current: 1.0 mA maximum
- Response Time: 8 ms ON/OFF transition
- Isolation Rating: 1,200V AC for 2 seconds (group to backplane)
- Backplane Current: 170 mA @ 5.1V DC
- Heat Dissipation: 5.4 to 6.8 Watts
- Wiring Configuration: Sink or Source
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
- Enclosure Rating: IP20 (non-hazardous locations)
- Dimensions: 90 x 40.4 x 87 mm (3.54 x 1.59 x 3.43 in)
Packaging Contents
- One 1762-IQ32T discrete input module
- Comprehensive installation and operation documentation
- Express shipping via FedEx, UPS, or DHL available
- All products include 12-month performance warranty
Frequently Asked Questions
- How many input modules can I connect to a MicroLogix controller?
MicroLogix 1100 supports 4 modules, 1200 supports 6 modules, 1400 supports 7 modules. - What is the difference between sink and source wiring?
Sink wiring connects to negative power, source wiring connects to positive power. - Can I mix different voltage levels on the same module?
No, all channels must operate within the same 10-30V DC range. - What is the maximum cable length for input signals?
We recommend maximum 100 meters with proper shielding for reliable operation. - How do the isolated groups improve system performance?
They prevent noise and ground loops from affecting multiple channels simultaneously.
