Description

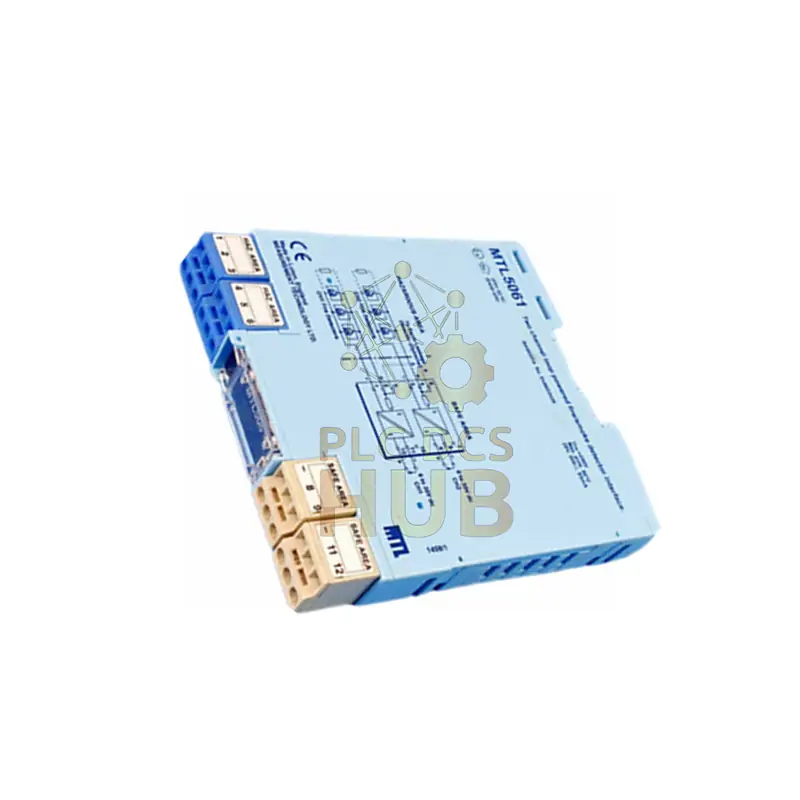

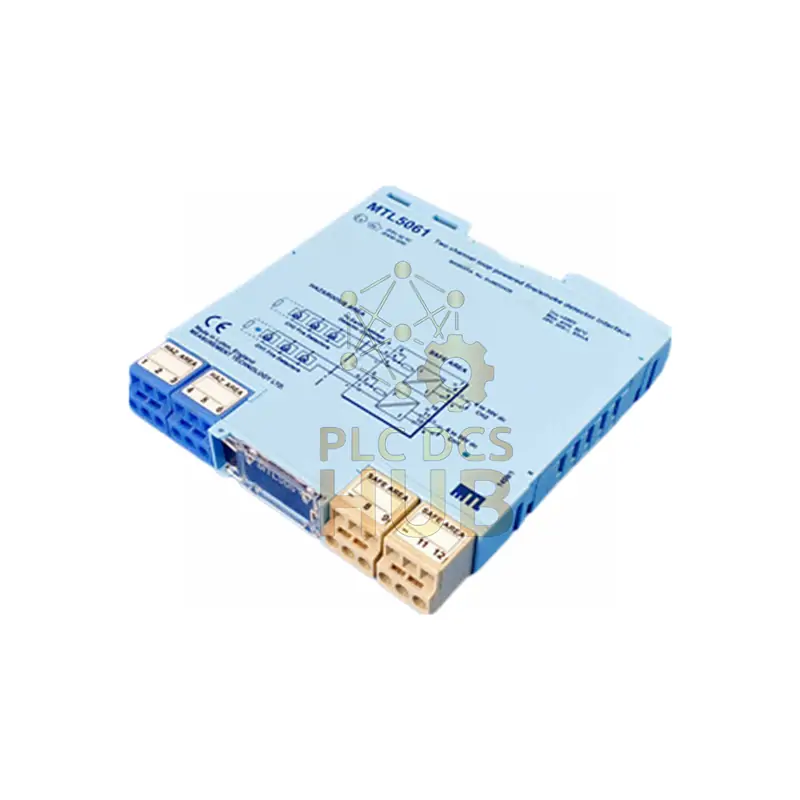

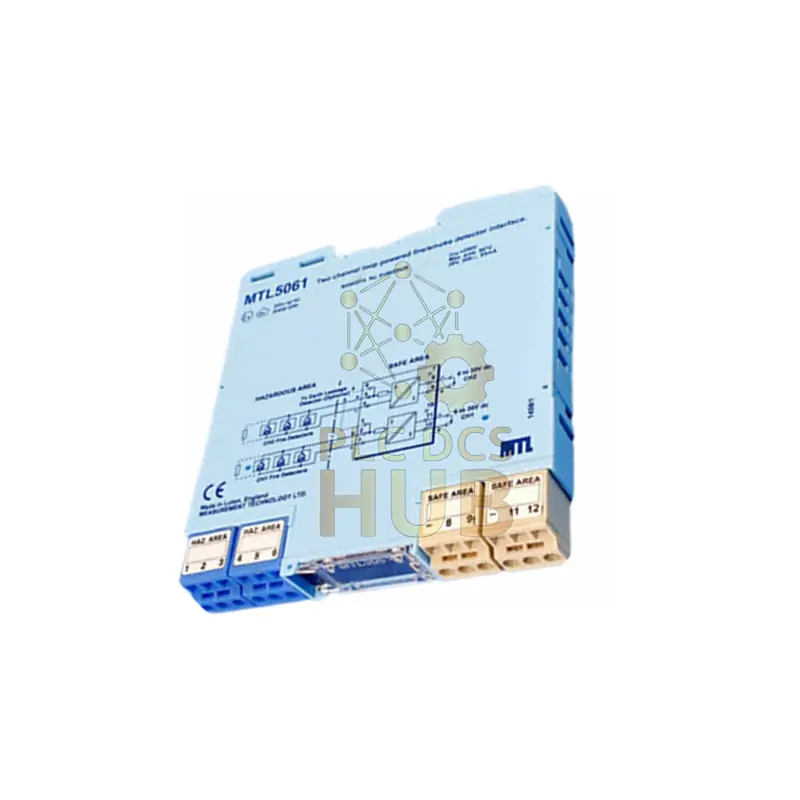

MTL5061: Fire Safety Guardian for Explosive Zones

Protect hazardous areas with smart fire detection! The MTL5061 safety barrier connects two fire/smoke detectors in explosive zones to safe-area systems. Automatic earth fault monitoring included. Zone 0 certified.

???? Life-Saving Features

• Dual-channel fire/smoke detector interface
• Reverse polarity protection
• Non-fail earth fault detection
• Ultra-low power operation

???? Critical Performance

• Current Range: 1-40mA per channel
• Voltage Output: Up to 28V
• Response Time: 30ms detection
• Accuracy: ±400μA at 20°C
• Power: 6-35V DC (<400μA standby)
• Isolation: 2500V AC protection
• Temp Range: -40°C to +85°C
• Humidity: 0-95% non-condensing
• Safety: 28V, 300Ω, 93mA

???? Connection Map

• 1,2,3: Channel 1 (Out -/+, Earth Detect)
• 4,5,6: Channel 2 (Out -/+, Earth Detect)
• 8,9: Channel 2 Input (-/+)
• 11,12: Channel 1 Input (-/+)

????️ Secure Package

• 12-month worry-free warranty
• Global express shipping: Fedex, UPS, DHL
• Earth fault monitoring included

???? Safety Answers

Q1: How many detectors connect to MTL5061?
A: Two! Handles dual fire/smoke detectors.

Q2: What happens during earth faults?
A: Continuous operation with fault alerts.

Q3: Can it handle reverse wiring?
A: Yes! Built-in polarity protection.

Q4: How low does the power go?
A: Only 400μA per channel in standby.

Q5: What’s special about terminals 3/6?
A: Connect to MTL4220 for advanced earth leak detection.
