N6736B Programmable DC Source | N6700 Series Power Module 100V

Description

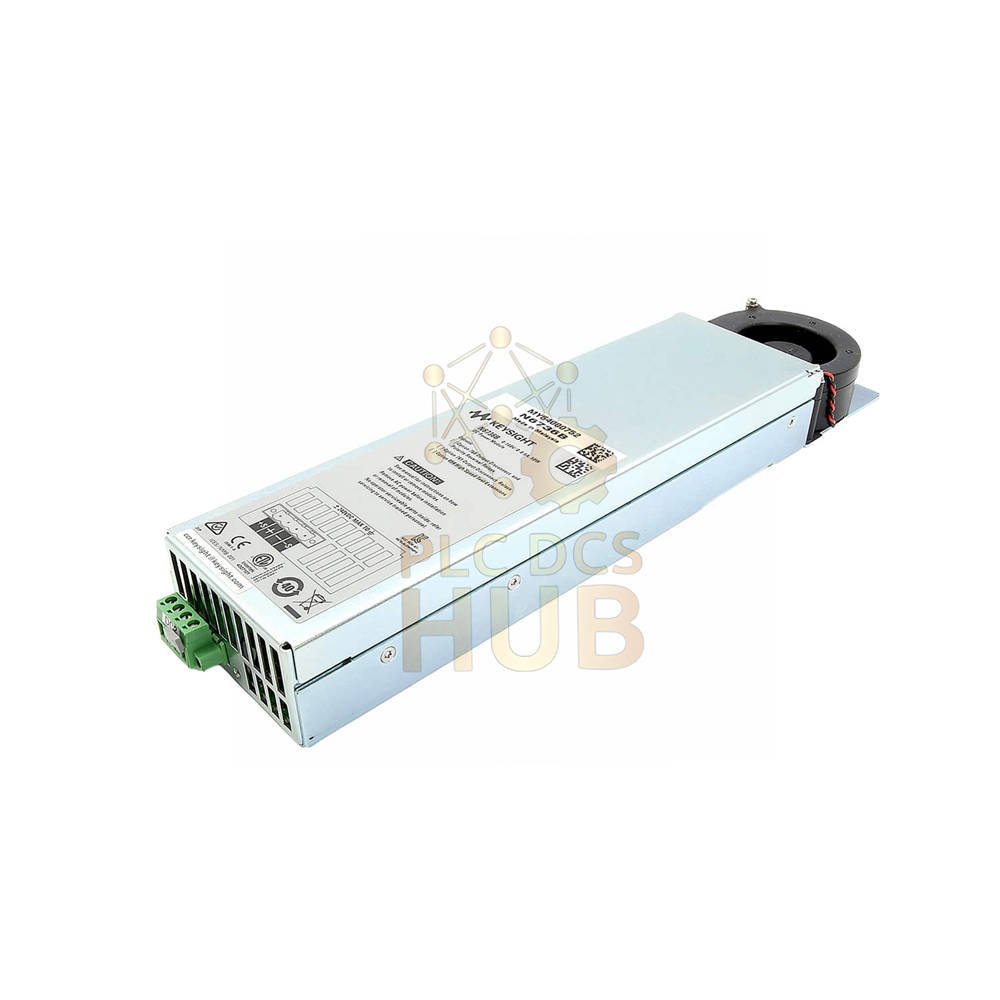

Keysight N6736B DC Power Module – Basic Series, 100V / 0.5A / 50W

Reliable 50W basic DC power module for automated test and bench use. Provides programmable voltage and current. Includes measurement and protection features. Very economical price. Powers DUT or ATE system resources. Fits Keysight N6700 Low-Profile Modular System (1U high). Also works with N6705 DC Power Analyzer for bench testing. GPIB, LAN, USB, LXI compliance are standard. Choose from over 20 different DC power modules (basic to high precision, 20W to 500W).

Technical Specifications

• Brand & Model: Keysight N6736B
• Series: N6700 Basic DC Power Module Family
• Output Ratings: 100 V, 0.5 A, 50 W
• Programming Accuracy (23°C ±5°C): Voltage: 0.1% + 100 mV, Current: 0.15% + 10 mA
• Ripple & Noise (20 Hz to 20 MHz): Voltage rms: 18 mV, Voltage peak-peak: 30 mV, Current rms: 2 mA
• Measurement Range: 0-100 V / 0-0.5 A with programmable precision
• Frequency Response: DC only, optimized for stable output
• Linearity & Resolution: High-linearity control; voltage resolution fine steps via software
• Temperature Range (Operating): 0°C to 55°C
• Environmental Tolerance: For indoor use, non-condensing, 20% to 80% RH
• Immunity & Interference: Meets industrial EMC standards; low radiated emissions

Installation Guide

• Insert module into any slot of Keysight N6700 chassis or N6705 mainframe.
• Ensure chassis power is off before installation.
• Slide module along guide rails until fully seated. Tighten front panel screws.
• Connect load wires to output terminals. Observe polarity (red +, black -).
• Power on mainframe. Module auto-detects.

Debugging & Maintenance

• Built-in measurement and protection features for easy troubleshooting.
• Over-voltage, over-current, and over-temperature protection standard.
• Use Keysight BenchVue or IVI drivers for diagnostics.
• Front-panel status LEDs: output on/off, fault indicator.
• Firmware updates via LAN or USB. No special tools needed.
• Self-test routine at power-up. Error codes shown on mainframe display.

Compatibility Information

• Compatible with N6700 Low-Profile Modular Power System (1U high).
• Compatible with N6705 DC Power Analyzer for bench testing.
• Software support: Keysight BenchVue, LabVIEW, Python, IVI-C, IVI-COM drivers.
• Standard communication: GPIB, LAN, USB, LXI compliant.
• Mixed with other N6700 series modules (20W to 500W) in same chassis.

Certifications & Standards

• LXI Class C Compliant (Version 1.4)
• CE Mark – meets EU safety and EMC directives.
• UKCA Mark for Great Britain.
• RoHS Compliant (lead-free, environmentally safe).
• IEC 61010-1 safety standard.
• Routine calibration traceable to NIST standards.

Package Contents

• Keysight N6736B DC Power Module – 1 unit
• Standard screw-lock connector kit for output terminals
• Quick start guide (printed)
• Certificate of calibration (factory)
• Warranty statement – 12 months from delivery

Warranty & Support

• 12-month global warranty covering manufacturing defects.
• Free technical support via email or phone.
• Optional extended warranty & calibration service available.

Shipping Options

• FedEx Priority / Economy – real-time tracking.
• UPS Worldwide Express / Saver – insured delivery.
• DHL International Express – fastest option for most countries.
• Orders processed within 1-2 business days. Tracking number provided.

Typical Applications

• ATE system resource power (fixture control, sensors).
• Bench testing of high-voltage low-current circuits.
• Powering operational amplifiers, bias supplies, or precision sensors.
• Industrial automation and control panel power.
• Educational labs and R&D prototyping.

Diagnostic Capability

• Real-time voltage and current measurement with 0.1% accuracy.
• Programmable protection trip points for safe testing.
• Log data via BenchVue to detect anomalies.
• Status and fault registers readable over remote interfaces.
• Built-in self-test verifies module health on demand.

Frequently Asked Questions (FAQ)

• Q: What is the maximum output power of N6736B?
  50 watts. Voltage up to 100V and current up to 0.5A.
• Q: Can I use this module without a mainframe?
  No. It requires N6700 or N6705 chassis for operation.
• Q: Does it support remote sense?
  Basic series does not include remote sense. Use local sense near load.
• Q: How do I program voltage output?
  Via GPIB, LAN, USB using SCPI commands. Or use Keysight GUI software.
• Q: Is the N6736B suitable for battery charging?
  Yes, but ensure current limit set to 0.5A max. Use protection features.

Experiential Tips from Users

• User tip: Always set current limit lower than 0.5A when testing sensitive DUTs. The module responds quickly to overload.
• Noise reduction tip: Use twisted-pair load wires and add ferrite bead near output for high-frequency applications.
• Firmware update note: Update via LAN using Keysight Connection Expert. Keeps compatibility with latest software.
• Thermal advice: Leave adjacent slot empty or use low-power modules to improve air flow for 100V operation.

Selection Guide – Which Power Module Do You Need?

• Choose N6736B if: You need 100V low-current source (0.5A max) in basic performance class.
• Upgrade to N675x series for: Higher accuracy, faster transient response, and optional remote sensing.
• Need more current? Look at N6734B (35V/1.5A) or N6735B (60V/0.8A).
• For high precision measurement: Choose N6760 series with 6.5-digit resolution.
• Multiple outputs requirement? Combine up to 4 modules in N6700 chassis.
• Low cost yet programmable? N6736B is the ideal basic 100V module.
