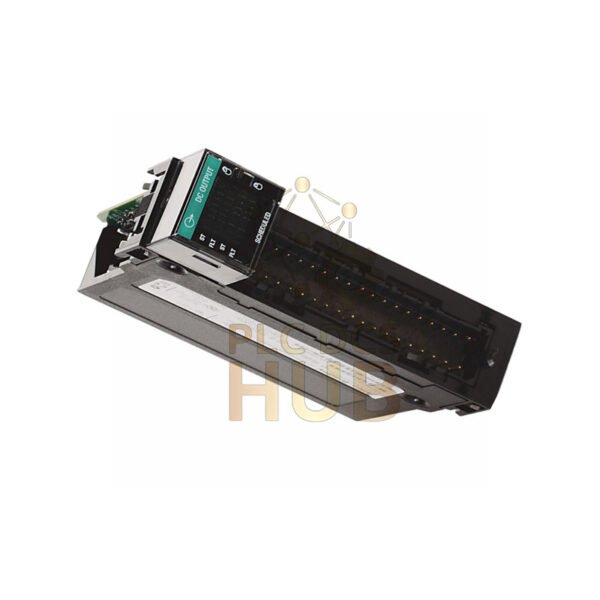

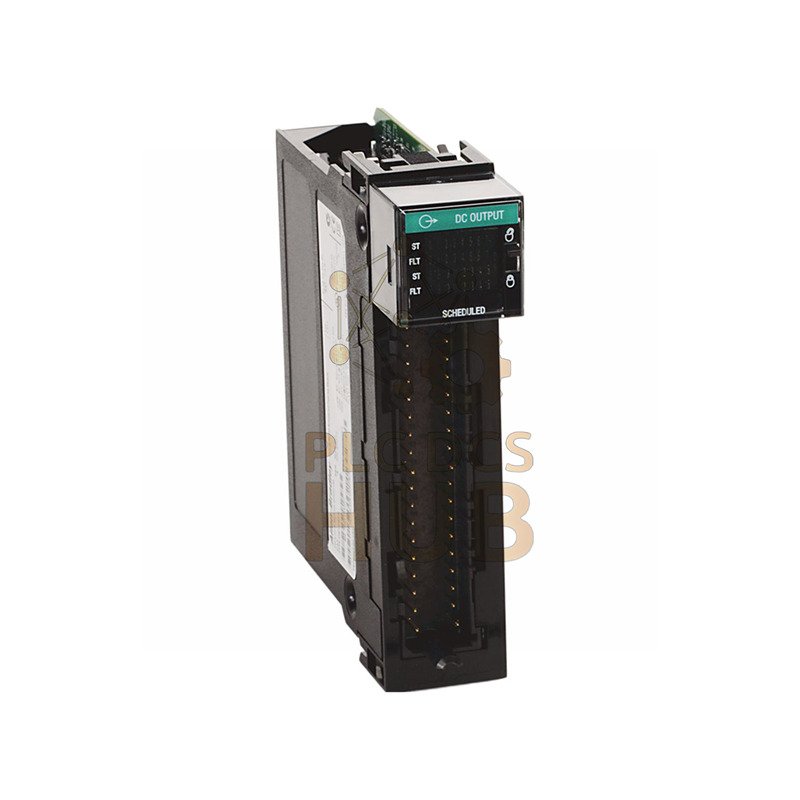

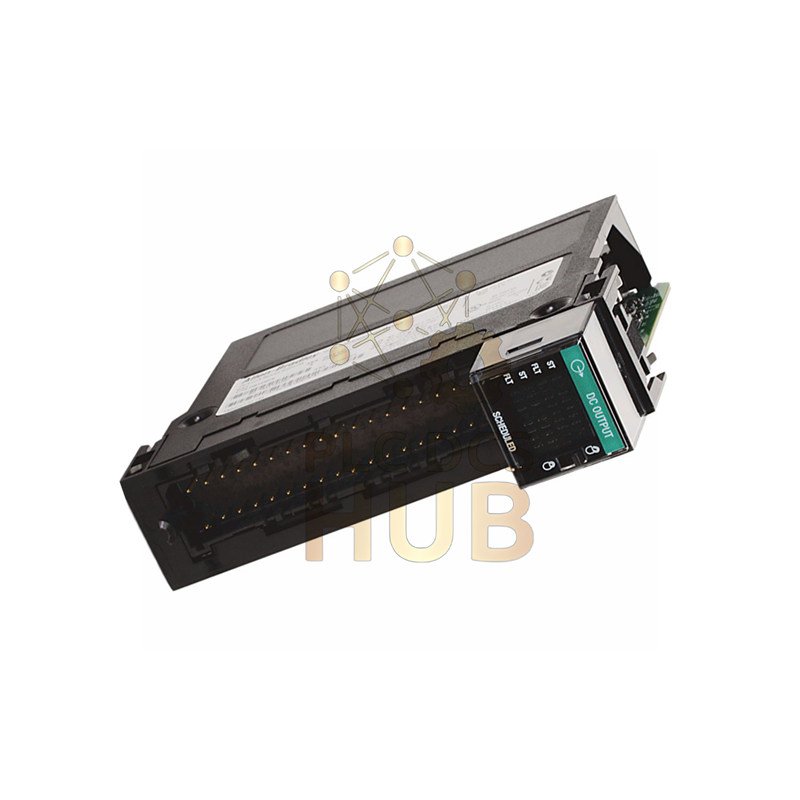

Original New | Allen-Bradley 1756-OB16IEFS Motion Output Module

Description

Allen-Bradley 1756-OB16IEFS: Advanced Motion Output Module

Introducing the 1756-OB16IEFS – the smart choice for precise motion control. This special module works with the MAOC instruction for position-based outputs. It offers 16 scheduled, high-speed outputs. Perfect for complex automation tasks.

Need detailed specifications? Download our complete technical guide:

• Download Full Specifications PDF Here

Technical Specifications

Brand & Model: Allen-Bradley 1756-OB16IEFS
Type: Scheduled DC Output Module
Output Points: 16 isolated outputs
Voltage Range: 10-30V DC
Current per Point: 2.0A @ 30°C | 1.0A @ 60°C
Surge Current: 4A for 10ms (repeatable every 2s)
Response Time: 14µs nominal (23µs max)
Scheduling Precision: 5µs minimum interval
PWM Range: 1ms to 1 hour
Isolation Rating: 250V continuous
Backplane Power: 5.1V @ 350mA
Leakage Current: < 0.1mA per point

Professional FAQs

• Q: What makes the 1756-OB16IEFS unique?
  A: It’s the only module that works with the MAOC instruction for advanced motion control.
• Q: How precise is the output scheduling?
  A: It enables schedules at very precise 5-microsecond intervals.
• Q: Can I use this in remote chassis?
  A: Yes, this module is designed to function in remote chassis applications.
• Q: What is the minimum PWM on-time?
  A: The minimum PWM on-time is 200 microseconds.
• Q: How is the module protected?
  A: Each output has electronic fusing (e-fuse) for individual point protection.
