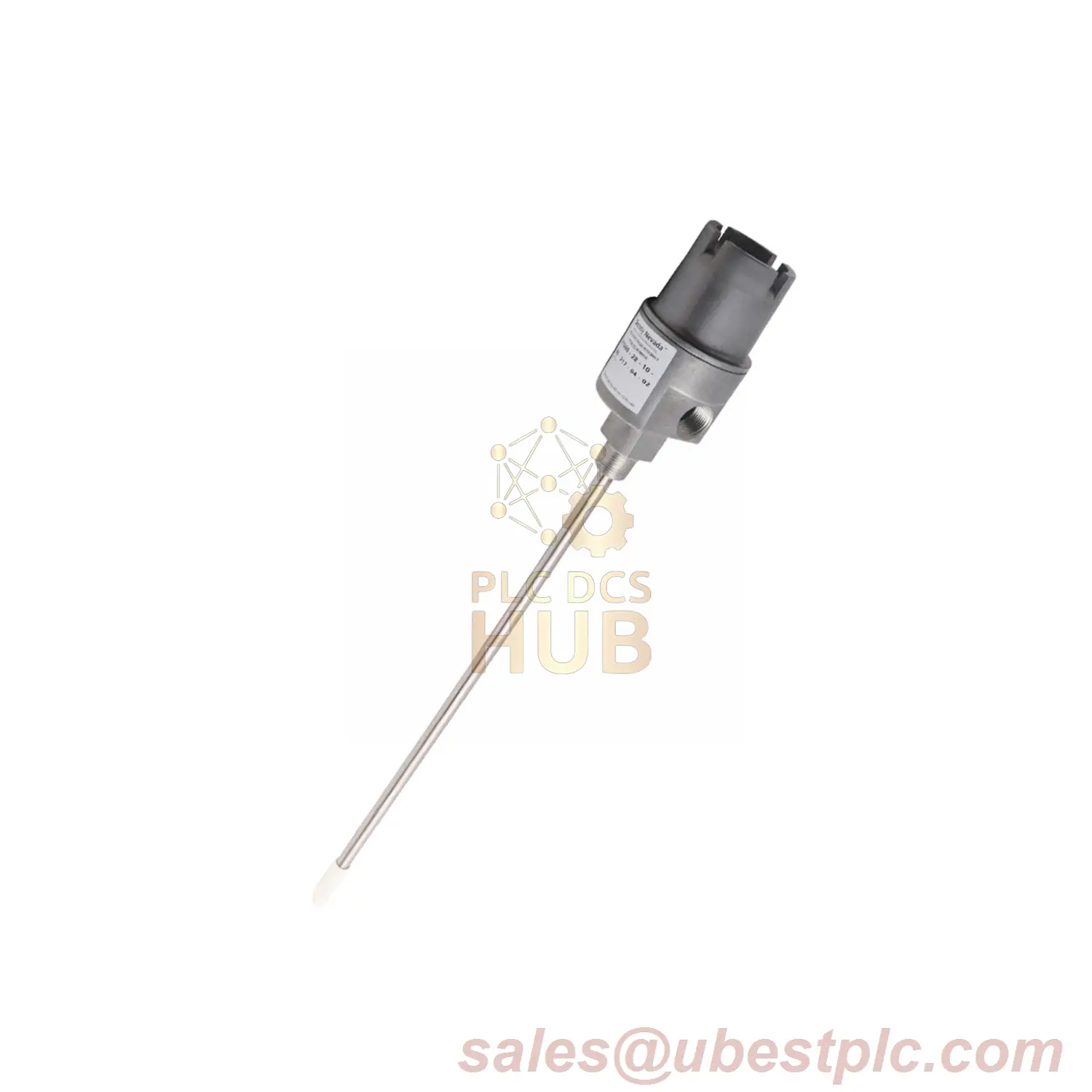

The Bently Nevada 21000-28-10-20-028-04-02 Proximity Probe Housing Assembly is a new, factory-packed solution for hazardous area monitoring. Designed for explosion-proof applications, it features an aluminum body with a 304 stainless steel sleeve.
Technical Data
| Brand | Bently Nevada |
|---|---|
| Model | 21000-28-10-20-028-04-02 |
| Probe Option | 28 (3300 XL 8 mm, hazardous area approved) |
| Cable Length | 10 (1.0 m / 39 in) |
| Standoff Adapter | 20 (2 in) |
| Penetration | 028 (2.8 in) |
| Fitting | 04 (One 3/4-14 NPT plug) |
| Mounting Thread | 02 (3/4-14 NPT) |
| Operating Temp | -50°C to +80°C |
| Weight | 1.1 kg (2.4 lb) |
Installation Guide
- Use 3/4-14 NPT mounting thread.
- Ensure proper sealing with included O-rings.
- Follow CSA/API 670 guidelines for hazardous areas.
Certifications
- CSA Explosion-Proof (Class I/II/III)
- RoHS 2011/65/EU
- API 670 compliant
Package Includes
- Probe housing assembly
- Dome cover & probe sleeve
- O-rings & thread seal
- Conduit fittings (optional)
Warranty
12-month factory warranty included.
Application Examples
- Oil/Gas pipelines: Vibration monitoring in explosive zones.
- Power plants: Turbine shaft alignment.
