Description

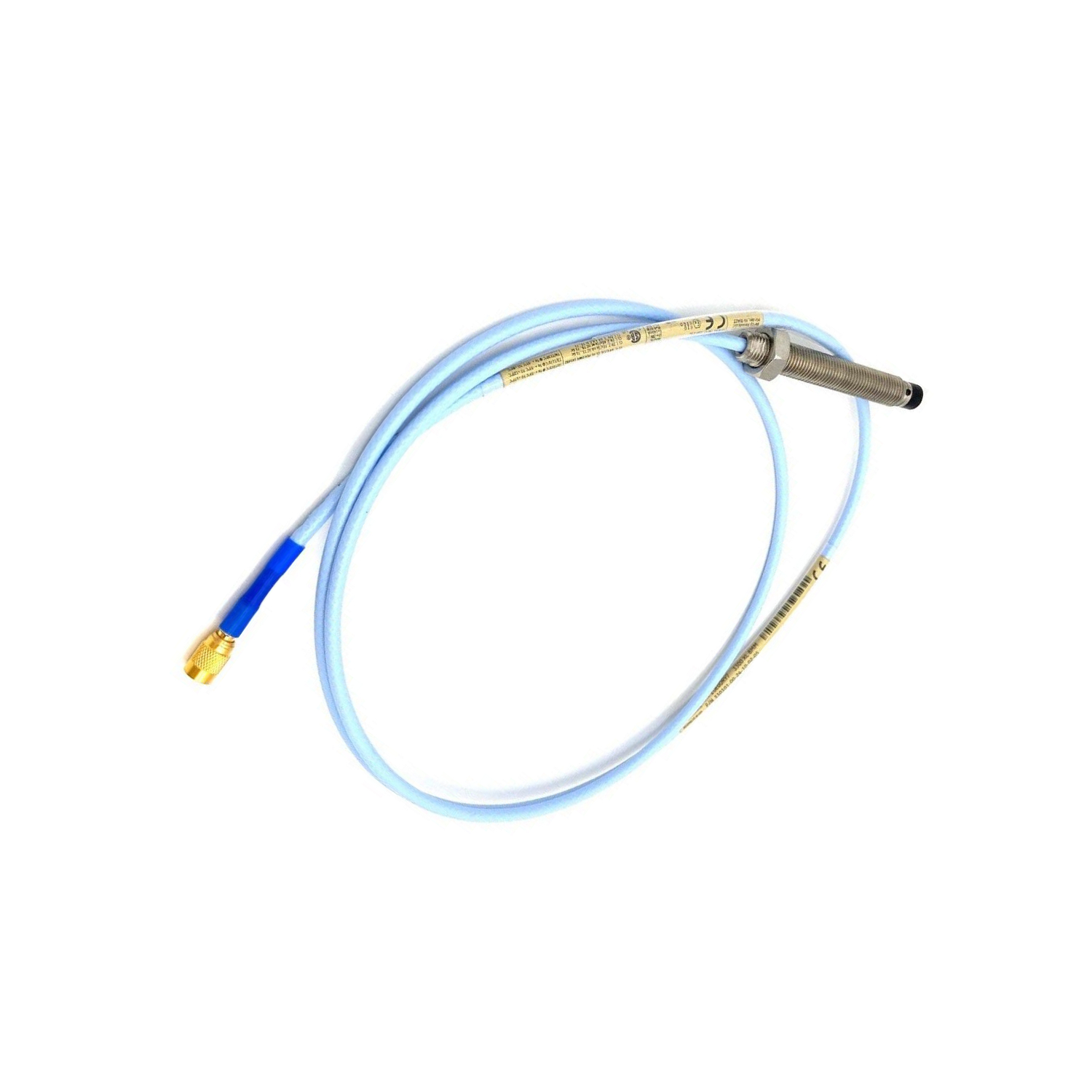

Core Features for 330101-00-10-10-12-05
- ⚡ 8mm Rugged Probe with 3/8-24 UNF Thread
- ⚡ 1m FluidLoc® Cable (Code 10)
- ⚡ ATEX/IECEx/CSA Certified (Code 05)
- ⚡ 7.59Ω ±0.5 Resistance at 1m
Model Code Breakdown for 330101-00-10-10-12-05
| Code | Specification |
|---|---|
| 00 | 0.0in Unthreaded |
| 10 | 1.0in Case Length |
| 10 | 1.0m Cable |
| 12 | Miniature Coaxial ClickLoc |
| 05 | ATEX/IECEx/CSA |
Key Technical Data
| Parameter | Value |
|---|---|
| Linear Range | 2mm (80 mils) |
| Scale Factor | 7.87 V/mm ±5% |
| Temp Range | -52°C to +260°C |
| Cable Capacitance | 69.9 pF/m |
| Pressure Seal | Viton® O-Ring |
Installation Guide
- ???? Max Field Wiring: 305m (1,000ft)
- ???? Optimal Gap Setting: -9 Vdc (1.27mm)
- ???? Withstands 330N Cable Pull Force
Certifications
- ✅ ATEX/IECEx Ex ia IIC T4
- ✅ CSA C22.2 No. 0-10
- ✅ IEC 61207-1 Compliant
Industry Application
Monitors food packaging machinery detecting metal detector belt alignment in 150°C sterilization tunnels.
Package Contents
- ???? 1x 8mm Probe (1in case)
- ???? 1-Year Sanitary Warranty
Contact Support
