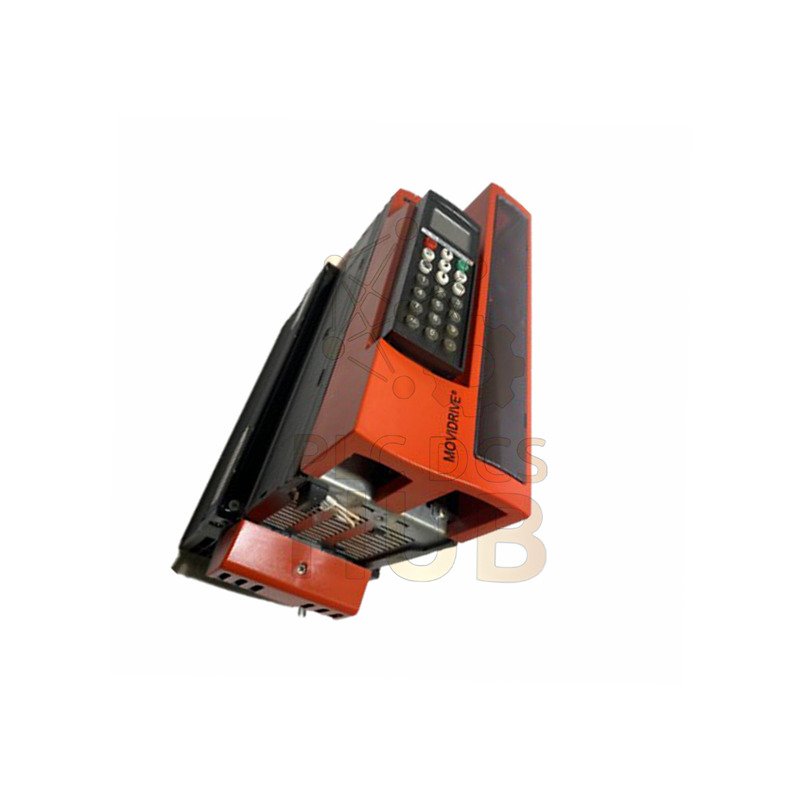

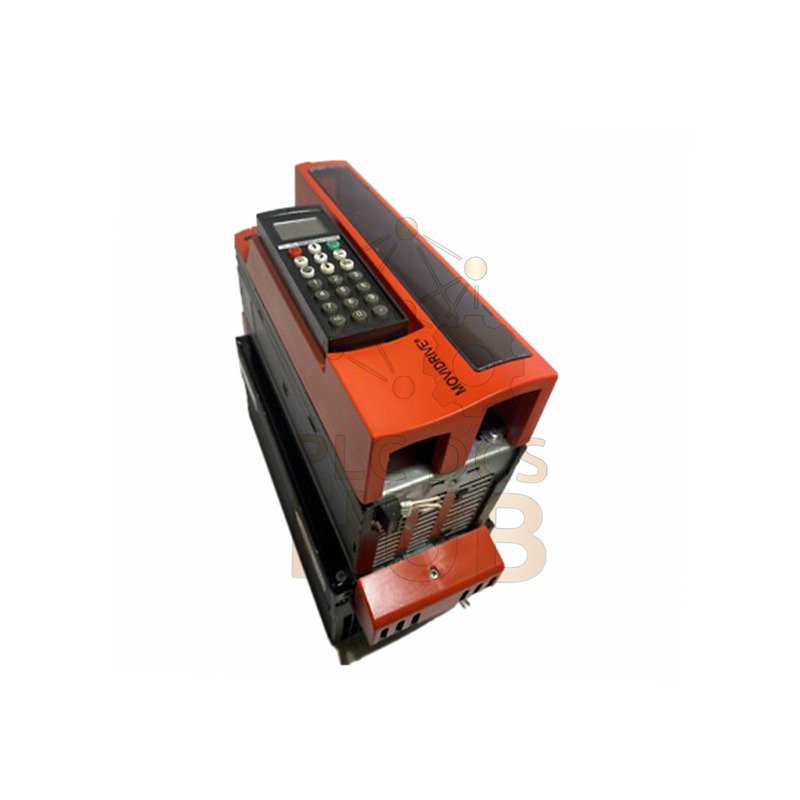

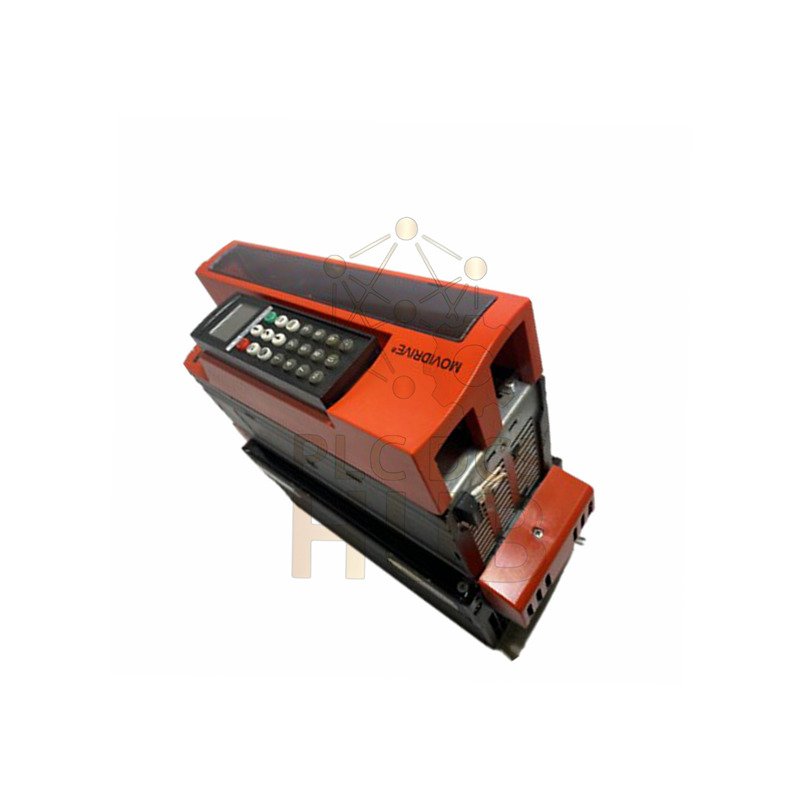

SEW-EURODRIVE MDX61B0110-5A3-4-00 Drive | MOVIAXIS Series High-Power Control

Description

Product Overview

• The SEW-EURODRIVE MDX61B0110-5A3-4-00 is a compact AC drive for fast, smooth motor control.
• It supports 3-phase 380–500 VAC input for stable industrial use.
• The drive handles 15 HP / 11 kW motors with strong overload tolerance.
• It includes an incremental encoder card for precise speed tracking.
• The fieldbus interface enables easy link to automation systems.
• The absolute encoder card improves position accuracy in heavy-duty lines.

Technical Specifications

• Brand: SEW-EURODRIVE
• Model: MDX61B0110-5A3-4-00
• Drive Series: MOVIAXIS Modular AC Drives
• Drive Type: Multi-axis servo/AC inverter
• Electrical Ratings
  • Input: 3 × 380–500 V AC.
  • Output power: 16.8 kVA.
  • Rated current: 24 A.
  • Peak current: up to 200% for short loads.
  • Switching frequency: up to 8 kHz.
  • Control mode: vector, servo, speed, and torque.
• Mechanical Data
  • Size: 135 × 315 × 285 mm.
  • Weight: 6.6 kg.
  • Cooling type: forced-air cooling.
  • Mounting style: panel mount.
• Interfaces & Cards
  • Incremental encoder input.
  • Absolute encoder interface.
  • Fieldbus link for PLC networks.
  • Safe stop support through optional modules.
• Environmental
  • Operating range: -10°C to +50°C.
  • Storage: -25°C to +70°C.
  • Humidity: 5%–85% non-condensing.
  • Vibration resistance for industrial floors.
• Application Highlights
  • Fast start-stop control for conveyors.
  • Smooth handling for packaging lines.
  • Good for lifting, moving, and indexing systems.
  • Reliable for 24/7 factory operation.
• Product Advantages
  • Short cycle times in high-speed machines.
  • Stable torque at low speeds.
  • Easy wiring for multi-axis setups.
  • Strong cooling for long duty cycles.
  • Low noise operation.
  • Fast encoder feedback for smooth motion.
• Warranty & Shipping
  • Warranty: 12 months.
  • Shipping: FedEx, UPS, DHL.

FAQ

• How do I lower heat during long runs?
  • Keep airflow clear and leave space around the drive.
• Can I use the drive with older motors?
  • Yes, if the motor meets the rated voltage and current.
• What helps reduce start jerk?
  • Enable ramp settings and tune encoder feedback.
• How do I avoid fieldbus drops?
  • Use short cables and stable grounding in the system.
• What if the motor stalls at load?
  • Check torque limits and increase current limits if allowed.
