Description

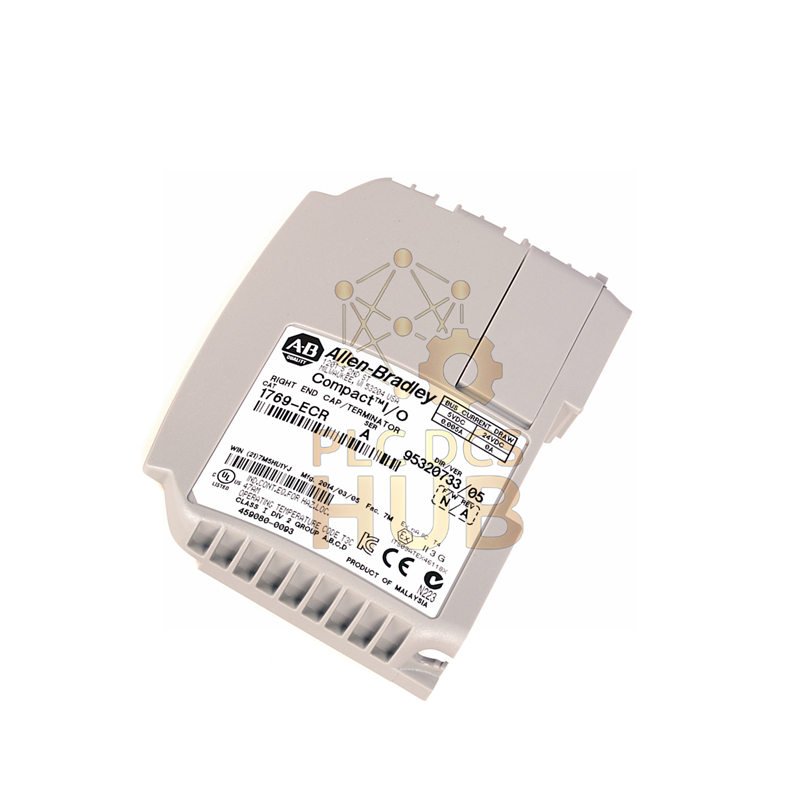

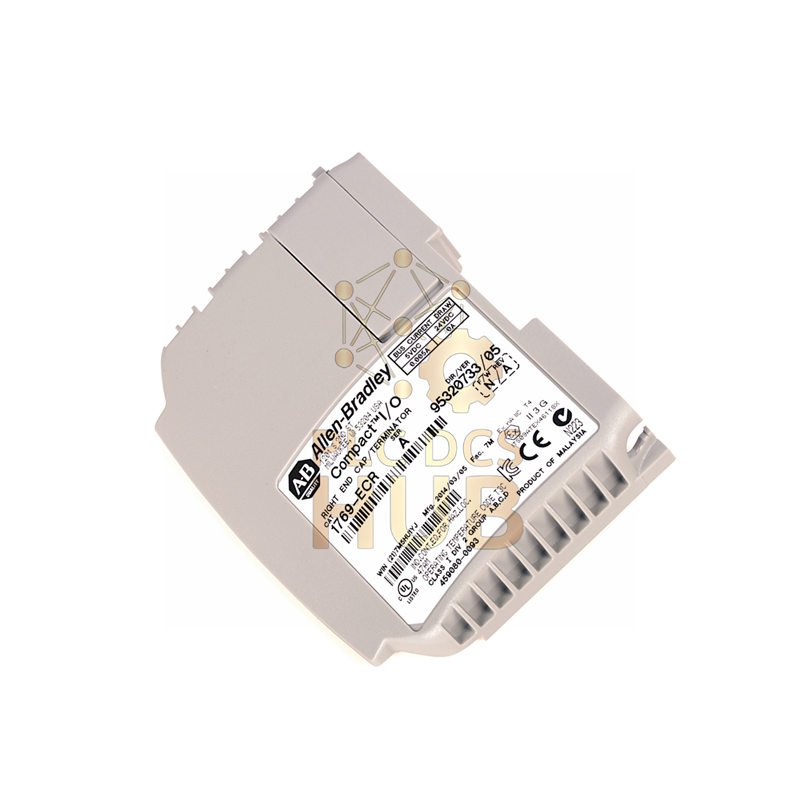

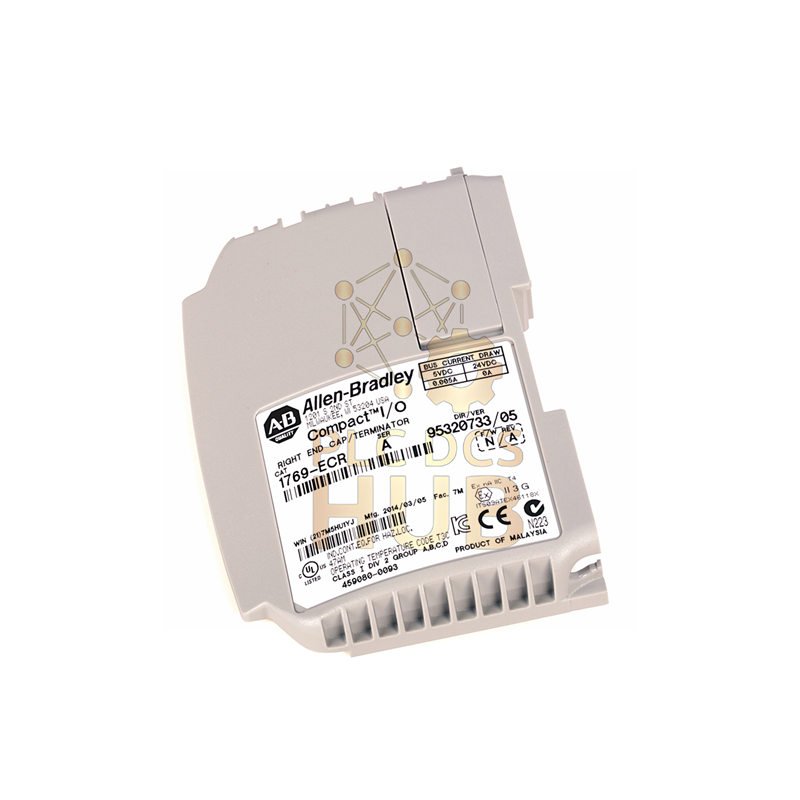

Allen-Bradley 1769-ECR CompactLogix Right End Cap
The Allen-Bradley 1769-ECR is an essential termination module for CompactLogix systems. It marks the end of your I/O assembly and protects the communication bus. This simple but vital component ensures your control system operates correctly.
Technical Specifications
Brand: Allen-Bradley
Model: 1769-ECR
Module Type: Right End Cap/Terminator
Current Draw: 5mA @ 5.1V DC
Operating Altitude: 2000m (6562 ft)
Operating Temperature: 0°C to 60°C (32°F to 140°F)
Storage Temperature: -40°C to 85°C (-40°F to 185°F)
Humidity Rating: 5-95% non-condensing
Vibration Rating: 5g @ 10-500 Hz
Shock Rating: 20g (DIN rail), 30g (panel mount)
Weight: 0.286 lbs (130 g)
Enclosure: Open style
Compatibility & Comparison
The 1769-ECR is required for all CompactLogix systems. Compare with 1769-OV16 output module or see 1794-IRT8 analog module.
Installation Guide
Always install at the far right end of your CompactLogix module series. Ensure power is OFF before installation. Align with guide slots and engage the bus lever to secure.
FAQ
- 1. Where does this module install?
It installs at the very end (right side) of your CompactLogix module series. - 2. Can I install it with power on?
No, always turn power OFF before installing or removing the end cap. - 3. Is it required for all systems?
Yes, every CompactLogix system needs an end cap to terminate the bus. - 4. What happens if I don’t use it?
The system may not work properly without proper bus termination. - 5. Does it work with all CompactLogix modules?
Yes, it is compatible with all 1769 series CompactLogix modules.
Packaging & Warranty
Package Includes: One (1) Allen-Bradley 1769-ECR Right End Cap.
This product includes a 12-month warranty.
