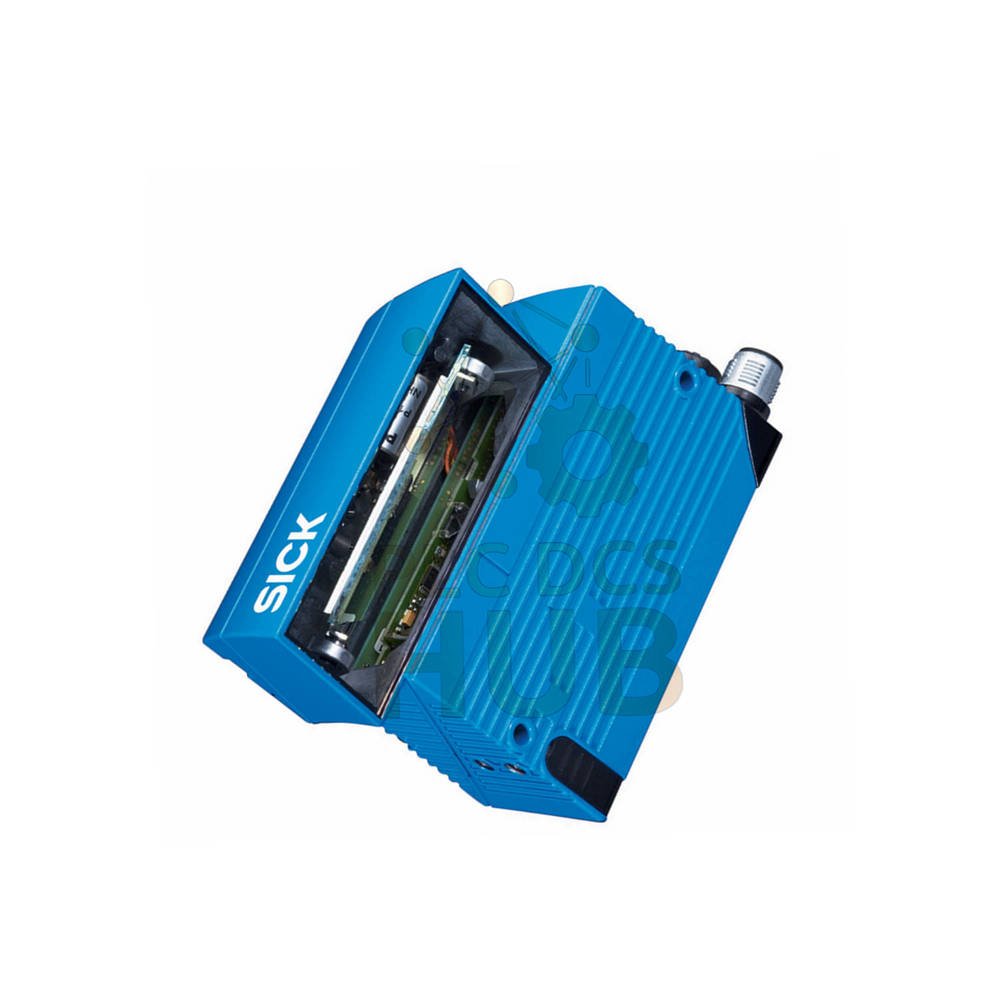

SICK CLV650-6000 Fixed Mount Barcode Scanner – Auto Focus Oscillating

Description

Product Introduction

The SICK CLV650-6000 is a fixed mount barcode scanner. It belongs to the CLV65x series. This scanner reads 1D codes at high speed. The oscillating mirror helps scan larger areas. Auto focus adjusts the reading distance automatically. Use it for factory automation and logistics.

Model Number Breakdown

• CLV650-6000
• CLV650 = Series and model family
• 6000 = Standard density version with cable connection

Key Features

• Oscillating mirror technology – wider scanning field
• Auto focus – adjusts from 125 mm to 1570 mm
• High scan frequency – 600 to 1000 Hz
• Multiple interfaces – PROFINET, Ethernet, CAN, RS-232
• IP65 rated – dust tight and water resistant
• Long MTBF – 100,000 hours reliability

Optical Specifications

• Light source: Laser, visible red, 658 nm
• Laser class: 2 (IEC 60825-1:2014, EN 60825-1:2014)
• Aperture angle: ≤ 50°
• Scanning method: Line scanner
• Scanning frequency: 600 Hz to 1000 Hz
• Code resolution: 0.25 mm to 1 mm
• Reading distance: 125 mm to 1570 mm
• Optical focus: Auto focus

Oscillating Mirror Functions

• Oscillation frequency: 0.5 Hz to 6.25 Hz
• Angle of deflection: –20° to +20°
• Fixed mode: Adjustable position
• Oscillating mode: Variable or fixed amplitude
• One shot mode: Single scan on demand

Readable Codes

• Code structures: 1D codes only
• Supported types: Code 39, Code 128, Code 93, Codabar, GS1-128/EAN 128, UPC/GTIN/EAN, Interleaved 2 of 5, Pharmacode, GS1 DataBar, Telepen, MSI/Plessey
• Print ratio: 2:1 to 3:1
• Bar code print contrast (PCS): ≥ 60%

Reading Performance

• Codes per scan (Standard decoder): 1 to 20
• Codes per scan (SMART decoder): 1 to 6
• Codes per reading interval (auto-discriminating): 1 to 50
• Characters per reading interval: 5,000 (500 for multiplexer in CAN mode)
• Multiple readings: 1 to 99

Interfaces

• PROFINET: Optional via CDF600-2 (Single Port or Dual Port)
• EtherCAT: Optional via CDF600
• Serial: RS-232, RS-422, RS-485 (Host or AUX)
• Serial baud rate: 2400 to 115.2 kBaud (AUX fixed at 57.6 kBaud RS-232)
• CAN: SICK CAN sensor network, 20 kbit/s to 1 Mbit/s
• CANopen: 20 kbit/s to 1 Mbit/s
• PROFIBUS DP: Optional via CDF600-2
• DeviceNet: Optional via CDM + CMF connection module
• Main connection: 1 x 15-pin D-Sub HD male connector (0.9 m cable)

Digital Inputs & Outputs

• Digital inputs: 4 total (“Sensor 1”, “Sensor 2”, plus 2 via CMC600 in CDB620/CDM420)
• Digital outputs: 4 total (“Result 1”, “Result 2”, plus 2 via CMC600 in CDB620/CDM420)
• Reading pulse sources: Digital inputs, serial interface, auto pulse, CAN

Indicators & Controls

• Optical indicators: 6 LEDs (Ready, Result, Laser, Data, CAN, LNK TX) plus 10-LED bar graph for reading rate
• Acoustic indicators: Beeper/buzzer (switchable, configurable for result indication)
• Control elements: 2 buttons (choose and start/stop functions)

Mechanical Specifications

• Housing material: Aluminum die cast
• Housing color: Light blue (RAL 5012)
• Front screen: Glass
• Enclosure rating: IP65 (EN 60529)
• Protection class: III (EN 61140)
• Weight: 320 g (including cable)
• Dimensions (L x W x H): 95 mm x 107 mm x 41 mm
• MTBF: 100,000 hours

Electrical Specifications

• Supply voltage: 18 V DC to 30 V DC
• Power consumption: 9.5 W

Ambient Conditions

• Operating temperature: 0°C to +40°C
• Storage temperature: –20°C to +70°C
• Permissible humidity: 90% (non-condensing)
• Ambient light immunity: 2,000 lx on barcode
• EMC compliance: EN 61000-6-3 (2001-10) / EN 61000-6-2:2005
• Vibration resistance: EN 60068-2-6 (1995)

Software & Configuration

• Configuration software: SOPAS ET
• Memory card: MicroSD card (optional flash card)

Installation Guidelines

• Mount scanner on fixed structure.
• Position at correct reading distance (125-1570 mm).
• Connect power 18-30 V DC only.
• Use external fieldbus module for PROFINET or EtherCAT.
• Keep front glass clean for best read rate.
• Need help? Contact us on WhatsApp +86 158 8020 0923

Maintenance & Care

• Clean front glass with soft cloth.
• Check LED indicators for errors.
• Update firmware via SOPAS ET software.
• No routine calibration needed.
• Replace if read rate drops below acceptable level.

Compatibility

• Works with PROFINET, EtherCAT, PROFIBUS via external modules.
• Connects to Versamax PLC systems via serial or CAN.
• Compatible with SICK fieldbus modules CDF600 and CDF600-2.
• Works with CDB620/CDM420 connection modules.

Packing List

• One SICK CLV650-6000 scanner
• 0.9 m cable with 15-pin D-Sub connector
• Mounting bracket not included
• Software manual available online

Warranty & Shipping

• 12-month warranty against defects
• Ships via FedEx, UPS, or DHL worldwide

Typical Applications & Diagnostic Ability

• Conveyor belt barcode reading
• Warehouse sorting systems
• Package identification in logistics
• Factory automation lines
• Diagnose via 10-LED bar graph for read rate percentage
• Monitor Data and Result LEDs for scan success
• Use SOPAS ET software for detailed diagnostics

Professional FAQ

• What is the difference between CLV650-6000 and other CLV650 models? The -6000 suffix means standard density with cable connection. Other suffixes may have different density or connections.
• Does this scanner read 2D codes like QR codes? No. CLV650 series reads 1D barcodes only. For 2D codes, choose SICK ICR or Lector series.
• Can I use this scanner outdoors? Operating temperature is 0°C to +40°C only. IP65 protects against dust and water, but cold temperatures may cause issues.
• Experience: My scanner misses some codes on fast moving conveyor. Increase scanning frequency to 1000 Hz. Also check that code resolution matches reading distance.
• Selection guide: CLV650-6000 or CLV650-2000 for my application? Pick CLV650-6000 for standard density codes. Pick CLV650-2000 for high density (small) codes requiring closer reading distance.
