SICK CLV650-6120 Scanner | Ethernet Autofocus | High Speed

Description

Product Overview

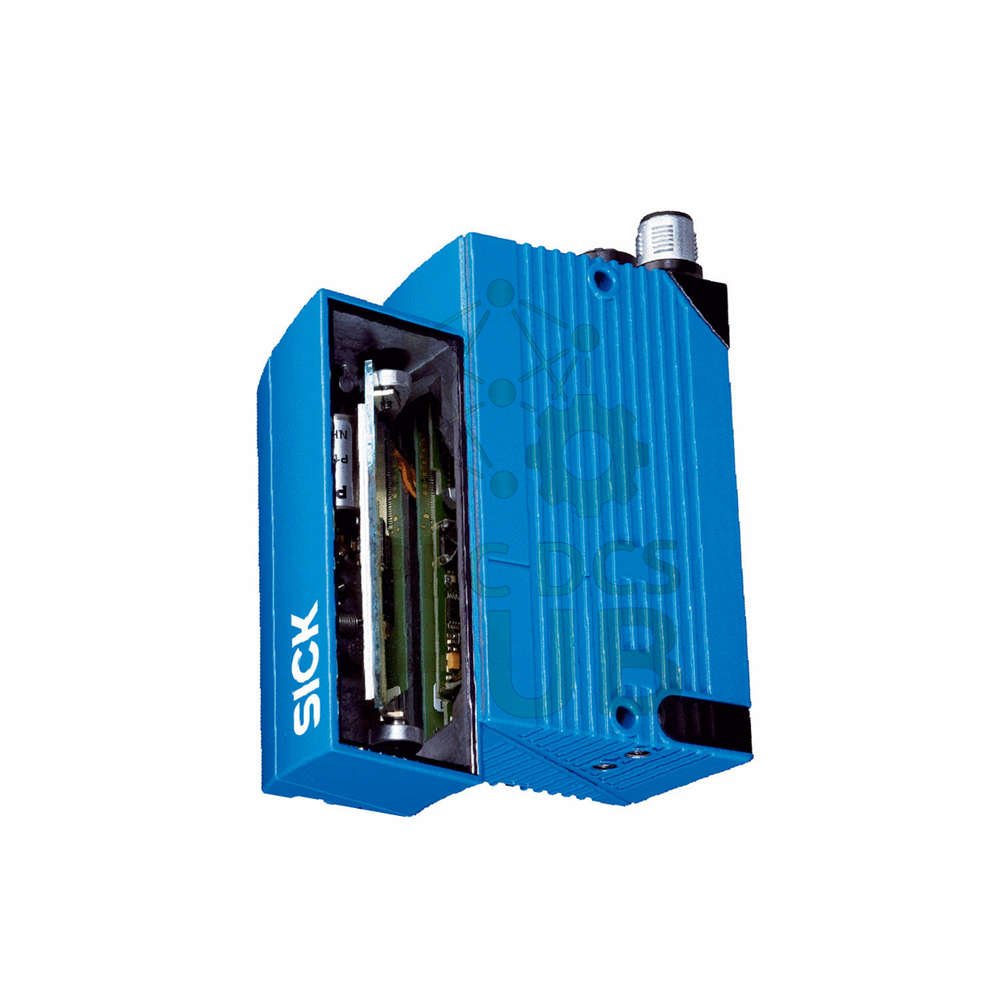

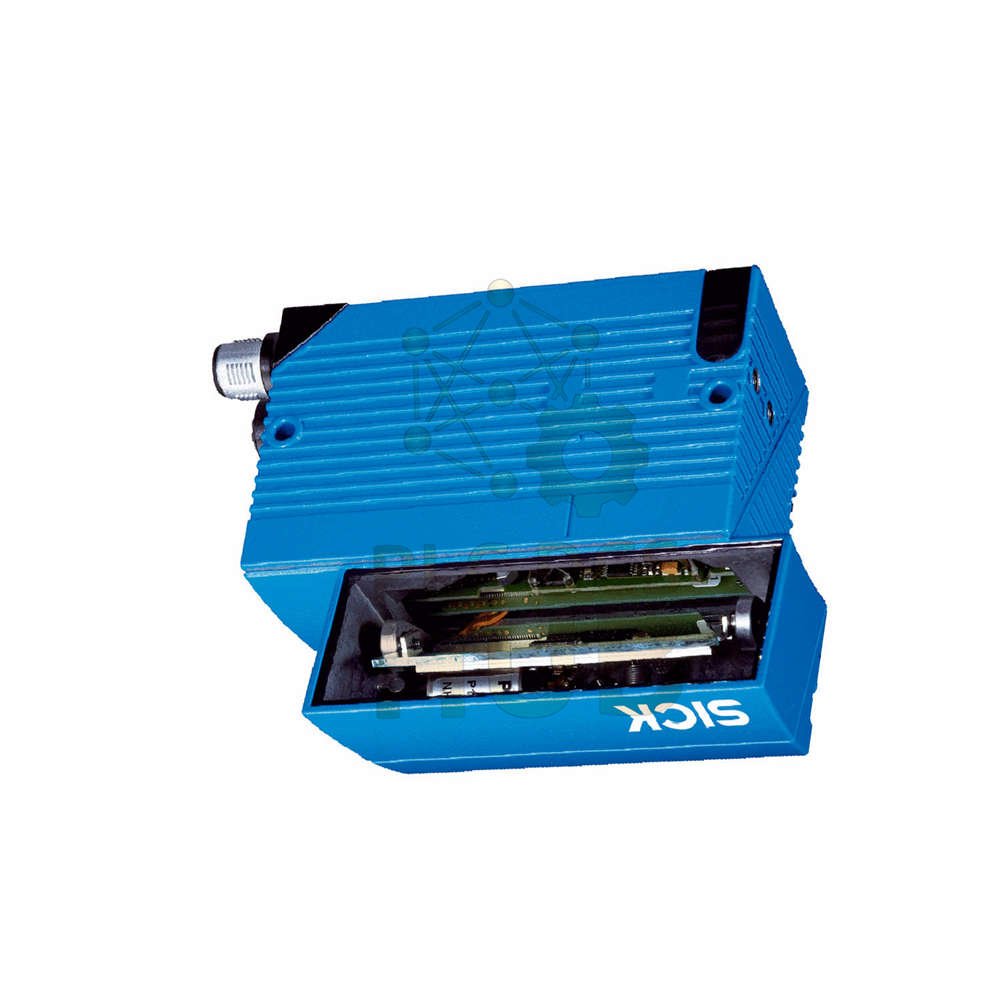

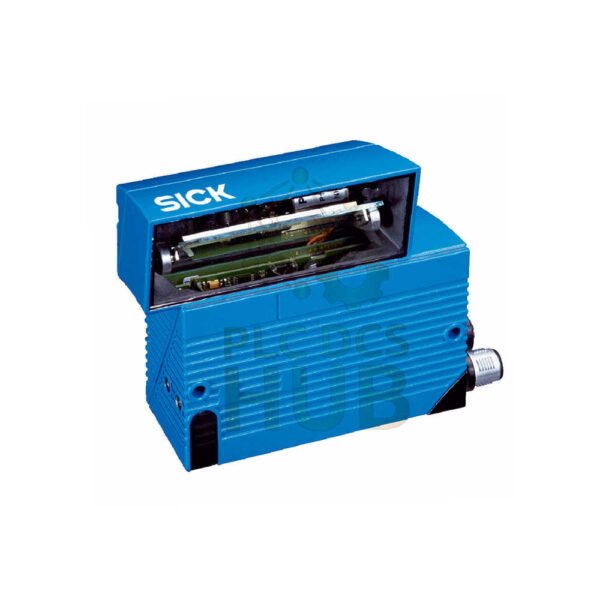

• SICK CLV650-6120 is a fixed mount barcode scanner.
• It uses an oscillating mirror with auto focus.
• The laser is red (658 nm), Class 2, eye-safe.
• Read distance ranges from 125 mm to 1,570 mm.
• Scanning frequency: 600 Hz to 1,000 Hz.
• Code resolution: 0.25 mm to 1 mm.
• Housing: aluminum die cast, IP65 rated.
• Weight: 250 g (without cable).
• Dimensions: 95 mm x 107 mm x 41 mm.

Key Features at a Glance

• Version: Standard Density
• Connection: Ethernet
• Reading field: Oscillating mirror
• Sensor type: Oscillating mirror
• Optical focus: Auto focus
• Light source: Laser, visible red, 658 nm
• Laser class: Class 2 (IEC 60825-1:2014)
• Aperture angle: ≤ 50°
• Oscillating mirror functions: Fixed position, variable or fixed amplitude, one shot
• Oscillation frequency: 0.5 Hz to 6.25 Hz
• Angle of deflection: –20° to +20°

Technical Specifications

• Supply voltage: 18 V DC to 30 V DC
• Power consumption: 9.5 W
• Housing material: Aluminum die cast
• Housing color: Light blue (RAL 5012)
• Window material: Glass
• Enclosure rating: IP65
• Protection class: III (EN 61140)
• MTBF: 100,000 hours
• MTTF (laser diode): 40,000 hours

Barcode Reading Performance

• Readable codes: 1D codes only
• Code types: Code 39, Code 128, Code 93, Codabar, GS1-128, UPC/EAN, Interleaved 2 of 5, Pharmacode, GS1 DataBar, Telepen, MSI/Plessey
• Print process: Label printed codes
• Print ratio: 2:1 to 3:1
• Codes per scan: 1 to 20 (standard), 1 to 6 (SMART)
• Codes per reading interval: 1 to 50
• Characters per reading interval: 5,000
• Multiple readings: 1 to 99

Interfaces & Connectivity

• Ethernet: TCP/IP, 10/100 MBit/s (data and service)
• PROFINET: Single Port (Dual Port via CDF600-2)
• EtherNet/IP: 10/100 MBit/s
• EtherCAT: via CDF600 external module
• Serial: RS-232, RS-422, RS-485 (2,400 to 115.2 kBaud)
• CAN: SICK CAN sensor network (20 kbit/s to 1 Mbit/s)
• CANopen: 20 kbit/s to 1 Mbit/s
• PROFIBUS DP: via CDF600-2 external module
• Digital inputs: 3 (Sensor 1, plus 2 via CMC600)
• Digital outputs: 2 (via CMC600)
• Reading pulse: Digital input, serial, auto pulse, CAN
• Connectors: 2 x M12 (12-pin male, 4-pin female) on swivel

Indicators & Controls

• Optical indicators: 6 LEDs (Ready, Result, Laser, Data, CAN, LNK TX) plus 10-LED bar graph for read rate
• Acoustic indicator: Beeper (can be switched off)
• Control buttons: 2 buttons (select and start/stop)
• Configuration software: SOPAS ET
• Memory card: MicroSD (optional)

Environmental Ratings

• EMC: EN 61000-6-3 / EN 61000-6-2
• Vibration resistance: EN 60068-2-6
• Shock resistance: EN 60068-2-27
• Operating temperature: 0 °C to +40 °C
• Storage temperature: –20 °C to +70 °C
• Humidity: 90% non-condensing
• Ambient light immunity: 2,000 lx on barcode
• Print contrast (PCS): ≥ 60%

Mounting & Installation

• Use M12 connectors for power and data.
• Swivel connector allows flexible cable routing.
• Mount in any orientation.
• Keep reading distance between 125 mm and 1,570 mm.
• Aluminum housing withstands tough industrial use.

Configuration & Maintenance

• Use SOPAS ET software for easy setup.
• Auto focus adjusts to different code sizes.
• Oscillating mirror can be fixed or moving.
• LED bar graph shows read rate live.
• Beeper confirms good reads (can be turned off).

Compatibility

• Works with all common 1D barcode labels.
• Connects to PLCs via Ethernet, PROFINET, or EtherNet/IP.
• Also integrates with Versamax control systems: https://www.ubestplc.com/collections/ge-versamax
• Optional fieldbus modules add PROFIBUS DP or EtherCAT.

Package Contents

• 1 x SICK CLV650-6120 barcode scanner
• Quick start guide
• M12 connectors (sold separately for cables)
• No cables included – order separately

Warranty & Shipping

• 12 months warranty from shipment date.
• Covers factory defects and material faults.
• Ship worldwide via FedEx, UPS, or DHL.
• Tracking number sent within 24 hours.

Typical Applications

• Warehouse conveyor belt scanning
• Package sorting centers
• Automated production lines
• Retail distribution hubs
• Pharmaceutical label verification

Diagnostic Capabilities

• LED bar graph shows real-time read rate percentage.
• SOPAS ET software provides detailed logs.
• Ready and Result LEDs show operational status.
• CAN network allows remote diagnostics.

Professional FAQ

• Does this scanner read 2D codes like QR or Data Matrix?
• No. CLV650-6120 reads only 1D barcodes.
• Can I use it outdoors in direct sunlight?
• Limited. Ambient light immunity is 2,000 lx. Best for indoor use.
• Experience: Auto focus vs fixed focus – which is better?
• Auto focus is better for mixed distances. Fixed focus is cheaper but less flexible.
• Buying guide: How to choose between Ethernet and serial version?
• Choose Ethernet (like CLV650-6120) for fast data and PLC integration. Choose serial for simple point-to-point.
• Buying guide: Do I need external fieldbus module?
• Only for PROFIBUS DP or EtherCAT. This model has Ethernet, PROFINET, and EtherNet/IP built in.
