SICK NANS3-CAAZ30AN1 nanoScan3 – Type 3 SIL 2 Ethernet Safety Scanner

Description

Product Summary

The SICK NANS3-CAAZ30AN1 is a nanoScan3 safety laser scanner. It is Type 3 with SIL 2 rating. Use it indoors for machine protection. This model is the Pro I/O version. It has no system plug. Ethernet gives you measured data.

Key Safety Ratings

• Type: 3 (IEC 61496)
• SIL: 2 (IEC 61508)
• Category: 3 (EN ISO 13849)
• PL: d (EN ISO 13849)
• PFHD: 8.0 x 10⁻⁸
• Mission Time (TM): 20 years
• Safe State on Fault: At least one OSSD turns OFF

Technical Data Tree

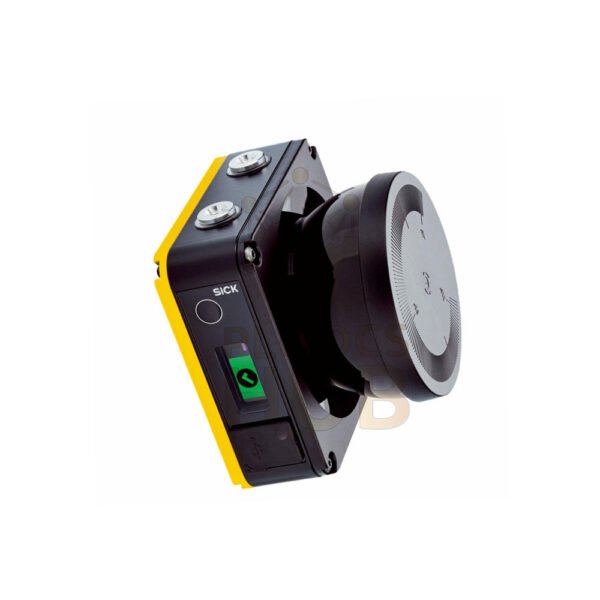

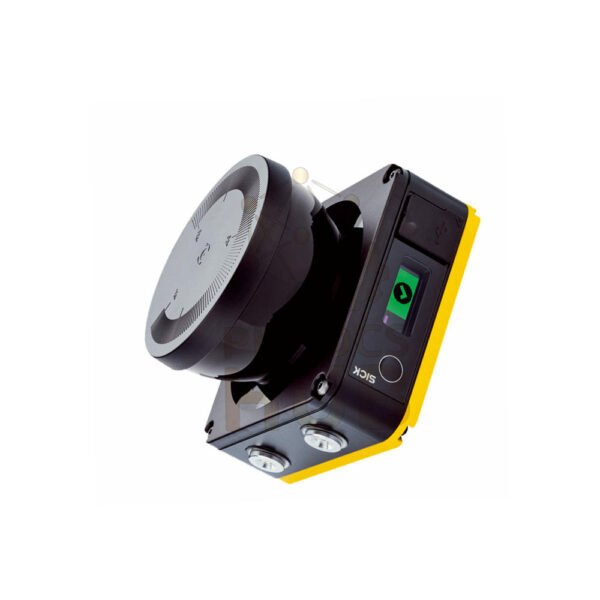

• SICK NANS3-CAAZ30AN1 – nanoScan3 Pro I/O
  • Field Ranges
    • Protective field: 3 meters
    • Warning field: 10 meters
    • Distance measuring: 40 meters
  • Scanning Details
    • Angle: 275°
    • Angular resolution: 0.17°
    • Response time: 70 ms
    • Protective field supplement: 65 mm
  • Configurable Resolution (mm)
    • 20, 30, 40, 50, 60, 70, 150, 200
  • Fields & Monitoring
    • Simultaneous fields: ≤ 8
    • Total fields: 128
    • Monitoring cases: 128
  • Interfaces
    • USB 2.0 (micro) for config
    • Ethernet for data output
    • 4 universal I/Os
    • 2 OSSD pairs
    • 8 universal inputs
    • 4 dynamic switching signals
    • 6 static control inputs
  • Power & Mechanics
    • 24V DC (16.8 to 30V)
    • Power: 3.9 W typical
    • Size: 106.6 x 80 x 117.5 mm
    • Weight: 0.67 kg
    • Housing: Aluminum, yellow RAL 1021 + black RAL 9005

Built-in Functions

• Restart interlock
• External device monitoring (EDM)
• Multiple sampling
• Monitoring case switching
• Simultaneous monitoring
• Static protective field switching
• Dynamic protective field switching
• Safe contour detection
• Contour as reference
• Integrated configuration memory

Environmental & Durability

• Enclosure: IP65
• Ambient light: ≤ 40 klx
• Operating temp: -10°C to +50°C
• Storage temp: -25°C to +70°C
• Vibration & shock: Class 5M1 (IEC 60721-3-5)
• Continuous shock: 50 m/s² (11 ms) and 100 m/s² (16 ms)

Laser & Optics

• Pulsed laser diode (905 nm)
• Laser Class 1 – safe for eyes
• Detectable remission: 1.8% to several 1000%
• Optics cover: Polycarbonate

Professional FAQ

• Question: Can I use this scanner outdoors?
  Answer: No. The NANS3-CAAZ30AN1 is for indoor use only.
• Question: What software do I need to set it up?
  Answer: Use SICK Safety Designer on a PC with USB 2.0 connection.
• Question: How many fields can it watch at the same time?
  Answer: Up to 8 fields simultaneously with ≤ 40 klx ambient light.
• Question: Does it come with a system plug?
  Answer: No. This Pro I/O model has no system plug. Buy separately.
• Question: What is the warranty and shipping method?
  Answer: 12 months warranty. Ships via FedEx, UPS, or DHL with tracking.

Buying Guide & Experience Tips

• Check your machine’s stopping time. Set the protective field larger than that.
• Use the graphic display for quick on-site checks. No PC needed for basic status.
• Keep the polycarbonate cover clean. Dust reduces detection range.
• The 275° scan angle covers wide areas. Mount it in a corner for best view.
• Experienced users: save configurations to the internal memory. Swap units fast.
• Common mistake: placing near strong flickering lights (>40 klx). Causes false trips.
• Tip: Use Ethernet for real-time measured data. Helps with machine analytics.
• For Versamax PLC integration, connect OSSD outputs to safety inputs.

Display & Diagnostics

• Graphic color display shows field status and errors.
• LED indicators for power and OSSD states.
• USB port gives full diagnostic data via Safety Designer.
• Ethernet output streams distance and contour data.

Shipping & Support

• Express shipping: FedEx, UPS, DHL
• Tracking number sent within 24 hours.
• Technical help: contact SICK support or your local distributor.
